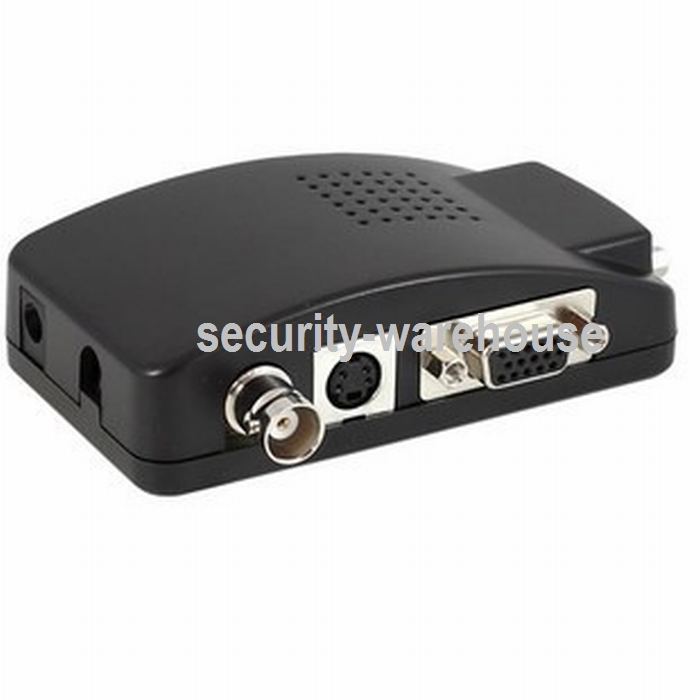

Turn AV VGA video interface converter PC turned AV video signal interface converter BNC interface
Turn the AV VGA video interface converter PC turned AV video signal interface converter BNC interface
This product has no valid combination.
BNC turn VGA BNC monitoring VGA display
1: the product function
The input interface: 1 x (BNC), 1 xs - Video, 1 xvga
Xvga output interface: 1
2Output resolution:
800 x600 @ 60 hz, 800 x600 @ 75 hz, 1024 x768 @ 60 hz, 1280 x1024 @ 60 hz, 1440 x900 @ 60 hz, 1680 x1050 @ 60 hz, 1920 x1080 @ 60 hz,1920 x 60 @,1920 x @ 60 hz
3: the input signal format
BNC and S - Video input, automatic identification of PAL and NTSC
VGA input: BYPASS
Will monitor the BNC interface to display on VGA display.
1: input support PAL, NTSC, SECAM formats
2: can be realized from 800 x 800 x600 to VGA switching output resolution
3: brightness, contrast, sharpness, color, hue, horizontal and vertical position is adjustable
4: bitmap OSD display
5: support freezing function
6: digital comb filter, the bright color perfect separation
And D motion compensation
8: standardized signal output design, undistorted restore natural horizon
9: industrial product design, 24 hours a day, work stable and reliable
10: small volume, convenient to put (size: 110 x56x36mm)
11: DC 5 v power supply
2: can be realized from 800 x 800 x600 to VGA switching output resolution
3: brightness, contrast, sharpness, color, hue, horizontal and vertical position is adjustable
4: bitmap OSD display
5: support freezing function
6: digital comb filter, the bright color perfect separation
And D motion compensation
8: standardized signal output design, undistorted restore natural horizon
9: industrial product design, 24 hours a day, work stable and reliable
10: small volume, convenient to put (size: 110 x56x36mm)
11: DC 5 v power supply
【Interface specification】
|
The name According to
|
said Ming
|
|
VGA Out
|
VGA output by computer monitors
|
|
AV (CVBS) In
|
Answer the video source (e.g., DVD, camera)
|
|
S - VIDEO In
|
S terminal signal source, VCR, DVD player, etc
|
|
VGA In
|
The computer host graphics VGA output
|
|
DC 5 v
|
5 v / 1 a power adapter
|
|
The LED
|
|
【Product accessories】
|
The name of the accessories
|
The number of
|
note
|
|
Turn the AV VGA host
|
1
|
--
|
|
DC 5 v power adapter
|
1
|
--
|
|
S - VIDEO line
|
Article 1.
|
--
|
|
Product manual
|
1
|
en
|
|
packaging
|
1
|
|
