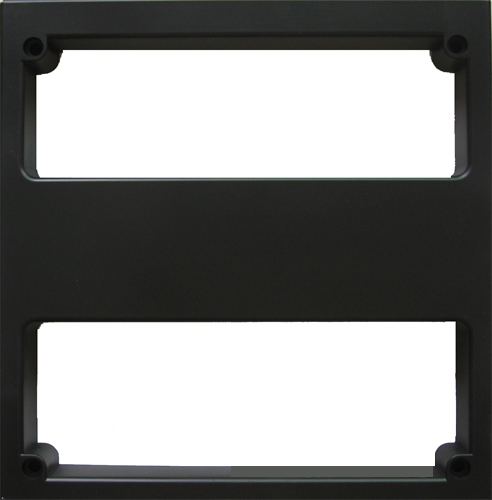

In low-frequency ID 232 remote reader parking Private Day font reader Z232
SKU:
1729817330
In the low-frequency ID / 232 remote reader / parking Private Day font reader [ Z232 ]
Manufacturers , welcome to wholesale , price negotiable
Manufacturers , welcome to wholesale , price negotiable
Model : Z232
|
[Detail ]
|
|
ID remote reader (125kHz Long-Range Card Reader) the introduction of international advanced technology , it has a new product processing technology , completely independent intellectual property rights , low power consumption , high sensitivity , reading distance, high-performance, low price , interference, stability, mainly used in smart parking , access channel management , access control and other industries, operating frequency standard 125kHz, using a non-contact radio frequency EM format ID card .
This reader is applied to 125kHz frequency, completely independent intellectual property design, high performance , support for EM-ID card , the card can be read from the ordinary EM 500 mm or more, if you use our company to provide long-distance thick card , the maximum sensing distance more than 1100 mm ( test standard : in a relatively small interference environment and use the recommended linear power supply, and our long-range recommended by thick card test ) , in addition to its full range of products to increase the auto-tuning and digital filtering , the effective performance increased sensing range and reduced noise vibration and interference. It Wiegand data output formats (Wiegand) W26, Wiegand (Wiegand) W34, standard RS485, RS485 non-standard format V2 or V4 and standard RS232-A or B, as well as custom interfaces. In addition, its unique anti-jamming software system that allows both the reader very close to the time, can still maintain the basic working conditions, does not significantly shorten the distance . Another reader using environmentally friendly epoxy sealed completely comply with UL interference harsh environment can be reduced to a minimum, and maximum compliance with the requirements of environmental protection products .
Technical Parameters 1, the operating frequency of the standard 125KHz; 2, the RF card : EM -compatible ID card ; 3 , complete interface : RS232 (RS232 Data Format : 9600, N, 8,1) 4 , the response rate: less than 0.2s; 5 , time intervals : \u003c 0.5 seconds ; 5 , Power Specifications : + DC 12 ~ 15V ( Recommend using a linear 12 ~ 15VDC and not less than the rated current of 1A linear regulated power supply ) ; 6 Current : 70mA; 7 , sensing distance : up to 100CM! ( Depending on the impact of smart chip card ) ; 8 , Working temperature: -25 degrees - +75 degrees ; 9 , Humidity : 10-90 % ; 10 built-in antenna : Yes; 11 , the communication distance : 100 meters ; 12 , transmission: real-time ; 13 , the product features : low power consumption , high sensitivity , reading distance, strong performance, low price , interference, stability 14 , Case Material : PVC and spray - \u003e Internal groutability black resin ( which can effectively waterproof ) 15 , size : D101: length 230mm, width 230mm, height 35mm 16 , use: smart parking , hospitals, banks , libraries , factories and other means of access management , also including railway rolling road, vehicle access statistics and management ; |
