Probe hidden camera video surveillance Cat door mirror camera 2 8mm wide-angle lens hot
Probe hidden camera video surveillance Cat's door mirror camera 2.8mm wide-angle lens hot
This product has no valid combination.
Product Features
◆ Use 1/3 \"CMOS chip
◆ 60 ° Viewing angle shooting
◆ Door Cat's standard aperture design for most of the models security door, easy to install
◆ automatic electronic gain, high signal to noise ratio ;
[Size ]
Length: 1.5 m ( including length )

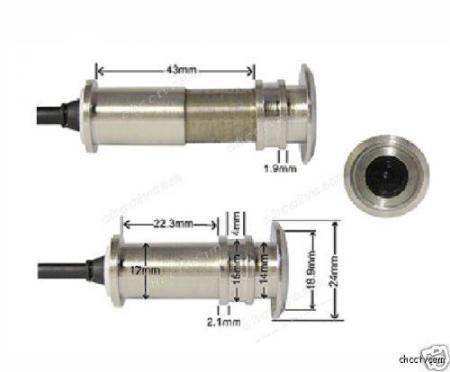

Lens : length 42mm × 24mm × height 24mm width
|
Product Name |
Cat's mini surveillance camera |
|
Specification |
701 |
|
Imaging Device |
1/3 \"CMOS |
|
Horizontal resolution |
380TVL |
|
Image Format |
PAL / NTSC |
|
Effective Pixels |
PAL: 512 ( horizontal ) × 582 ( vertical ) |
|
Scanning Frequency |
PAL: 15.7343KHz Vertical : 50Hz |
|
Illumination |
1 LUX |
|
Gamma correction |
0.45 |
|
Video Output |
1Vp-p/75Ω |
|
Electronic Shutter |
1 /50 - 1/100.000 ( s ) |
|
SNR |
Greater than 45.6dB |
|
Lens Specifications |
2.8mm |
|
Viewing Angle |
60 ° |
|
Work Environment |
-20 ° - 55 ° |
|
Voltage and current |
DC12V/200mA |
|
Size |
Length 42mm × 24mm × height 24mm width |
|
Weight |
About 200g |
[Packing List】

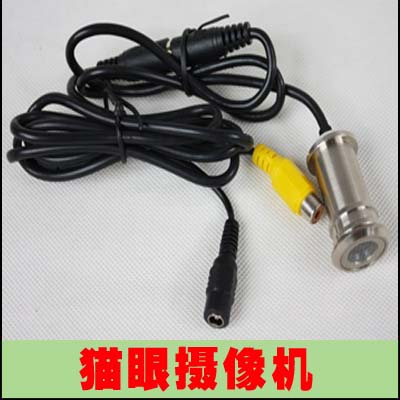

1 cat's-eye camera 1
2 adapter cable 1
3 Box 1
4 Manual 1
