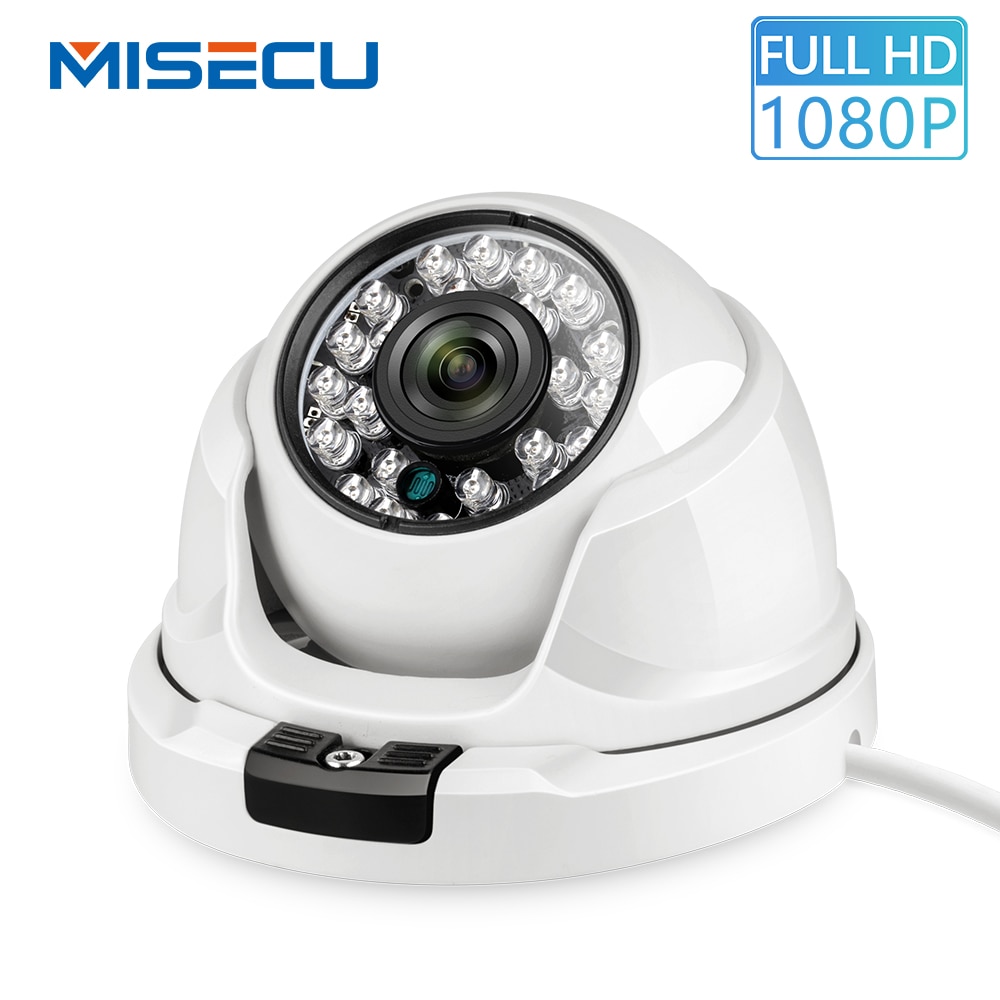

MISECU 2.8mm wide Metal IP Camera 1080P 960P 720P Vandalproof Onvif P2P Motion Detection RTSP 48V
MISECU 2.8mm wide Metal IP Camera 1080P 960P 720P Vandalproof Onvif P2P Motion Detection RTSP 48V POE Surveillance CCTV Outdoor...
Metal Shell
The installation is convenient and durable .The buttom four screw holes guiding camera ，without support ，simple and cost savings.
IP67 Waterproof
working under -20 degree to 50 degree

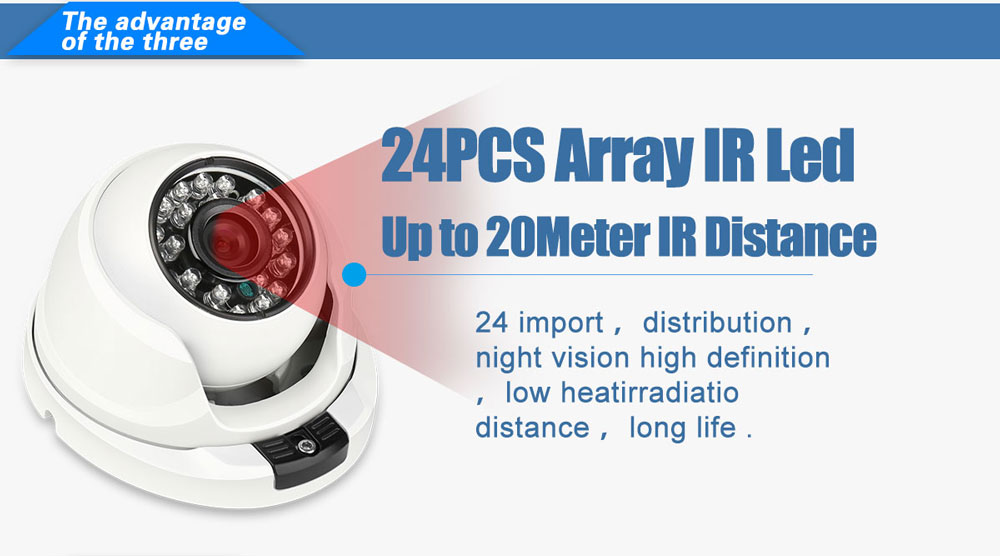

24PCS Array IR Led
Up to 20 meter IR distance,24 import ，distribution ，night vision high definition ，low heat，irradiatio distance ，long life .
IR Cut Filter Built-in
Auto switch for better video image
HD Lens
Six light blue crystal and optical lens,night vision effect ,more distance 15 meters long.
Motion Dection&FTP Photo
Email Alert
Capture photos automatically and email to you when cameras find moving object
Supports Onvif
work with third part onvif NVR and software
Supports P2P Multi Platform Viewing
APP/IE Browser/CMS software
Supports Remote Online
viewing and playback
High Quality 2MP Lens
*Note*:720P/960P is H.264,1080P is H.265
1MP:
1.3MP:
2.0MP:
Package Contents:
1*720p IP Camera /1*960p IP Camera/1*1080p IP Camera
1* CD
Note : DC 12V / 48V PoE Version Optional
DC 12V Version Can JUST work with DC 12V 1A-2A Power Supply ( NOT included )
48V PoE Version Can just work with 48V POE injector or Switch (NOT included )
WARM TIPS: Power DC 12V 1A or 2A or PoE switch ( NOT INCLUDED )
click below picture below to order power supply:
FAQ :
Q:What’s the default ip address of the camera ?
F: 192.168.1.10 Username : admin Password : null ( empty ) !
Q: Does the camera supports Motion Detect,FTP,Email alarm, RTSP and so on ?
F: Yes ! All the IP Cameras we are selling supports these functions .
1) Please Setup the motion detection in the CMS software .
2) We suggest the Sever-U and FileZilla FTP Server to upload the video or image.
3) For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,try Gmail please ) .
4) ,RTSP URL for VLC media Player :
rtsp://$(IP):$(PORT)/user=$(USER)&password=$(PWD)&channel=$(Channel)&stream=$(Stream).sdp?real_stream
Example : rtsp://10.6.10.25:554/user=admin&password=&channel=1&stream=0.sdp?real_stream
F: What’re the ports information of the cameras ?
Q : ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567
F:Does the camera support IE ,Chrome ,Firefox and so on ?
Q: Since the plug-in problem ,for website interface IP address URL,ONLY IE supports Multi Language . Chrome,Safari just support Chinese .
For cloud server XMEYE.NET ,it supports multi language
Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !
For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX
You may need:
How to choose lens?
