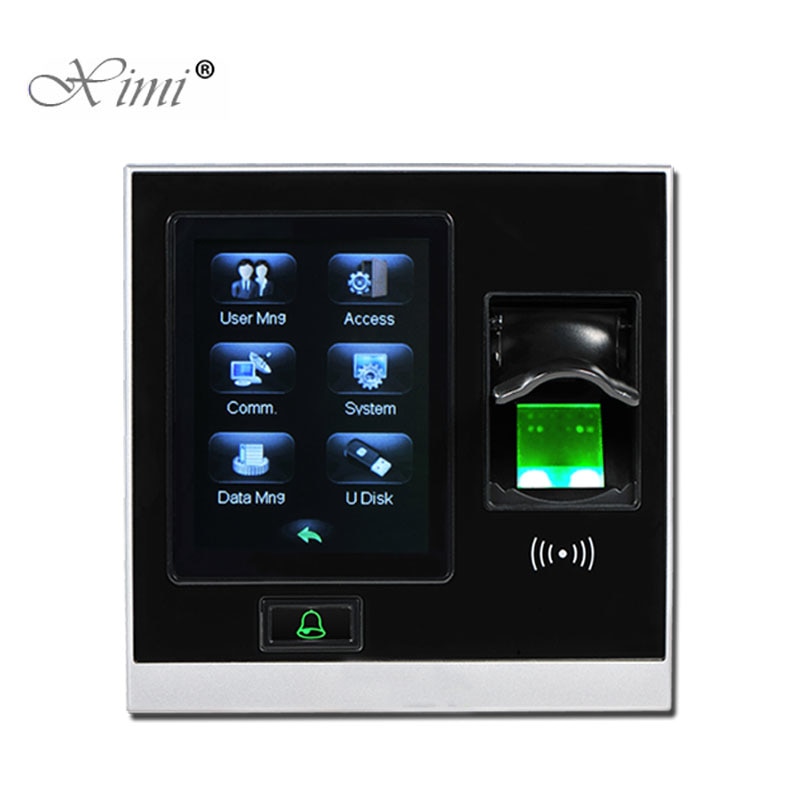

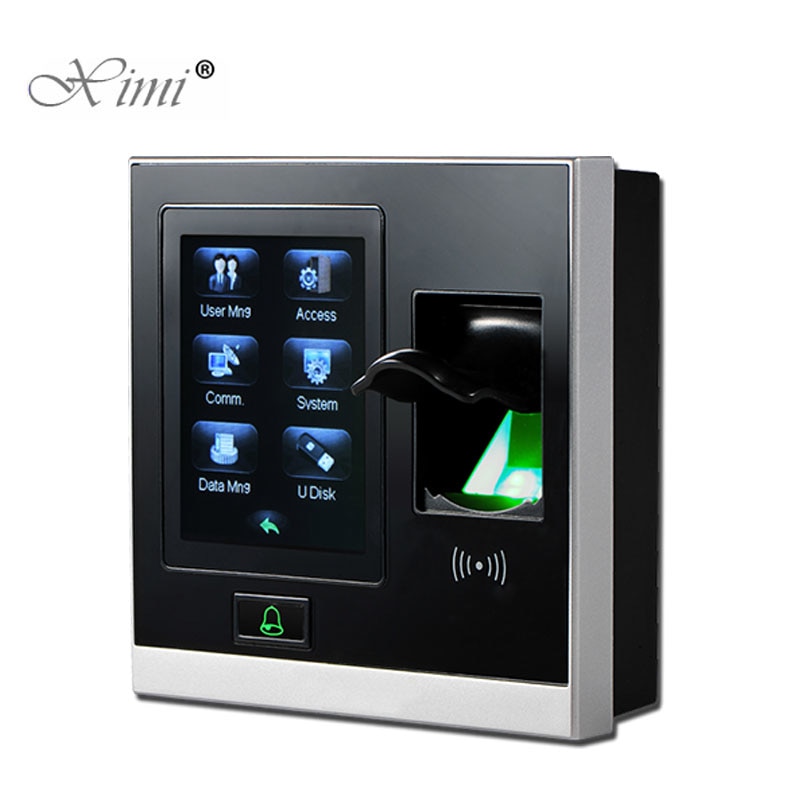

New Arrival ZK SF400 TCP/IP USB Biometric Fingerprint Access Control And Time Attendance Standalone
New Arrival ZK SF400 TCP/IP USB Biometric Fingerprint Access Control And Time Attendance Standalone Door Access Control System ...
Products:
Features:
• 2.8-inch touch screen, color display with graphical UI for easy operation
• Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
• Prompt audio acceptance or rejection signals for valid or invalid fingers
• Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
• TCP/IP or RS485 communication for various networking environments
• Supports USB flash drive for offline data management
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Up to 15 multi-verification methods to enhance security level
• Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
• Duress Alarm offers effective protection against duress by threats
• Tamper proof switch and multiple alarm outputs
• Multi-languages display available on request
Specifications:
|
Model
|
SF400 |
|
Software
|
2.8 inch resistive touch screen
|
| Fingerprint Sensor | ZK Optical Sensor (500DPI) |
| Algorithm Version | ZKFinger V10.0 |
| Communiction | TCP/IP,RS485,USB Host |
|
Fingerprint Capacity
|
1,500
|
|
Card Capacity
|
5,000
|
|
Log Capacity
|
80,000
|
|
RF Card
|
EM/MF(optional)
|
|
Authentication Method
|
FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF
|
|

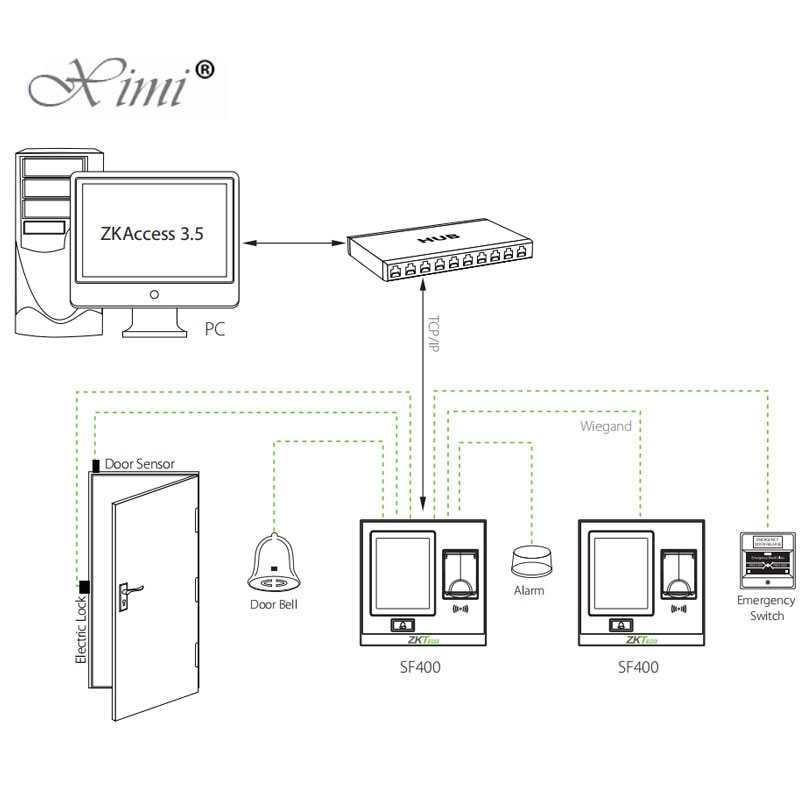

Access Control Interface
|
Electric lock, Door sensor, Alarm, Exit button,Door bell
|
| Software | ZKAccess3.5 |
|
Wiegand Signal
|
Wiegand input&output
|
| Aux Input | 1ea for linkage function |
|
Power Supply
|
12VDC 3A
|
|
Operating Temperature
|
0~ 45
|
|

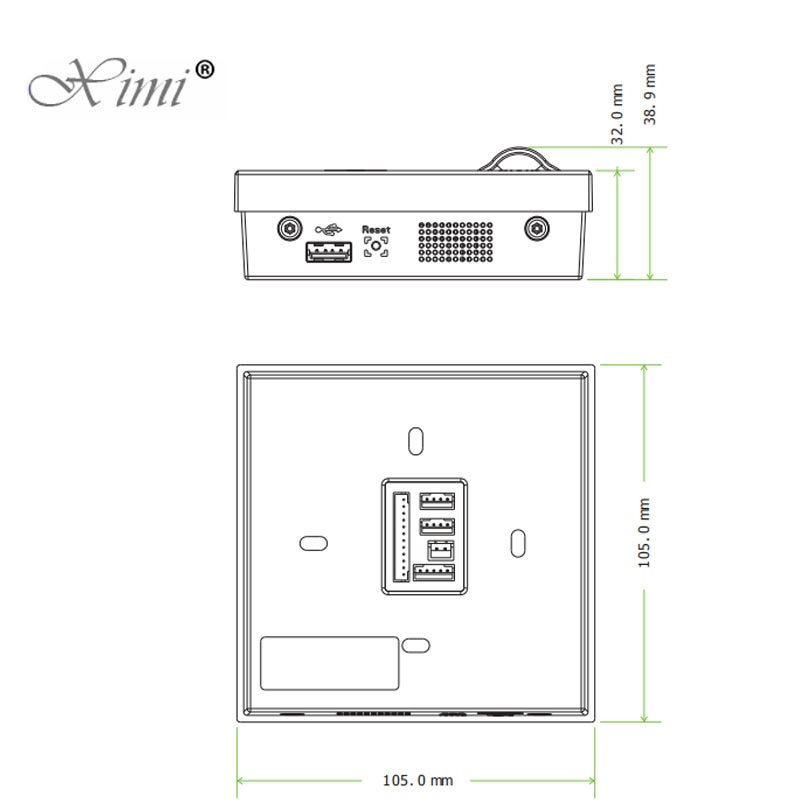

Dimensions (W×H×D)
|
105mm×105mm×32mm |
