Product overview

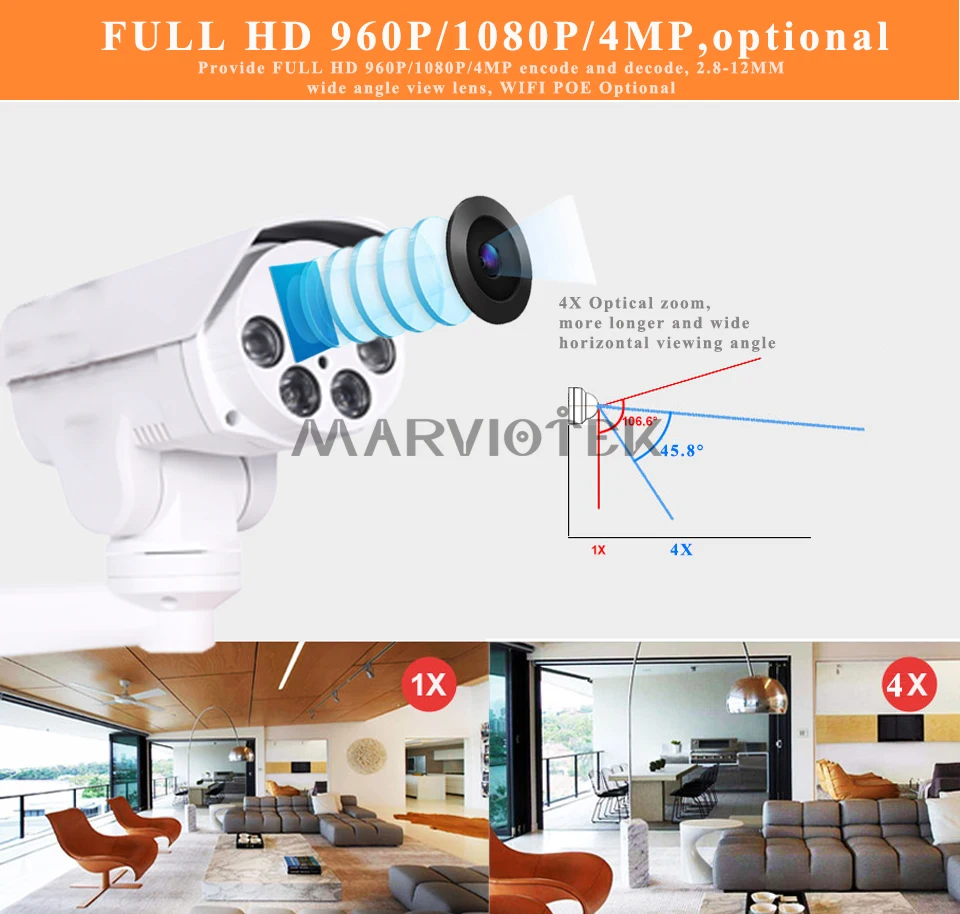

(2) Premium HD 960P/1080p/5MP Video Resolution, 2.8-12mm/5-50mm  Motorized Zoom Lens for option. H.264 Video Compression.

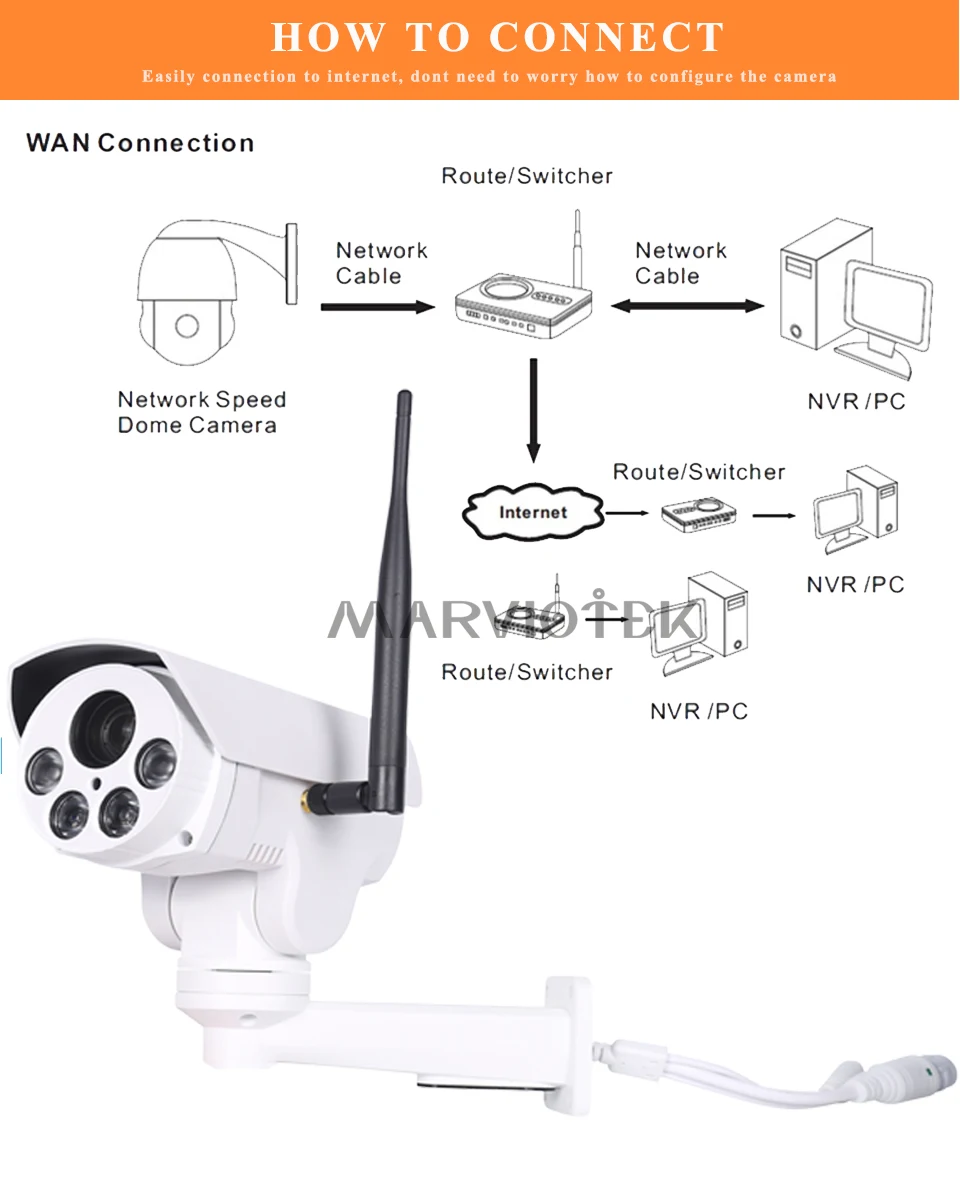

(3) Support Onvif  protocol ,work with Hikvision, Dahua, XM NVR . One Key Connection With HIKVISION NVR/CMS .Enjoy TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP.

(4) Perfect ceiling install for outdoor places (come with a metal base plate). Built-in Surge and Lightning Protection Devices, Working temperature: -20℃~+60℃

(5) anti-explosion glass and Aluminum cover that can be used in harsh environment

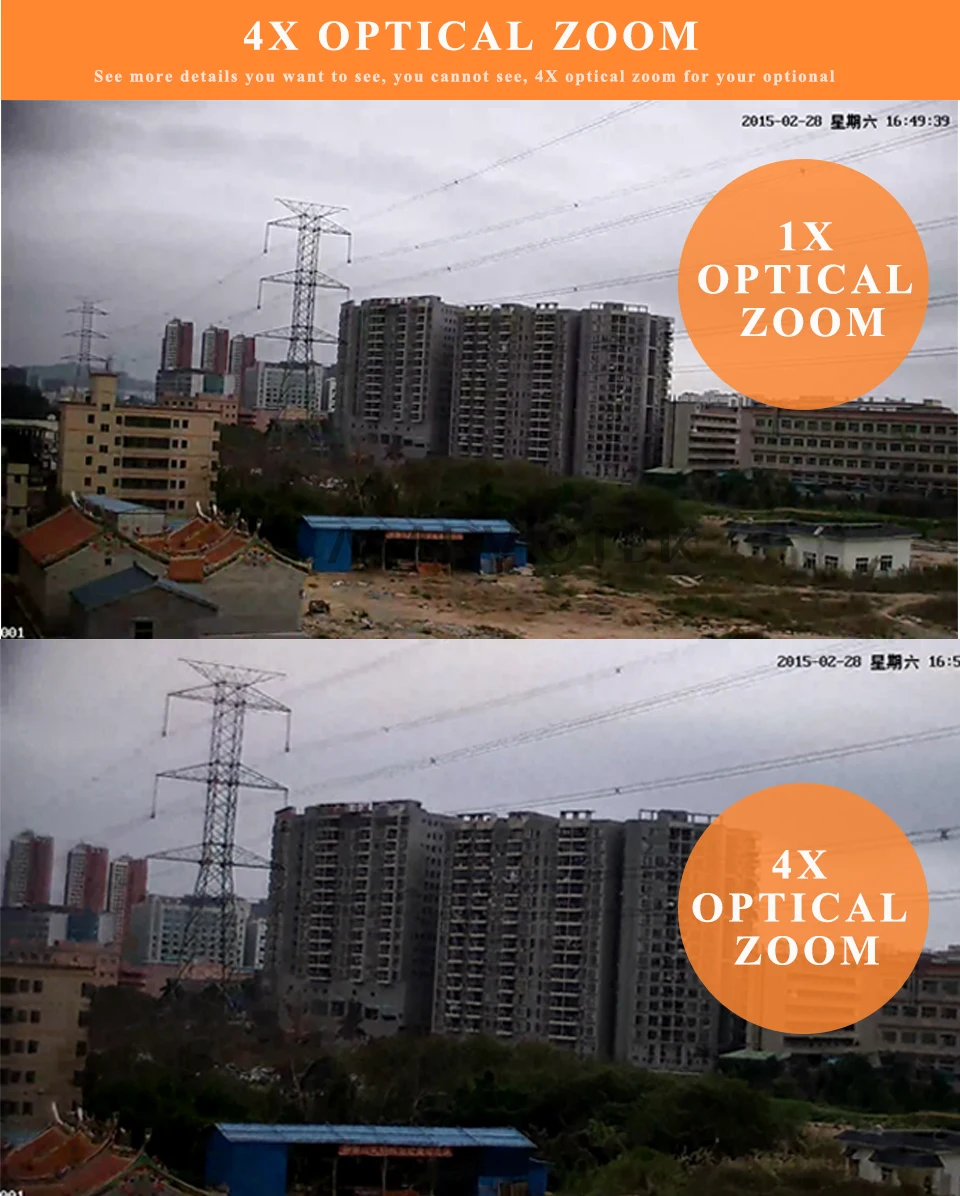

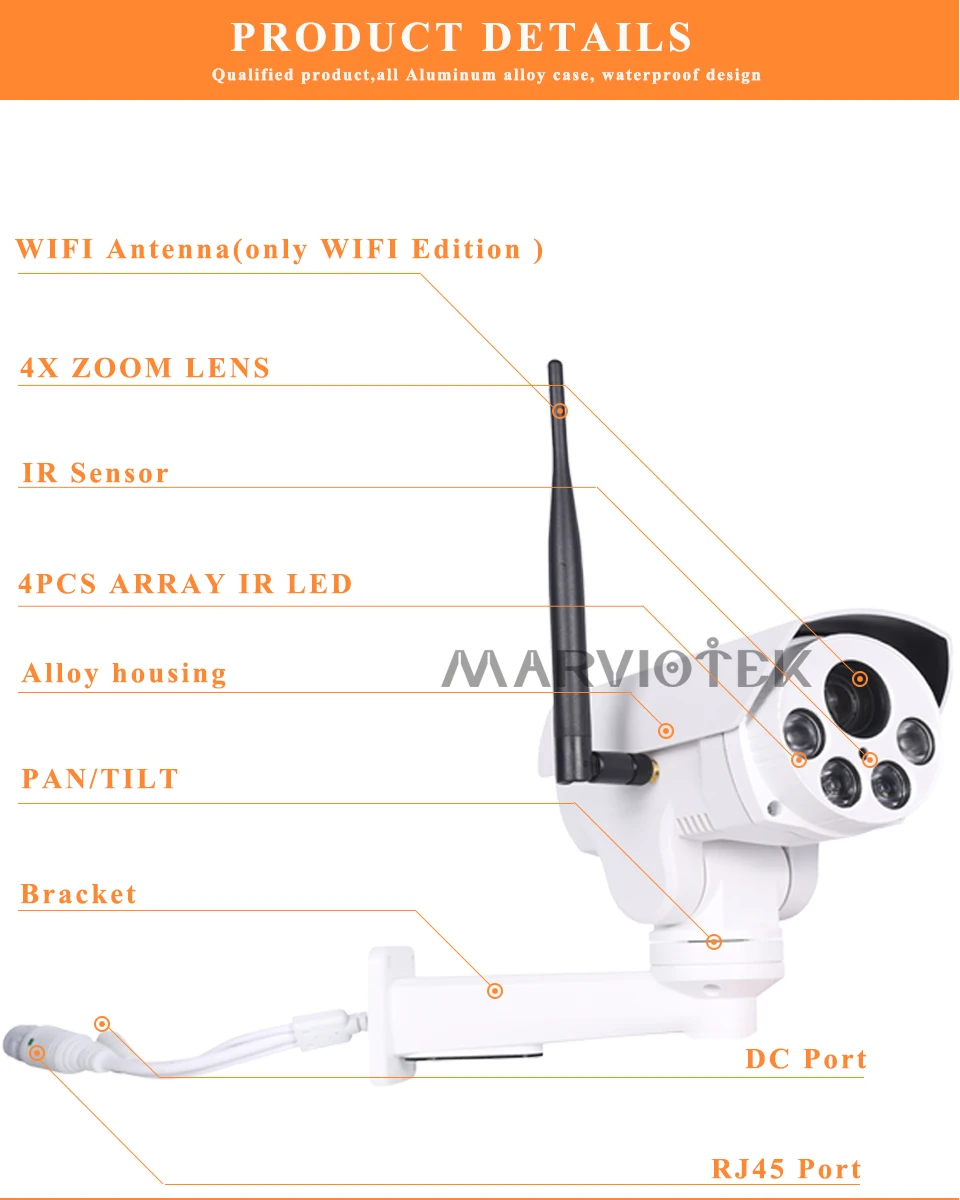

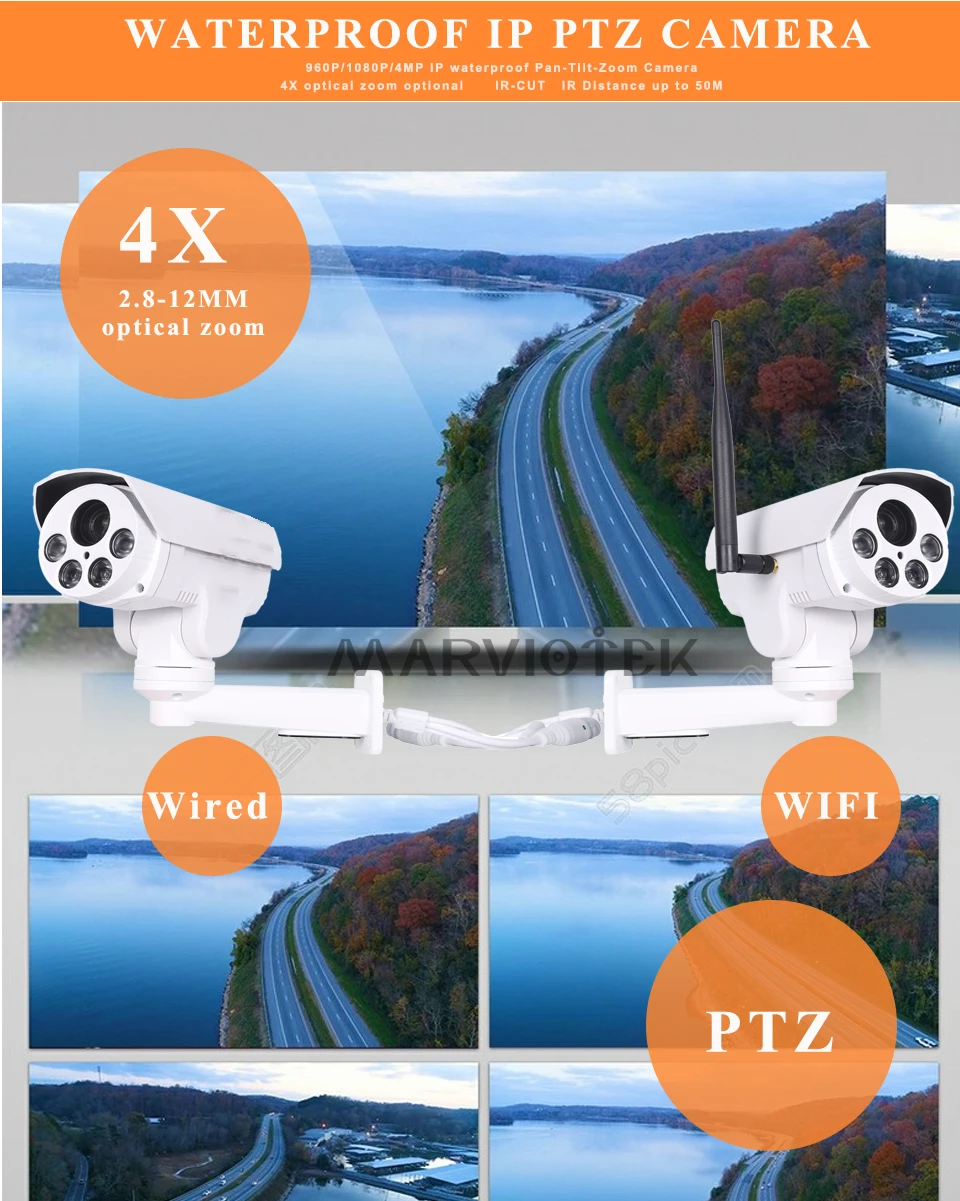

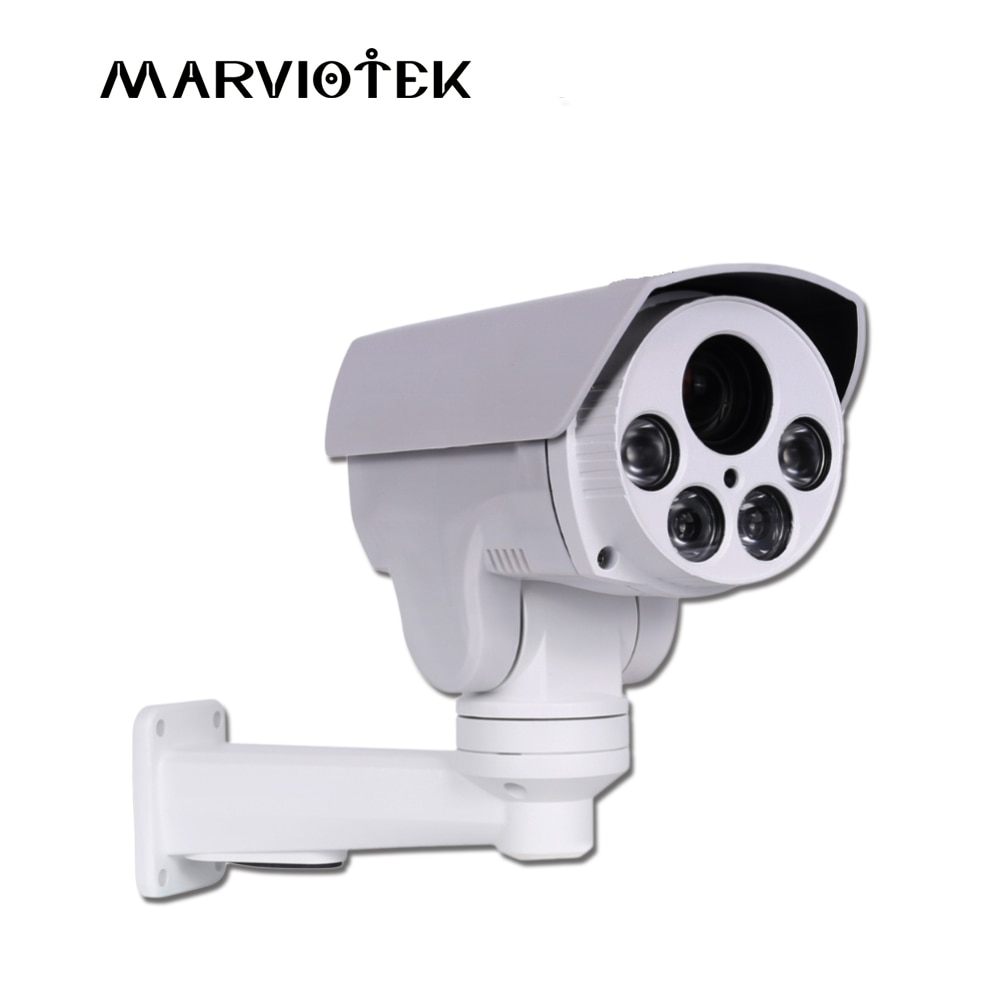

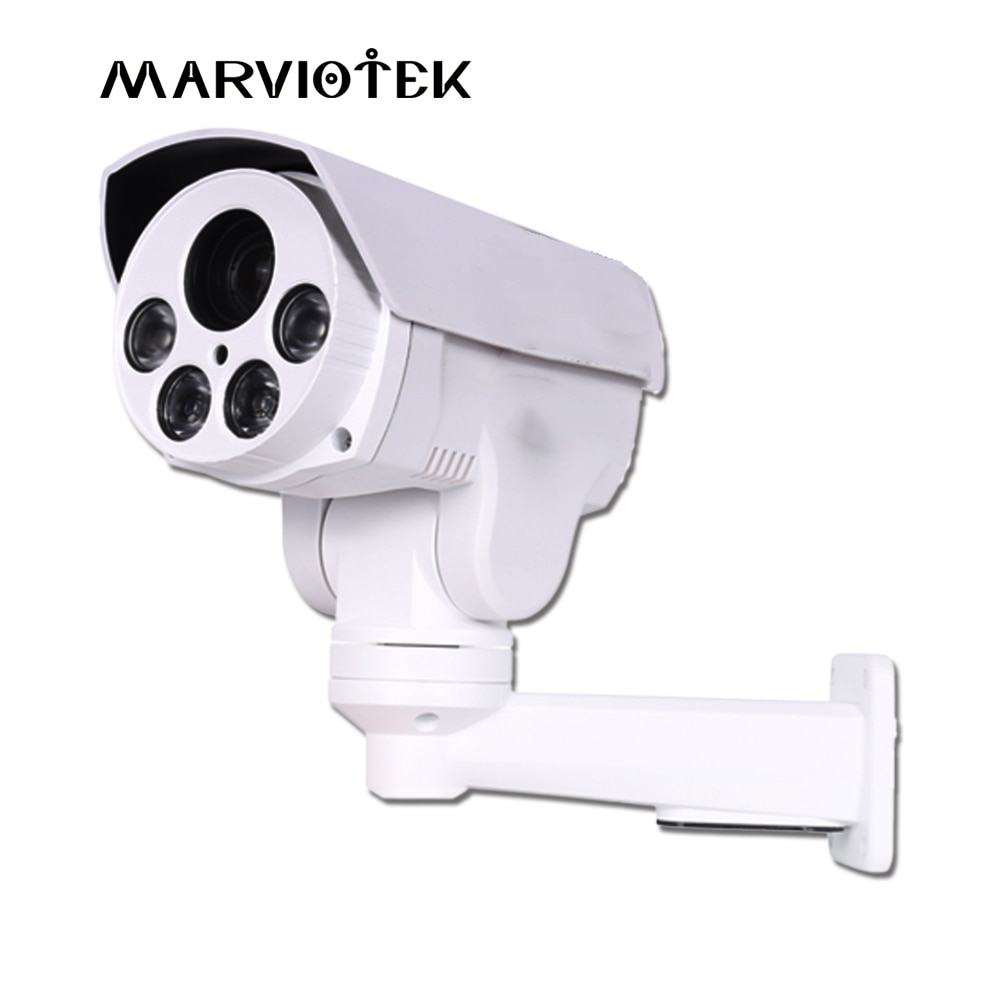

			FEATURES: ◆ Metal Pan-Tilt-Zoom ip Camera ◆ Pan Range: 0°~350°, Pan Speed: 45°/s, Tilt Range: 0°~90°, Tilt Speed: 45°/s ◆ 4/10x Optical Zoom Lens(f=2.8～12mm), Auto Focus ◆ 1080P/5MP optional ◆ Built-in Surge and Lightning Protection Devices
◆ SPECIFICATION ◆
MODEL CODE		MG06AR
CAMERA	IMAGE SENSOR	1080P/5MP sensor optional
	EFFECTIVE PIXEL	1080P/5MP
	SCANNING SYSTEM	Progressive Scan
	SYNCHRONIZATION	Internal
	ELECTRONIC SHUTTER	1/25s~1/50,000s , 1/30s~1/60,000s
	TV SYSTEM	PAL/NTSC
	VIDEO FRAME RATE	25fps/30fps

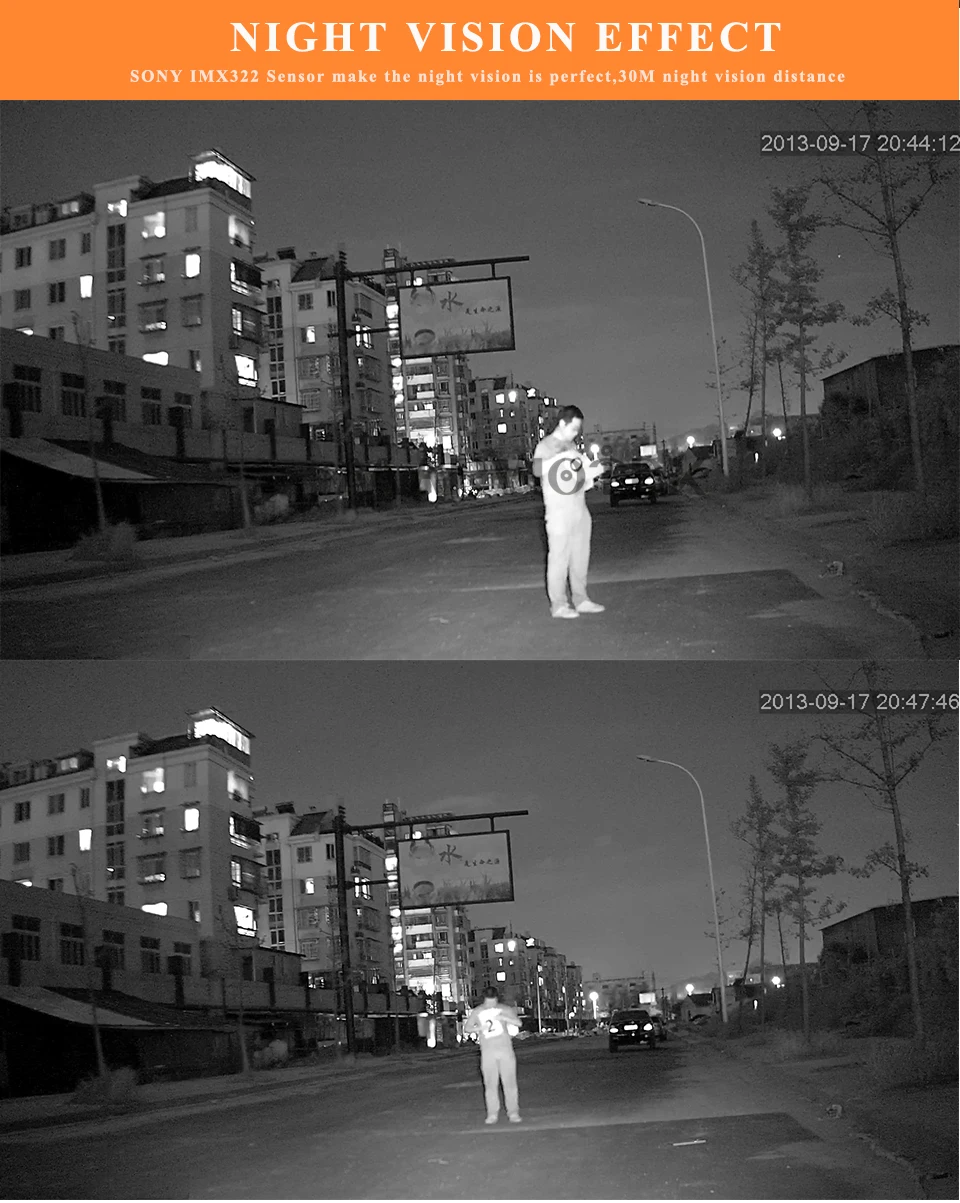

	MIN. ILLUMINATION	0.01LuxatF1.2(AGC ON), 0Lux IR on
	VIDEO OUTPU

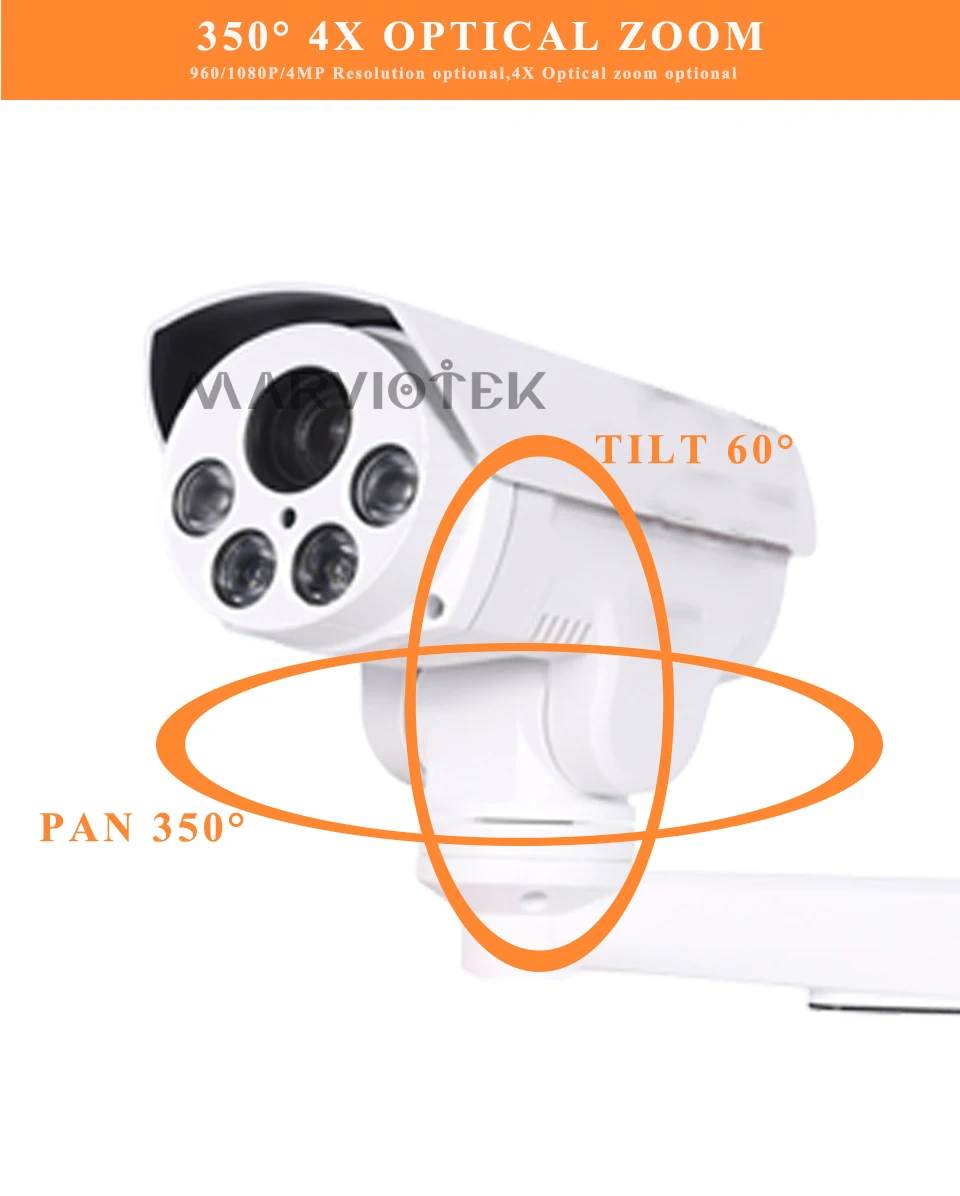

	PAN&TILT	PAN RANGE	0°~350°, Horizontal
PAN SPEED		45°/s
TILT RANGE		0°~90°, Vertifcal
TILT SPEED		45°/s
QUANTITIES OF PRESETS		255
SCANNING MODE		Auto Pan/Pattern/Auto Tour
PTZ PROTOCOL		PELCO-D/PELCO-P
BAUD RATE		2400/4800/9600/19200/38400
LENS	PIXEL	3MP
	IMAGE FORMAT	1/2.7"
	FOCAL LENGTH	2.8-12mm/5-50mm
	APERTURE	F1.4
	MOUNT	M12
	FIELD ANGLE(D×H×V)	1/2.7": 136°×108.8°×81.6°~ 49.5°×39.6°×29.7°
	IRIS	Fixed
	FOCUS	AUTO
	ZOOM	Motorized
FEATURE	SENSE-UP	OFF/ON
	DWDR	OFF/ON
	DEFOG	OFF/ON
	BACKLIGHT COMPENSATION	OFF/BLC/HSBLC
	WHITE BALANCE	ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
	DAY&NIGHT	EXT/AUTO/COLOR/B/W
	NOISE REDUCTION	2D NR/3D NR
	CAMERA TITLE	OFF/ON
	MOTION DETECTION	OFF/ON
	PRIVACY MASK	OFF/ON
	OSD LANGUAGE	EN/CN/

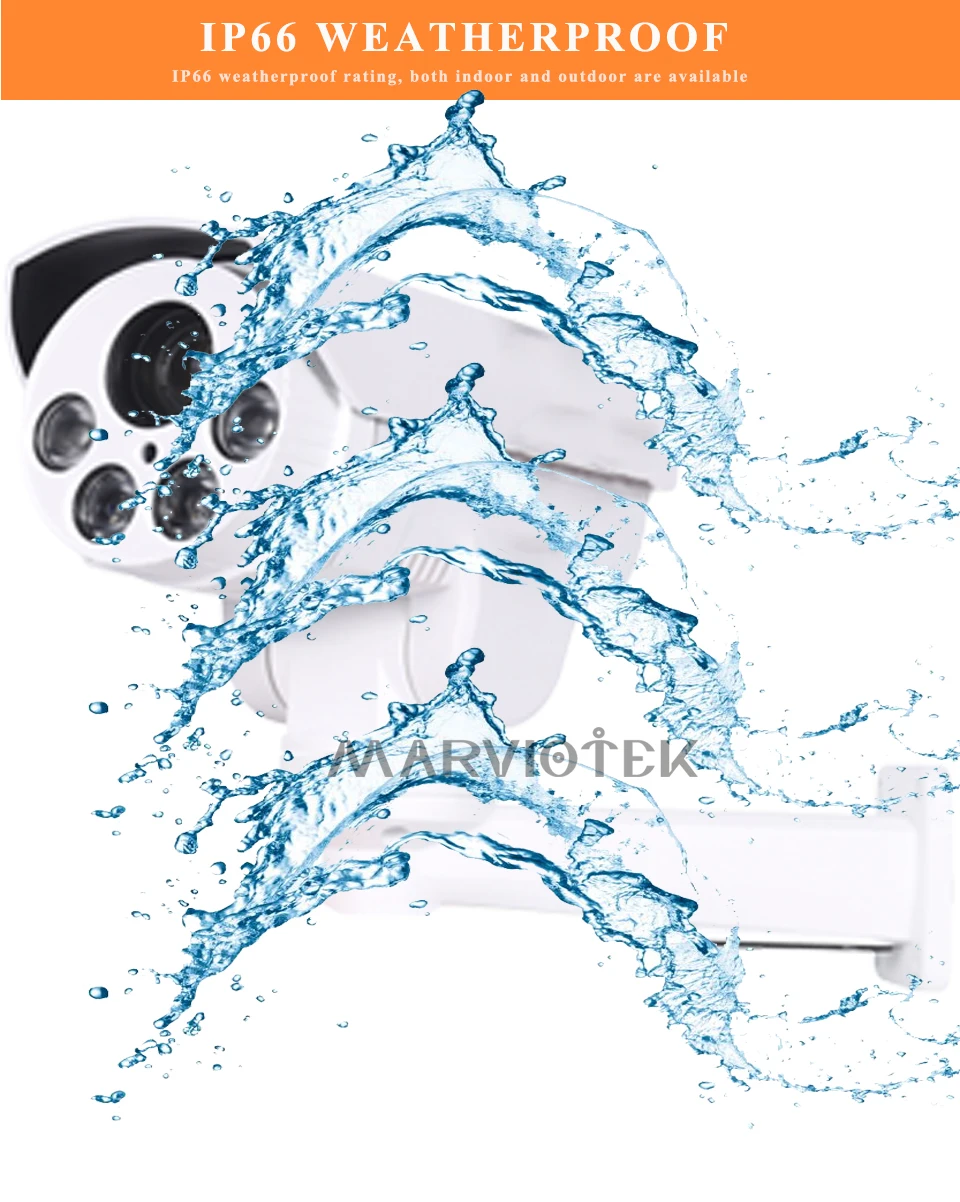

	INGRESS PROTECTION	IP66
GENERAL	POWER SUPPLY	DC12V±10% POE Optional
	POWER CONSUMPTION	Max 5W
	WORKING ENVIRONMENT	-10°C~+50°C / Less than 95%RH (no condensation).
	DIMENSION
	WEIGHT	1500g.

FAQ:

Q: Does it support web browser ?

A: Yes

Q: Does this camera support ONVIF ?

A: Yes , it support ONVIF, it can work with DVR/NVR

Q: Does this camera can be used outdoor ?

A: Yes, it is waterproof camera, can be applied in harsh envirnment like rainy days and snow days

Q: Does this camera support two way audio ?

A: No, it does not support audio input and output
