Wireless PTZ High Speed Dome IP Camera WIFI 4X Zoom Waterproof 960P Home Security Video Surveillance
Wireless PTZ High Speed Dome IP Camera WIFI 4X Zoom Waterproof 960P Home Security Video Surveillance Camera Outdoor ONVIF IR 60M...

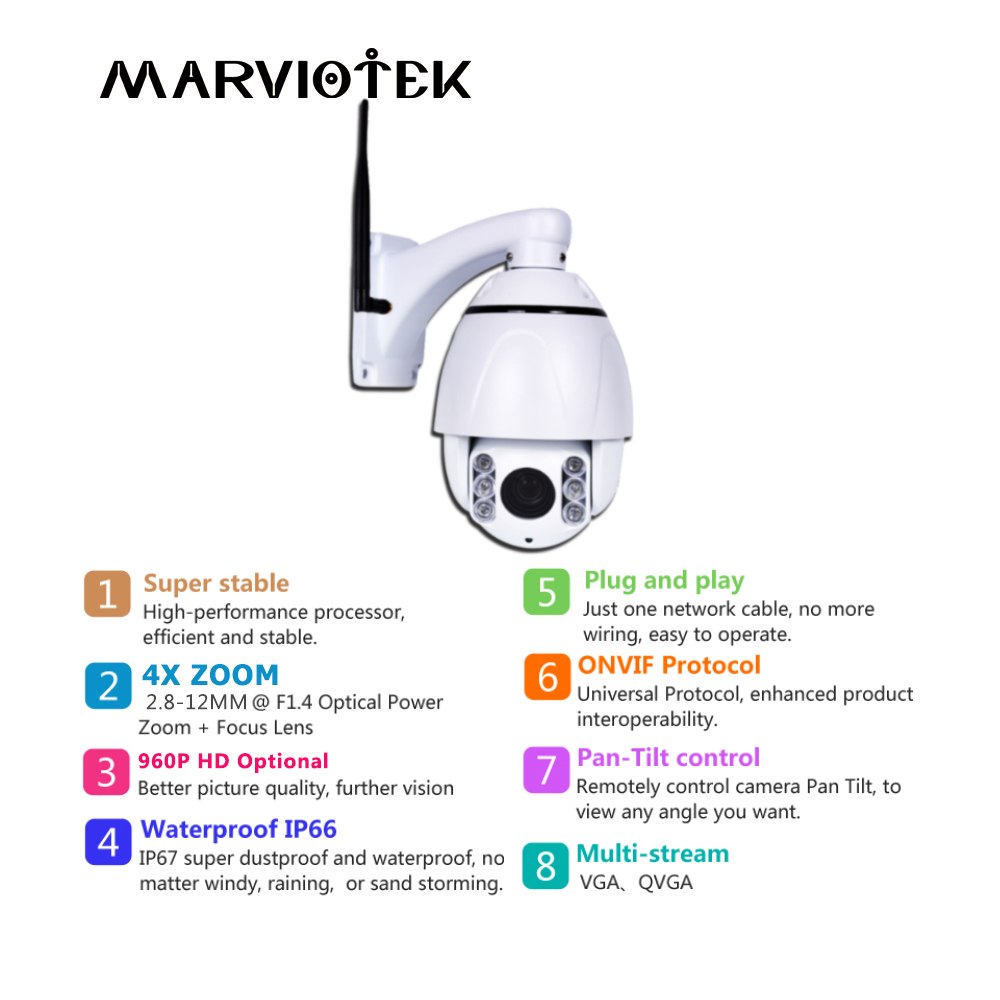

Product overview ( 4.5" mini PTZ Dome Camera)
|
Specifications: 4.5" Pan-Tilt-Zoom IP Camera, Pan Range: 0-355 °, Tilt Range 0-90°.
Remote Pan/Tilt Functionality with 4x Optical Zoom, IR night vision 60meters. Premium 960 Video Resolution, 2.8-12mm 4X Motorized Zoom Lens. H.264 Video Compression. Perfect ceiling install for both indoor and outdoor places (come with a metal base plate). Built-in Surge and Lightning Protection Devices, Working temperature: -20℃~+60℃ 6 presets;1 patrol;1 pattern;support AB scan; IP66 waterproof , anti-explosion glass and Aluminum cover that can be used in harsh environment. |
||
|
CAMERA
|
Sensor Image
|
1/3" 1.3 Megapixel CMOS Sensor
|
|
EFFECTIVE PIXEL
|
1280*960
|
|
|
SCANNING SYSTEM
|
Progressive Scan
|
|
|
SYNCHRONIZATION
|
Internal
|
|
|
ELECTRONIC SHUTTER
|
1/25s~1/50,000s , 1/30s~1/60,000s
|
|
|
TV SYSTEM
|
PAL/NTSC
|
|
|
Video Frame Rate
|
25fps/30fps at 960P
|
|
|
MIN. ILLUMINATION
|
0.01Lux atF1.2(AGC ON), 0Lux IR on
|
|
|
VIDEO OUTPUT
|
RJ45
|
|
|
IR LED
|
IR LED: 42μ x 6pcs, IR Range: 60M
|
|
|
PAN&TILT
|
PAN RANGE
|
0°~350°, Horizontal
|
|
PAN SPEED
|
120°/s
|
|
|
TILT RANGE
|
0°~90°, Vertifcal
|
|
|
TILT SPEED
|
45°/s
|
|
|
QUANTITIES OF PRESETS
|
255
|
|
|
PTZ PROTOCOL
|
PELCO-D/PELCO-P
|
|
|
BAUD RATE
|
2400/4800/9600/19200/38400
|
|
|
SCANNING MODE
|
Auto Pan/Pattern/Auto Tour
|
|
|
LENS
|
PIXEL
|
1.3MP
|
|
IMAGE FORMAT
|
1/3"
|
|
|
FOCAL LENGTH
|
2.8-12MM
|
|
|
APERTURE
|
F1.4
|
|
|
MOUNT
|
M12
|
|
|
FIELD ANGLE(D×H×V)
|
1/2.7": 136°×108.8°×81.6°~ 49.5°×39.6°×29.7°
|
|
|
IRIS
|
Fixed
|
|
|
ZOOM
|
Motorized
|
|
|
FOCUS
|
Auto Pan/Pattern/Auto Tour
|
|
|
FEATURE
|
SENSE-UP
|
OFF/ON
|
|
DWDR
|
OFF/ON
|
|
|
DEFOG
|
OFF/ON
|
|
|
BACKLIGHT COMPENSATION
|
OFF/BLC/HSBLC
|
|
|
WHITE BALANCE
|
ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
|
|
|
DAY&NIGHT
|
EXT/AUTO/COLOR/B/W
|
|
|
NOISE REDUCTION
|
2D NR/3D NR
|
|
|
CAMERA TITLE
|
OFF/ON
|
|
|
MOTION DETECTION
|
OFF/ON
|
|
|
PRIVACY MASK
|
OFF/ON
|
|
|
OSD LANGUAGE
|
EN/CN/
|
|
|
INGRESS PROTECTION
|
IP66
|
|
|
GENERAL
|
POWER SUPPLY
|
DC12V±10% POE Optional
|
|
POWER CONSUMPTION
|
Max 5W
|
|
|
WORKING ENVIRONMENT
|
-10°C~+50°C / Less than 95%RH (no condensation).
|
|
|
DIMENSION
|
￠105mm x 69mm(H).
|
|
|
WEIGHT
|
1.7Kg.
|
|
Product packaging
