Cheapest RFID UHF Writer in Market EPC Mini Desktop USB + SDK #deskuhf
Cheapest RFID UHF Writer in Market 860-960 MHz ISO 18000 6C Mini Desktop 10cm Reader USB + SDK #deskuhf
This product has no valid combination.

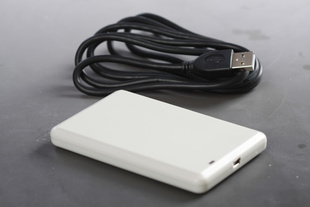

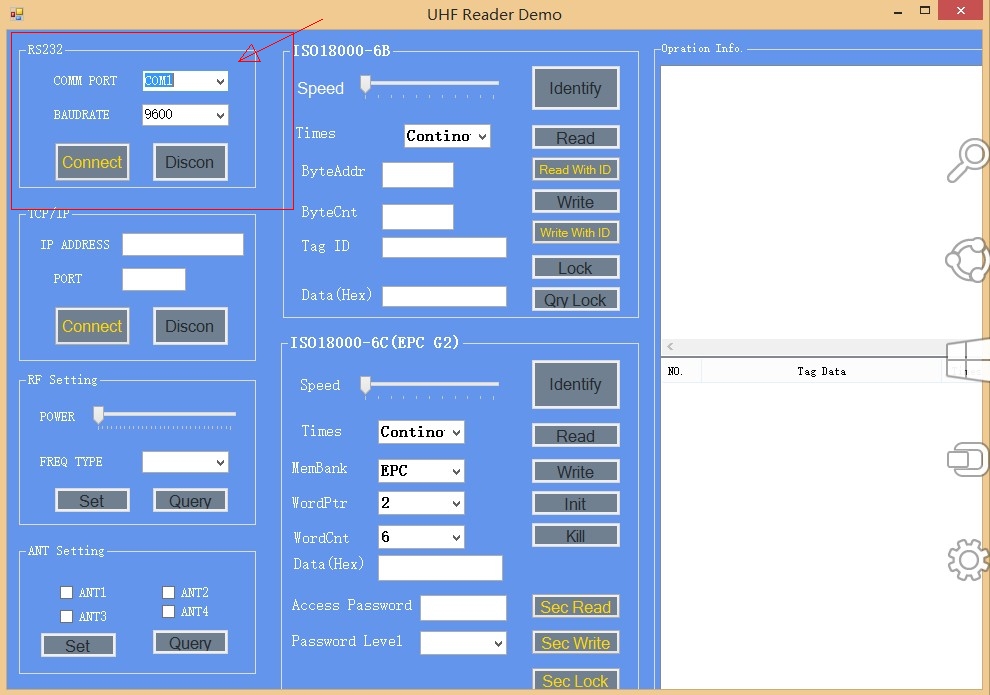

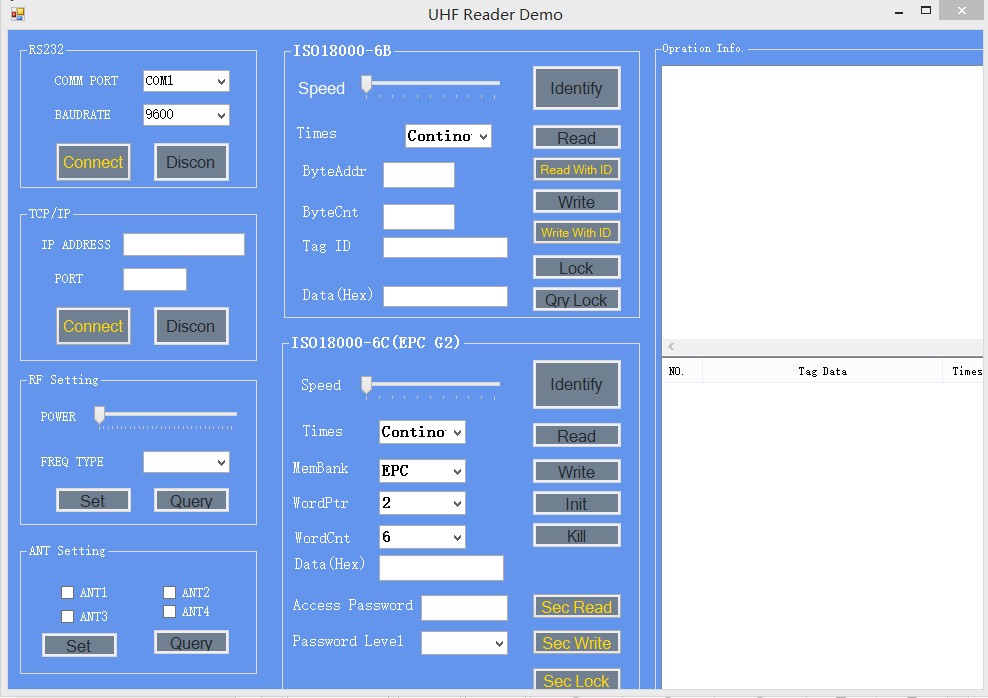

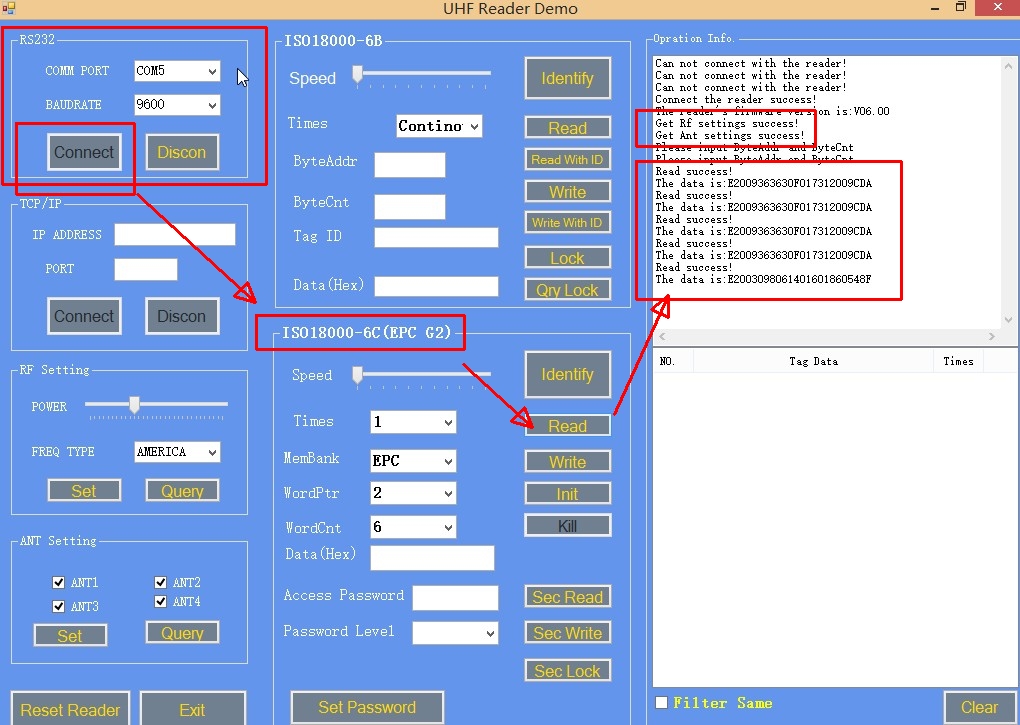

This mini USB desktop writer probably the cheapest RFID UHF writer in market. Though the pricing is competitive, there is no any sacrifice on the quality and functions of the writer. It is also a reader supporting RFID UHF application with open standard and compliant to industrial standard EPC Global G2 Class 1. Moreover, its SDK is also open source with libraries for software developers and demonstration programme. Additional software is also provided whenever available.
Having review our video of demonstration via Youtube, you will find this reader is a reliable choice for your solutions.
Desktop UHF Card Reader Writer is a high performance UHF Band ISO 18000-6C(EPC C1G2) ,ISO18000-6B Multi-protocol RFID reader, completely independent intellectual property design, combined with a proprietary high- electron collision algorithm , while maintaining a high literacy rate , fast read electronic tags can be widely used in logistics, personal identification , conference attendance systems, access control systems, security systems and production process control , and other radio frequency identification (RFID) System .
- Completely independent intellectual property;
- Fully supports compliance withUHF EPC Gen2 (ISO18000-6C),ISO18000-6B protocol electronic tags ;
- Advanced anti-collision algorithm, high identification rate ; One tag is guaranteed to be read even there is more than one inside within the range of detection.
- Operating Frequency 902~928MHz (Can be adjusted in different countries or regions require)
- With broad-spectrum frequency hopping(FHSS)Or fixed-frequency transmission;
- Output Power:Maximum13dBm( Adjustable ) ;
- Built-in transceiver antenna , reading distance 2-5cm Write distance 2cm
- USBInterface to take power , no external power supply ;

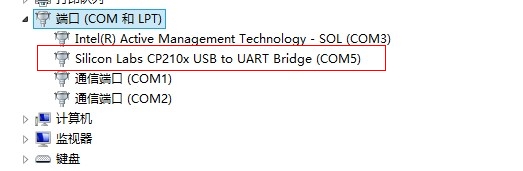

- Support USB1.1Interfaces, virtual serial port work,USBHassel wayAndUSBHassel keyboard emulation modeOptional ;

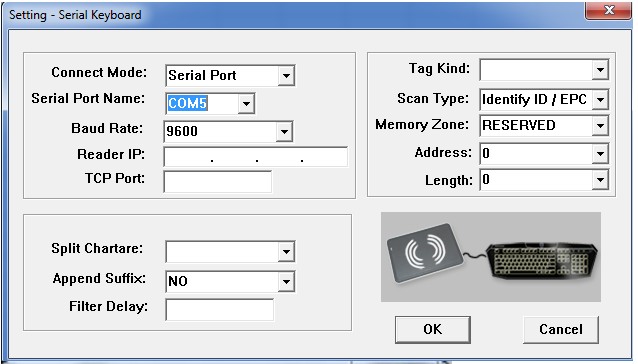

- The keyboard emulation mode Output formats and parameters customizable; default factory setting cannot be worked as a virtual keyboard input. This function can be added at extra cost or choose another model from our store.
- Slim shape design ;

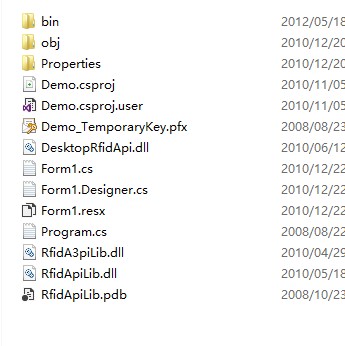

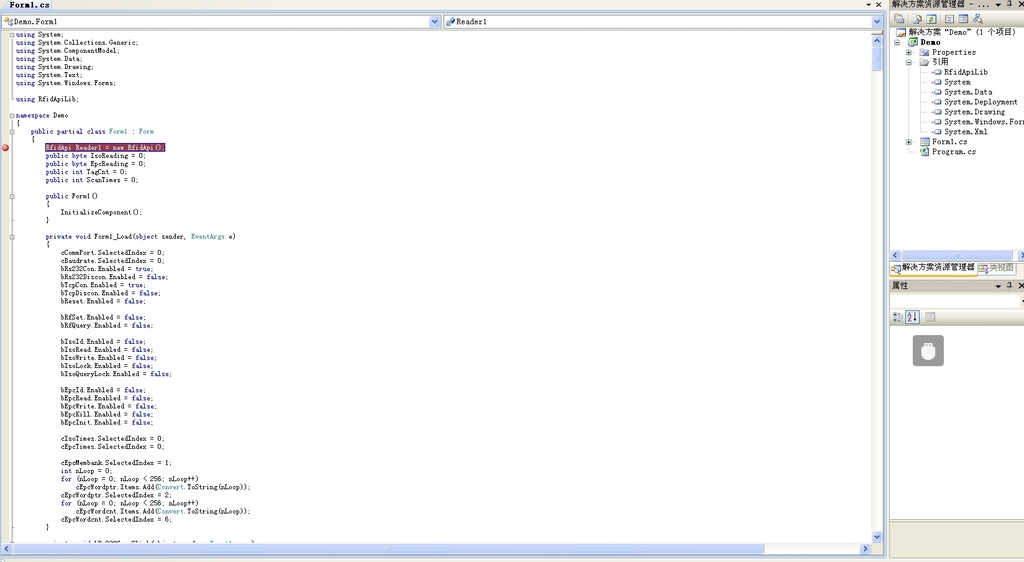

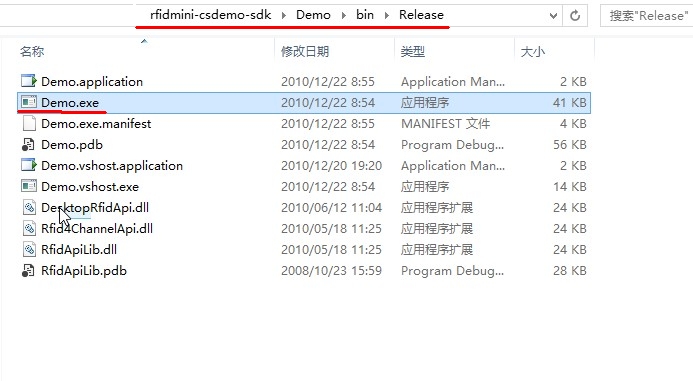

- Provides a dynamic link library (DLL) on C#, Support secondary development.
- Limiting values
|
Project
|
Symbol
|
Value
|
Unit
|
|
Supply Voltage
|
VCC
|
5
|
V
|
|
Operating Temperature
|
T OPR
|
-10 ~ +60
|
°
|
|
Storage Temperature
|
T STR
|
-25 ~ +80
|
°
|
- Specification:Unless otherwise specified, taken from the specifications shownTA=25°AndVCC=+5 VWorking conditions
|
Project
|
Symbol
|
Least
|
Typical
|
Maximum
|
Unit
|
|
Supply Voltage
|
VCC
|
4.5
|
5
|
5.5
|
V
|
|
Current
|
I C
|
|
90
|
150
|
mA
|
|
Operating Frequency
|
F REQ
|
902
|
|
928
|
MHz
|
|
Effective distance *
|
DIS
|
0
|
120
|
180
|
cm
|

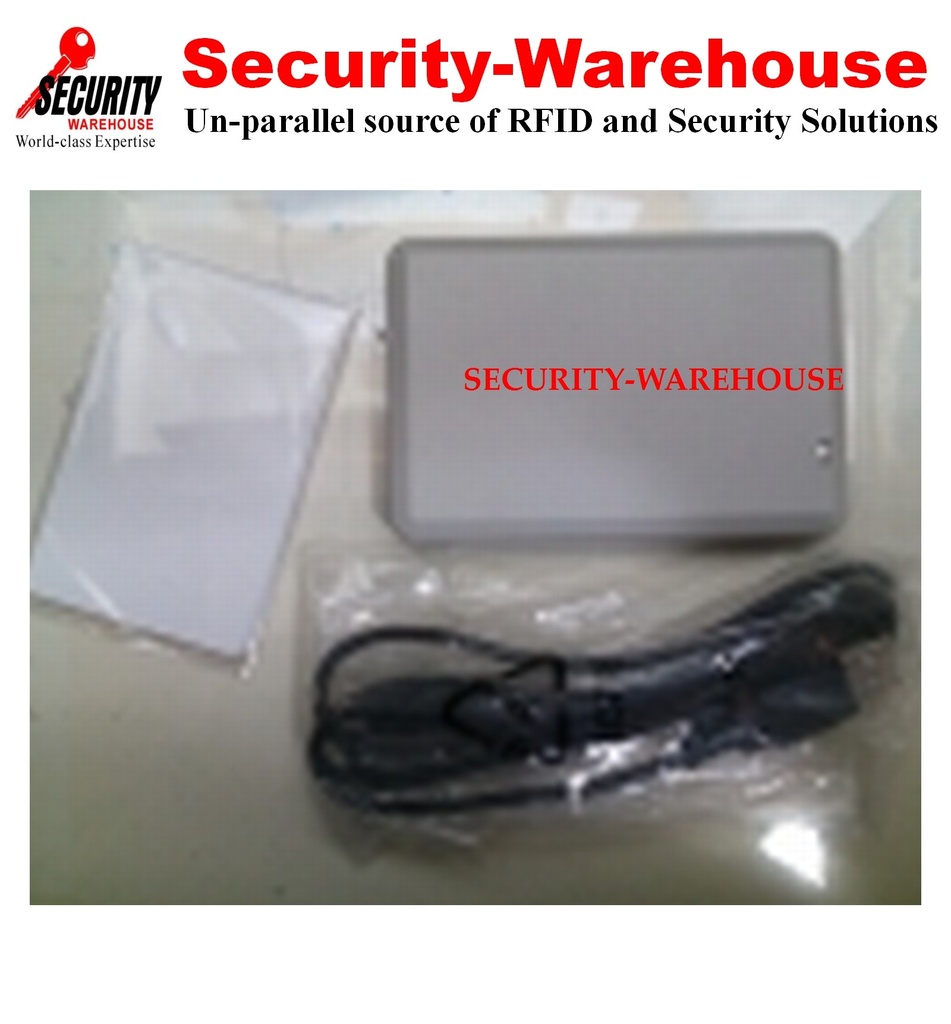

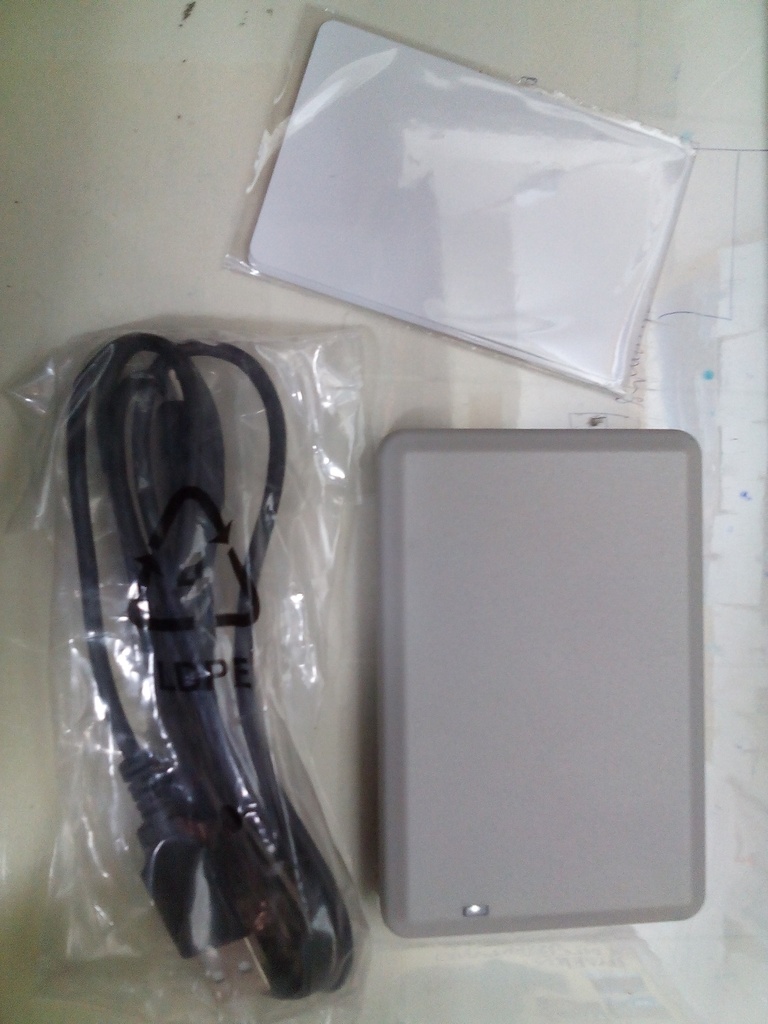

Package:
- Reader
- USB cable
- Software (download from website)
