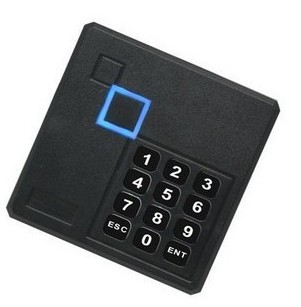

RFID 13.56MHz 14443A Access Control Reader Mini ABS Card + Keypad Wiegand Black Square 86x86 Waterproof

[Introduction】

RFID 13.56MHz Non-contact Cards and 14443A Wiegand reader, preclude the use of advanced RF circuit design and embedded micro-controller , combined with efficient decoding algorithms, Card receiver with receiver sensitivity, working current, single DC power supply , low price , high performance characteristics . For access control, attendance , fees, and other RFID applications. ( Wiegand protocol reader ) .Dust, moisture, fully sealed design easy to install, can be installed outdoors in bad condition . No mechanical wear, permanent and durable ;

[Performance Parameters

• Size:86 * 86 * 18(mm)
• Colors:Black (black)/Off-white (white)
• Operating voltage:DC9 ~ 16V
• Operating Current : ≤100mA
• Working environment:-40°~ 70°
• Sensing distance:5 ~ 18cm
• Speed reader:0.2Second
• Clock interval:0.5Second
• Output format:weigand26/weigand 34
• Card Type: Mifare ISO 14443A 13.56 Mhz compatible
• Communication distance:WG≤100M
• Built-in speakers : The buzzer can be controlled LED And buzzer
• Anti- pick the wrong line protection, reserved for wiring20CM( May be extended , but to be customized )
• Case Material: PVCAnd sprayInternal groutability black resin ( which can effectively waterproof )
• This product provides the bare board orOEMProduct Warranty12Months

[ Wiring ]

• Red (Red)VCC +12 V
• Black (Black) GND
• Green (Green)D0
• White (White) D1
