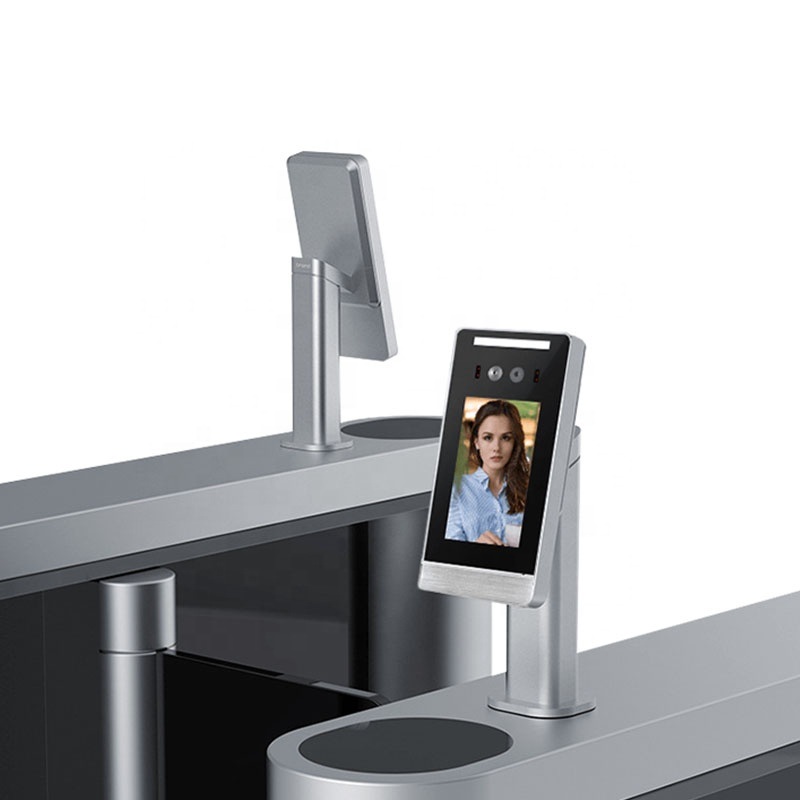

5 Inch Free Software 13.56MHz Face Recognition Time Attendance Access Control System

• Model NO. : B2002FR-5I-WM-L06
  ●Function : Face Access
  ●Face Capacity : 30000
  ●Extra Function : Door Sensor , Doorbell
  ●Transport Package : Carton Box
  ●Specification : 230*92*158mm
  ●Trademark : Beward
  ●Origin : China
  ●HS Code : 8525801390
  ●AProduction Capacity : 5000PCS Month

Features&Advantages
◎Support Real Time Human Body Detection .
◎Using Linux operating system, better system stability.
◎Face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s.
◎Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.
◎Support for AD file playback.
◎Support PIR human body sensing wake-up function.
◎Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.
◎Support 65000+ face matching library and 250,000 face recognition records.
◎Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.
◎Support tracking of personnel movements under strong backlight conditions.
◎The host supports an external ID card reader (For Chinese ID card).
◎The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.

Specifications:
Hardware
▣Processor:Sextuple processor + 2G memory + 32G flash
▣Operating system:Linux Operating system
▣Storage:Support TF card storage
▣Camera module:U21R

▣Sensor:1/2.8" Progressive Scan CMOS
▣Lens:6mm(optional)

Performance
Recognition height:1.2~2.2 meters,Angle can be adjusted
Recognition distance:0.5~5 meters,depends on lens
Face angle:30 degrees left and right, 30 degrees up and down
Recognition time:Less than 1 second
Function:Support 250,000 capture library, real-time capture, support 65,000 list library
Interface:Switch  inputs
1ch switch input
Power:DV12V/3A
Network Interface:1x RJ45 10M / 100M Adaptive Ethernet port
Wiegand Interface:1ch Wiegand interface input/output
USB interface:1ch  USB interface
Camera Data:Two cameras: 1x B/W camera ; 1x color camera
Effective pixels:2MP,1920*1080
Min Illumination:Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR≥50db(AGC OFF)
WDR≥120db
Video Coding:H.265 Main Profile /H.264 BP/MP/HP /MJPEG
Resolution
Main stream:50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)
Sub stream:720*576,1-25(30)fps/640*480,1-25(30)fps320*240,1-25(30)fps

1.  we can offer OEM&ODM services
2.  All software free provide, and technical support after-service
3.  long time warranty: 3 Years
4. 24 hours online service
