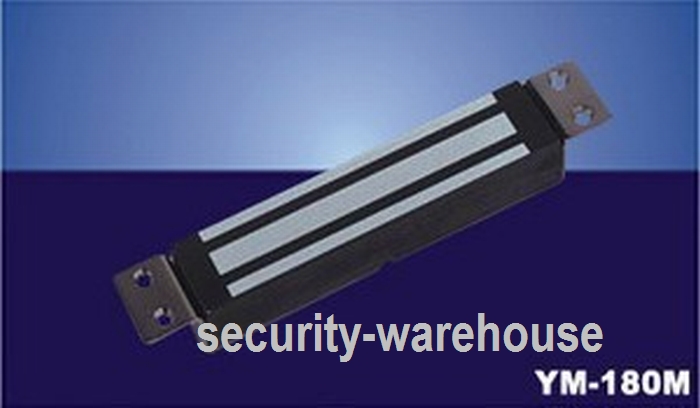

YM-180M 180kg single door Electromagnetic Lock Flush door Electromagnetic Lock
YM-180M 180kg single door Electromagnetic Lock Flush door Electromagnetic Lock
This product has no valid combination.
- Lock Size : Length Width 190x 32x thickness 21 (mm)
- Blister Dimensions: Length Width 130x 32x thickness 11 (mm)
- Maximum tension : 180kg (350Lbs) straight Rally
- Input voltage : DC12V or DC24V +10%
- Current : 12V/300mA 24V/150mA
- Optional Accessories : ABK-180UL ABK-180L ABK-180ZL
- Signal Output : Door status signal output an extra set YM-180M-S
- Applicable : Wooden door , glass doors, metal doors, fire doors
- Surface temperature: +20 ° below ambient temperature within
- Temperature : -10 ~ +55 ° (14-131F)
- Suitable Humidity : 0 ~ 95% ( relative humidity )
- Lock Body : Zinc plating
- Blister : Zinc plating
- Weight : 1.2kg
