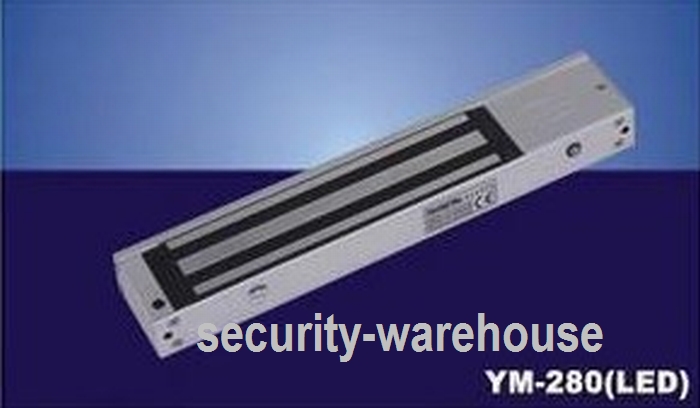

YM-280 LED 280KG Single Door Electromagnetic Lock +Signal Output
YM-280 (LED) 280KG Single Door Electromagnetic Lock With Signal Output
This product has no valid combination.
Product parameters:
- Lock Size : Length Width 250x height 47x 25 (mm)
- Blister Dimensions: Length Width 180x height 38x 11 (mm)
- Maximum pull : 280kg (600Lbs) straight pull
- Input voltage: DC12V or DC24V +10%
- Operating current : 12V/500mA 24V/250mA
- Optional Accessories : ABK-280UL ABK-280L ABK-280ZL
- Signal Output : Dry contact output , Maximum Power 3A, NO output when locking and unlocking the NC output
- LED display : red ( open state ) Green ( locked state )
- Applicable : Wooden door , glass doors , metal doors, fire doors
- Surface temperature: +20 ° below ambient temperature within
- Suitable temperature : -10 ~ +55 ° (14-131F)
- Suitable Humidity : 0 ~ 95% ( relative humidity )
- Shell: Anodized aluminum
- Lock body treatment: zinc- plating
- Blister treatment: zinc- plating
- Product weight : 2kg
Advantages:
- 280kg (600Lbs) Static linear tension
- Can set 12VDC or 24VDC
- Factory set to 12VDC voltage standard
- Built-in reverse current protection devices (MOV)
- For wooden doors, glass doors, metal doors, fire doors
- Anti- residual magnetism design, selection of materials, anti-wear
- Shell is made of high strength aluminum alloy material Anodized
- Magnetic lock without mechanical failure , complete with electromagnetic suction work
- Increase the electromagnetic suction , professional design, double insulated handle lock body
- Products through the EU CE and China MA Certificate
