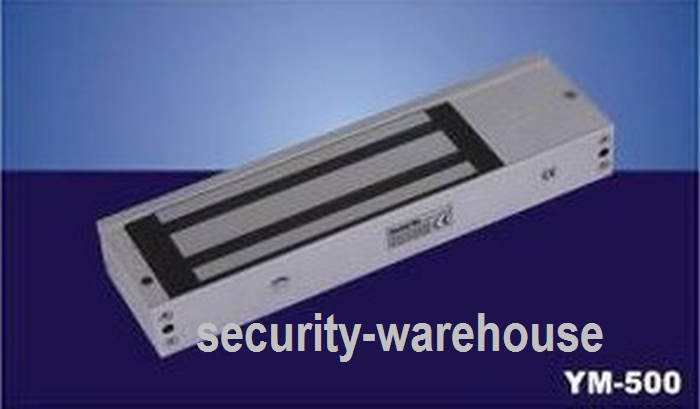

YM-500 500kg single door Electromagnetic Lock
YM-500 500kg single door Electromagnetic Lock
This product has no valid combination.
- Lock Size : Length Width 266x 67x thickness 39 (mm)
- Blister Size: 185x 60x wide thickness 13 (mm)
- Maximum pull : 500kg (1200Lbs) straight pull
- Input voltage: DC12V or DC24V +10%
- Operating current : 12V/420mA 24V/210mA
- Optional Accessories : ABK-500L ABK-500ZL
- Applicable : Wooden door , glass doors , metal doors, fire doors
- Surface temperature: +20 ° below ambient temperature within
- Suitable temperature : -10 ~ +55 ° (14-131F)
- Suitable Humidity : 0 ~ 95% ( relative humidity )
- Shell: Anodized aluminum
- Lock body treatment: zinc- plating
- Blister treatment: zinc- plating
- Product Weight : 4.5kg
Advantages:
- 500kg (1200Lbs) Static linear tension
- Can set 12VDC or 24VDC
- Factory set to 12VDC voltage standard
- Built-in reverse current protection devices (MOV)
- For wooden doors, glass doors, metal doors, fire doors
- Shell is made of high strength aluminum alloy material Anodized
- Anti- residual magnetism design, selection of materials, anti-wear
- Magnetic lock without mechanical failure , complete with electromagnetic suction work
- Increase the electromagnetic suction , professional design, double insulated handle lock body
- Products through the EU CE and China MA Certificate
