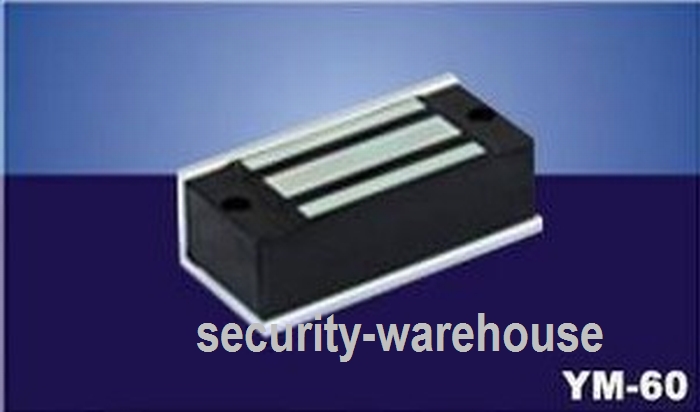

Leading High Quality Yilin YM-60 Mier Single Door Electromagnetic Lock 60kg
YM-60 Mier Single Door Electromagnetic Lock 60kg
This product has no valid combination.
- Lock Size : L 80 x 33 x 19 (mm)
- Armature plate size : 80x wide 33x long thick 9.4 (mm)
- maximum tension : 60kg (100Lbs) straight Rally
- Input voltage: DC12V+10%
- Current : 12V/100mA
- Optional accessories :ABK-70ULABK-70Z
- Suitable for Door : filing cabinets, cabinets and other small doors shopping
- Surface temperature: +20 ° below ambient temperature within
- Suitable temperature : -10 ~ +55 ° (14-131F)
- Suitable Humidity: 0 ~ 90 % relative humidity
- for Shell: Anodized aluminum
- Lock treatment: zinc- plating
- Blister Treatment: zinc- plating
- Weight : 0.5kg
- Packing: 60 loaded
- 60kg (100Lbs) Static linear tension
- can set their own 12VDC
- voltage standard factory- set to 12VDC
- Built-in reverse current protection devices (MOV)
- Anti- residual magnetism design, selection of materials, anti-wear
- housing made of high strength aluminum alloy material Anodized
- magnetic lock without mechanical failure , complete with electromagnetic suction work
- Increase electromagnetic suction , professional design, double insulated handle lock body
- products through the EUCEAnd China MA Certified
