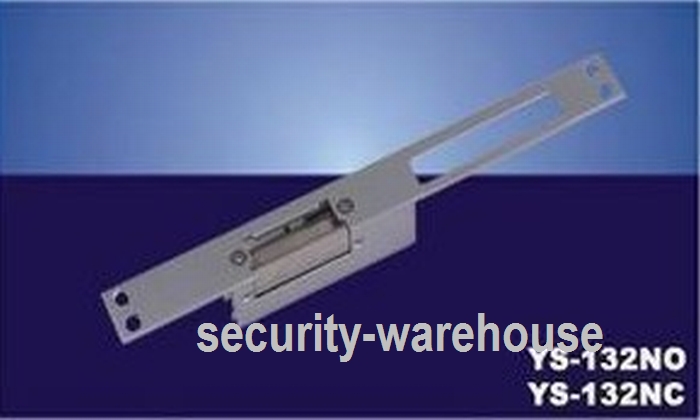

YS-132NONC long panel western style Electric Strike Lock
YS-132NO/NC long panel western style Electric Strike Lock
This product has no valid combination.
- Lock Size : Length Width 250x height 25x 28 (mm)
- Bolt structure : Stainless Steel Casting
- Withstand shock : 800kg thrust
- Input voltage : DC12V ( can be set DC24V)
- Operating Current : 450mA (YS-132NO)
- 200mA (YS-132NC)
- Safety : Fail Secure (YS-132NO)
- Power lock (YS-132NC)
- Surface temperature: +20 ° below ambient temperature within
- Suitable temperature : -10 ~ +25 ° (14-131F)
- For humidity :0- 95% ( relative humidity )
- Lock body treatment: high temperature paint
- Bolt handle : Stainless steel brushed polished
- Protection performance : external surge absorbing element (MOV)
- Applicable : Wooden door , metal door , PVC door
- Open the door: 90 degrees to open the door
- Choose matching : YS-308
- Product Weight : 0.4kg
Advantages:
- Withstand 800kg thrust
- Alloy lock body , stainless steel bolt
- Passing through one hundred thousand times aging test
- Surface temperature paint , durable and beautiful
- Products passed the European CE certification and China MA
