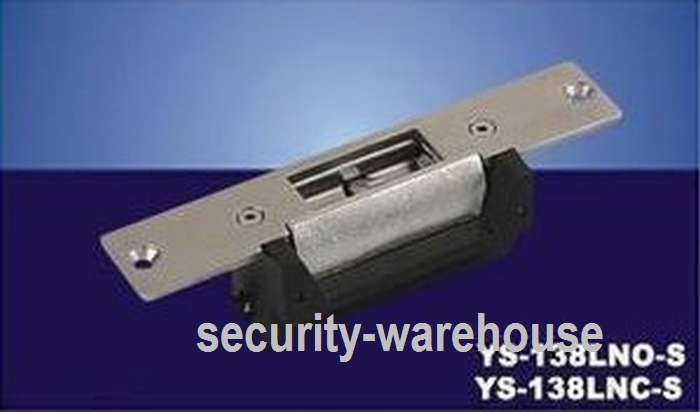

YS-138LNONC-S long U S regulatory panel Electric Strike Lock +Signal Output
YS-138LNO/NC-S long U.S. regulatory panel Electric Strike Lock With Signal Output
This product has no valid combination.
- Lock Size : Length Width 165x height 32x 33 (mm)
- Bolt structure : Stainless Steel Casting
- Withstand shock : 800kg thrust
- Input voltage : DC12V ( can be set DC24V)
- Operating Current : DC12V/250mA
- DC24V/150mA
- Safety : Fail Secure (YS-138LNO-S)
- Power lock (YS-138LNC-S)
- Surface temperature: +20 ° below ambient temperature within
- Suitable temperature : -10 ~ +25 ° (14-131F)
- For humidity :0- 95% ( relative humidity )
- Lock body treatment: high temperature paint
- Bolt handle : Stainless steel brushed polished
- Protection performance : external surge absorbing element (MOV)
- Applicable : Wooden door , metal door , PVC door
- Open the door: 90 degrees to open the door
- Choose matching : YS-305 YS-306
- Product Weight : 0.4kg
- Packing: 60 loaded
Advantages:
- Withstand 800kg thrust
- Alloy lock body , stainless steel bolt
- Stainless steel panel , durable and beautiful
- Passing through one hundred thousand times aging test
- Surface temperature paint , durable and beautiful
- Lock signal output NO, NC, COM
- Products through the EU CE and China MA Certificate
