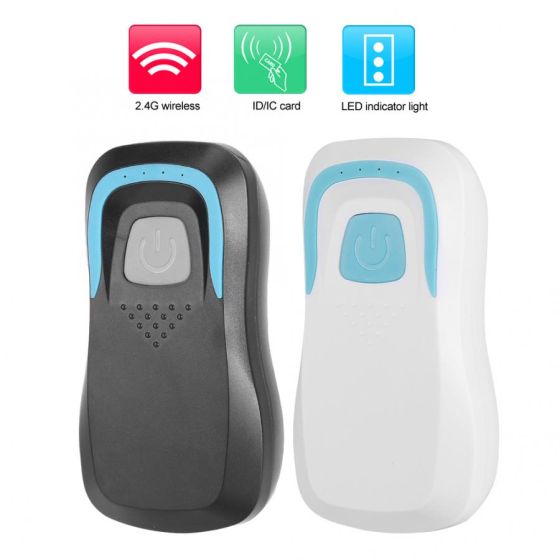

Bluetooth Reader R58 B/ R58 C/ R58 D
1 Specifications
|
Model |
R58B/R58C/R58D |
|
Frequency |
125KHZ/13.56MHz |
|
Card Type |
S50/S70/Ntag203/Ntag213 |
|
Decode Capability: |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,China postetc. 2D: QR Code, Data Matrix,etc |
|
Communication |
Bluetooth/2.4G |
|
Format |
Default 8-bit hex system (format customizable, like 10-bit 10 system/10-bit hex system etc) |
|
Distance |
20mm-60mm（depend on card type） |
|
Reading Rate |
106K/Bit |
|
Reading Speed |
0.1S |
|
Reading Interval |
0.5S |
|
Reading Time |
＜100mS |
|
Working Temperature |
-20℃—70℃ |
|
Working Current |
100mA |
|
Charge Voltage |
5V |
|
Dimensions |
（product）/142mm×90mm×61mm（package） |
|
Weight |
50G（product）/150G（package） |
|
Operating System |
IOS, Win 7\Win 10\Android, etc |
|
Others |
Status indicator: 4-colorsLED (white :connection status, red :scan confirmation, blue:indicator, green:power Built-in buzzer |
2 Features
⚫ No need password, easy pairing.
⚫ Long distance transmission, stable 10 meters.
⚫ Long standby time, when fully charged. (8 hours charging, 1 year standby).
⚫ Fast transmission, plug and play.
⚫ Easy charging with phone charger.
⚫ Default Enter when date output, no need ma nual click.
⚫ Widely used for Windows, IOS, Android and other Bluetooth enabled devices.
3 Using Method (IOS for example)
1, Enable Bluetooth of phone or other devices (Pic1)
2, Pr ess blue button on reader for 1 2 s, the first light on the left of the reader blinks , then SYC
Bluetooth ” (Bluetooth name of reader) will show in searching list (PIC3)
| SKU | HX R58 B/ R58 D/ R58 C | |||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 1.000000 | |||||||||||||||||||||||||||||||||||||
| Customizable | No | |||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | |||||||||||||||||||||||||||||||||||||
| Warranty | 1 Year Warranty | |||||||||||||||||||||||||||||||||||||
| Country Specific | Universal | |||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | |||||||||||||||||||||||||||||||||||||
| Minimum Order Quantity | No | |||||||||||||||||||||||||||||||||||||
| Description | 1 Specifications
2 Features 3 Using Method (IOS for example)
1, Enable Bluetooth of phone or other devices (Pic1)
2, Pr ess blue button on reader for 1 2 s, the first light on the left of the reader blinks , then SYC
| New |
