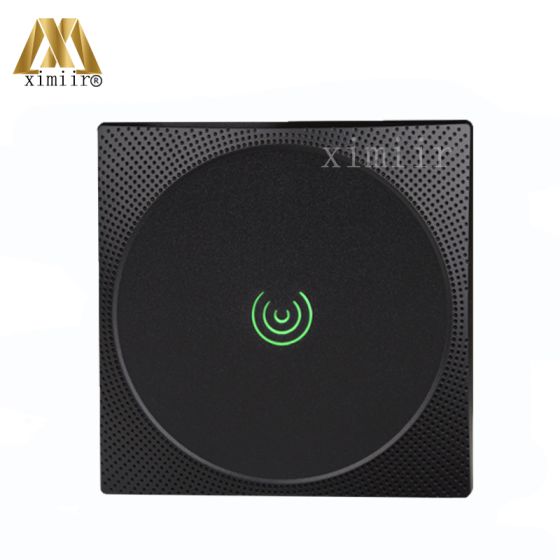

13.56MHZ IC Card MF Card Mi-fare Card Access Control Reader Wiegand34 Card Door Reader For Access Co
SKU
32661380810
Overview
13.56MHZ IC Card MF Card Mi-fare Card Access Control Reader Wiegand34 Card Door Reader For Access Control IP65 Waterproof...
Function:
• Read range of up to 10cm for RFID card and 5cm for Mifare card
• External LED control
• External Buzzer Control
• Indoor/Outdoor operation
• Solid Epoxy potted
• Waterproof IP65
• Reverse Polarity Protection
Card reader:
| Output Interface | Standard Wiegand34 |
| Operating Frequency | 13.56MHZ |
| Reader Card | IC Card |
| Transmitting Distance | WG<100M |
| Proximity Range | KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM |
| Power/Current | DC 6-14V / Max.70mA |
| Static Power Supply | <70mA |
| Temperature | -10°C~65°C |
| Relative Humidity | 10%-90% |
| Recognition Speed | <=200ms |
| Input Port | • External LED Control • External Buzzer Control |
| Communication distance | 100m |
| Communication way | Real time |
| LED | Red and Green LEDs |
| Beeper | Yes |
| Color | Black Color |
| Material | ABS+PVC Material (Black Resin for Water-Proof Function) |
| Waterproof | • KR600-E/M: IP65 • KR601-E/M: IP65 • KR602-E/M: IP64 |
| Dimension | 86*86*18(mm) |
| Package | 100pcs per carton. Carton Size: 43.5*56*23(cm) |
| Product Name | 13.56MHZ IC Card MF Card Mi-fare Card Access Control Reader Wiegand34 Card Door Reader For Access Co | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Function: • Read range of up to 10cm for RFID card and 5cm for Mifare card
• External LED control
• External Buzzer Control
• Indoor/Outdoor operation
• Solid Epoxy potted
• Waterproof IP65
• Reverse Polarity Protection
Card reader:
|
||||||||||||||||||||||||||||||||||||||||
| SKU | 32661380810 | ||||||||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No |
