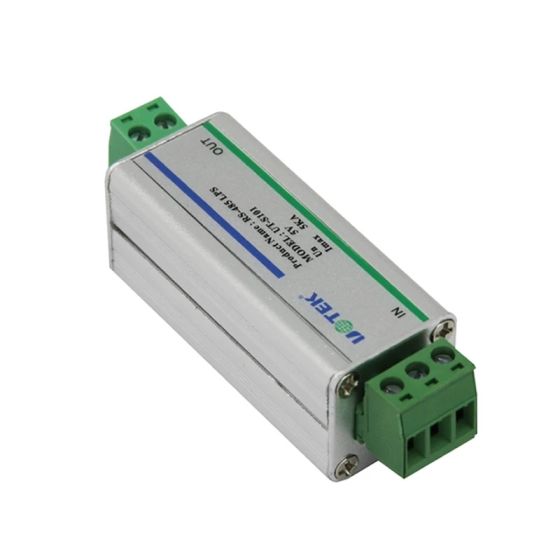

UTEK RS485 Surge Protector Thunder Lightning Arrester Protection Device Protection Device

SKU
RS485
Overview

UTEK RS485 Surge Protector Thunder Lightning Arrester Protection Device Protection Device

Rating voltage Un:5V

Operating voltage (Max DC) Uc: 6V

Operating voltage (Max AC) Uc: 4.2V

Current rating: 0.12A

Nominal discharging current(8/20 us)In:3KA

Max discharging current In:5KA

Limiting voltage Upl:≤11V

Inpedance Ro:10 Ohm

Capcitance Cll:≤80pF

Capcitance Cpe:≤140pF

Response time Ta:<1 ns

Operating temperature: -40℃~85℃

Testing standard: IEC61000-4-5

Testing level: X

Insulation resistance: >1MΩ

Insection loss (dB):≤0.5 dB

Housing protection: IP30

Dimension: 25 x 25 x 82mm

Material: shielded aluminum

Connect: terminal block (RS-485)

ESD protection level: 4

Transmission rate (BPS):10M

TB2HCkvwrRkpuFjSspmXXc.9XXa_!!1736826123TB2Fh6XwCXlpuFjy0FeXXcJbFXa_!!1736826123

More Information
SKU RS485
Weight 1.000000
Customizable No
With Built-in Battery No
Warranty 1 Year Warranty
Country Specific Universal
selling_potential 3
Condition New
