MILEVIEW Rfid Door Access Control System Kit Set + Electric Magnetic Door Lock +Rfid Keypad + Exit B

MILEVIEW Rfid Door Access Control System Kit Set + Electric Magnetic Door Lock +Rfid Keypad + Exit Button Free Shipping...

DIY RFID Access Control System Kit Set with Electric Strike Lock

Power Supply +Electric Magnetic Lock + 10 ID Keyfobs +Exit button

It enables you to control who has access to your building

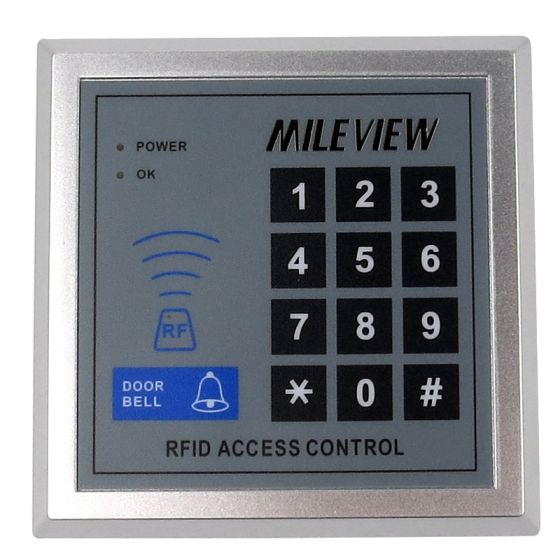

RFID Access controller

This is a NEW RFID Reader Access Control Keypad, which can update the safety of your home and office. It is perfect for Homes, Office, Factory and many other fields!
  • Contactless RFID transponder technology
  • Full programming from the keypad
  • Support Card, PIN, Card + PIN
  • Connection for external release button(Exit button)
  • Build in RFID reader
  • User capacity: 500users (each card only can add one password)
  • Does not need to connect on the computer, it can work alone.

Power supply

This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.
  • It controls electric lock directly.
  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Button.




Electric Magentic lock


It is a High-performance   180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly!




  • Voltage: 12V DC
  • Mode: NC (locked whilst power supply is operating), fail safe mode
  • Application: wood, iron doors
  • Main body dimensions: 171 x 39.2 x 22mm
  • Pack includes: electric magnetic lock, installation diagrams
  • Construction: stainless steel.
  • Performance Testing: 1000000 times aging test
  • Safety function: Built-in voltage spike suppressor
  • Anti-Residual Magnesium Designed
  • Weight: 1.3kg

125Khz RFID Keyfobs

These are 10pcs 125KHz RFID Proximity Keyfobs, they can work with the product which has 125Khz RFID card reader.
  • Operation Frequency: 125KHz;


  • Reading distance: 8-10cm;


  • Each keyfob has an uniqe ID number.

Exit Button

This is a Exit Button for Access control use,when you want to go out, you just need to press this Exit Button, then you can go out:

  • Maximun Power Rating: 36 VDC 3A-5A output
  • Performance Testing: 1000000 times aging test.

Access Controller Specification

  • Wiring connection: Electric Lock, Exit Button
  • Working Voltage: DC 12V
  • Card Type: ID card
  • Frequency: 125Khz
  • Reading distance: 4-15cm
  • Dimension: 88mm×88mm×18mm

Power supply Specification

  • AC input: Standard AC100V-240V 50-60HZ
  • DC output: Stabilivolt DC12V/ 3 A
  • Package Dimensions: 117 x 68 x 32mm



Exit Button

  • Opening device: Normal Open
  • Power Rating: 3A/36VDC
  • Faceplate Dimension: 85Lx85W (mm)
  • Material: Hard Plastic








For  Netherlands, Belgium, France, Spain, Austria, Italy, United Kindom, Poland, Czech Republic, Hungary, Ireland, Greece, Romania, Slovenia, Slovakia Republic, Sweden, Norway etc.European Union Countries,


If you select "Seller's Shipping Method" , then it does not have any taxes and extra cost for the order. The delivery time is about 10-15 working days. The order has tracking number. It is local UPS that will delivery the package to your door.



We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW before placing your order, please confirm details with us if you have request on items.


1. The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

2. If your address is remote area of DHL / FEDEX fast shipping and you want DHL/FEDEX shipping, then you needs to pay extra 30USD for the remote area cost.


1. We will refund you if you return the items within 30 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions.

 2. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.  The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.

Warranty & Maintenance

Free Replacement:

If you receive a not-as-described (e.g. defective, incorrect, part missing) item, please contact us when you get the item. We will arrange a replacement as soon as the case is confirmed.

Suppliers Warranty:

We offer ONE YEAR warranty on this product. If your item has any warranty issue, please contact us for a satisfying solution.


Your satisfaction and positive feedback is very important to us.  Please leave positive feedback and 5 stars if you are satisfied with our items and services.

If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.  We will do our best to solve any problems and provide you with the best customer services.
