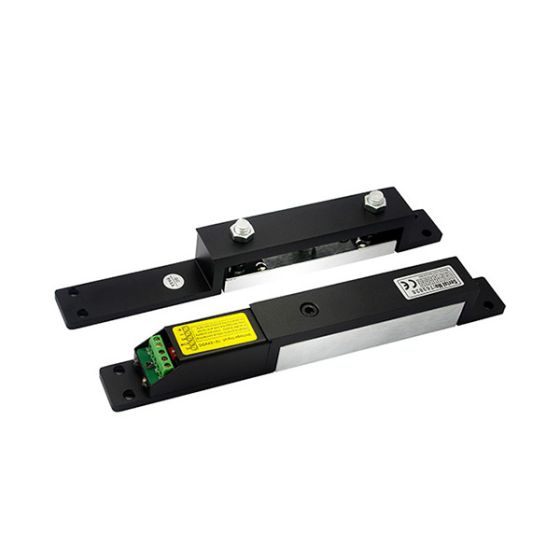

2700lbs (1200kg) High Security Electric Door Lock with Delay and Signal Output

2700lbs(1200kg) High Security Electric door lock With delay and signal output
Specification
:
Holding Force
Max 2000lbs(1260kg)
Lock Status Sensors
Dry contact NO,NC,COM
Relock Delay Timer
0,3,6,9 seconds open time delay is adjustable
Rated Operating Voltage
DC 12V or 24V (selectable)
Current consumption
[email protected]
/
[email protected]
Optional Functions
LED,Buzzer
Surface finish for magnet
Zinc plated
Surface finish for armature plate
Zinc plated
Ambient temperature in °C
-10~+55ºC(14-131F)
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)
267L*30W*34H(mm)
Armature Plate Dimensions(L x W x D)
267L*30W*34H(mm)
Weight in kg
2.3kg
CE-mark for building
Yes
Rohs-mark for building
Yes
NE-2000,Embedded mounted,super shear lock,integrated design without external board,exquisite appearance with high safety coefficient,support 2700lbs shear force,suitable all kinds of doors,magnetic lock was embedded into the middle or above of the door frame,use magnetic force to catch up door leaf,elegant appearance.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special residual magnetic design makes automatic access control safer and more convenient.
Function:
1. Particular shear design,passed 2000lbs super static linear tension tests.
2. Anti-residual magnetic design,keep constant tension.
3. Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4. Wear materials, durable.
5. Electromagnetic suction work completely, there is no mechanical failure.
6. Shell with high strength alloy material, anode hardening treatment.
7. lock body with double insulation treatment.
8. Through the European CE and ROHS, MA certification in China.
Packaging & Shipping
Packaging: Neutral Package.
Shipping: Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work days after receipt of  remittance.
Our Services
For the non-human factors of product quality issues, NORDSON offer three-year warranty services for electromagnetic lock; 3-year warranty for access control panel, electric bolt and electric strike; 1 year warranty for exit button, bracket, and power supply. The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
Model NO. : NE-2000 Electric door lock
Holding Force : Max 2000lbs(1260kg)
Lock Status Sensors : Dry Contact No,Nc,COM
Relock Delay Timer : 0,3,6,9 Seconds Open Time Delay Is Adjustable
Current Consumption : [email protected] / [email protected]
Optional Functions : LED,Buzzer
Surface Finish for Magnet : Zinc Plated
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L X W X D) : 267L*30W*34h(mm)
Armature Plate Dimensions(L X W X D) : 267L*30W*34h(mm)
Weight in Kg : 2.3kg
Transport Package : Neutral Packing
Specification : CE, ROHS
Trademark : Nordson
Origin : Shenzhen, China
HS Code : 123456
Production Capacity : 2.3kg
Holding Force  : Max 2000lbs(1260kg)
Lock Status Sensors  : Dry contact NO,NC,COM
Relock Delay Timer : 0,3,6,9 seconds open time delay is adjustable
Rated Operating Voltage  : DC 12V or 24V (selectable)
Current consumption : [email protected] / [email protected]
Optional Functions  : LED,Buzzer
Surface finish for magnet : Zinc plated
Surface finish for armature plate : Zinc plated
Ambient temperature in °C  : -10~+55ºC(14-131F)
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) : 267L*30W*34H(mm)
Armature Plate Dimensions(L x W x D) : 267L*30W*34H(mm)
Weight in kg : 2.3kg
CE-mark for building : Yes
Rohs-mark for building : Yes
