Stainless Steel Waterproof IP68 Outdoor 12/24VDC 280kg 600lbs Sliding Door Lock for Access Control System

Stainless Steel Waterproof IP68 outdoor 12/24VDC 280kg 600lbs sliding door lock for access control system
Overview:
NW-280 single door embedded magnetic lock,Stainless steel,Waterproof,specially used to out glass door,wodden door,metal door,fire doors,sliding door.Hoisting design,saves time and power when installation,use magnetic force to catch up door leaf,safe and reliable.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Function:
1.Waterproof,outdoor magnetic lock,passed 600lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is no mechanical failure.
6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.
8.Throughthe European CE and ROHS, MA certification in China.
Specification:
Holding Force
280kg (600Lbs)
Waterproof grade
IP65
Lock Status Sensors
NO
Rated Operating Voltage
12/24VDC
Current consumption
12V/480mA
Optional Functions
Relock Delay Timer,Buzzer
Surface finish for magnet
Stainless steel
Surface finish for armature plate
Stainless steel
Ambient temperature in °C
-10~+55ºC(14-131F)
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)

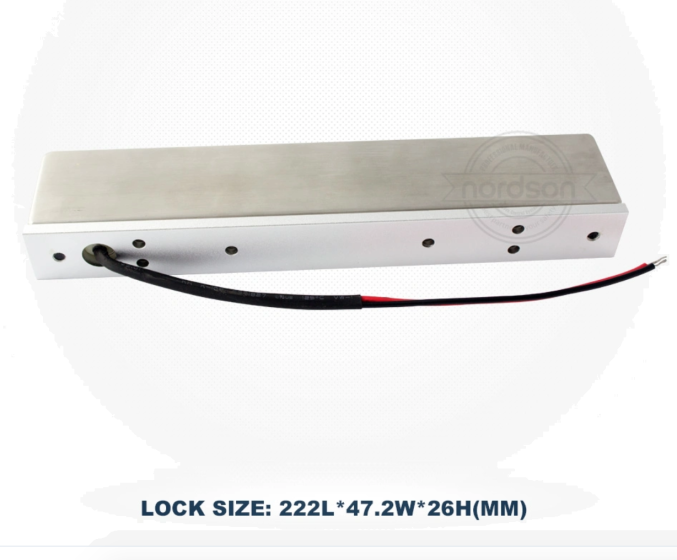

222L*47.2W*26H(mm)
Armature Plate Dimensions(L x W x D)
180L*38W*13H(mm)
Weight in kg
1.95kg
CE-mark for building
Yes
Rohs-mark for building
Yes
Model NO. : NW-280 sliding door lock
Waterproof Grade : IP65
Lock Status Sensors : No
Optional Functions : Relock Delay Timer,Buzzer
Surface Finish for Magnet : Stainless Steel
Magnets Dimensions(L X W X D) : 222L*47.2W*26h(mm)
Armature Plate Dimensions(L X W X D) : 180L*38W*13h(mm)
Transport Package : Neutral Packing
Specification : CE, ROSH
Trademark : Nordson
Origin : Shenzhen, China
HS Code : 123456
Production Capacity : 1.95kg
Holding Force : 280kg (600Lbs)
Waterproof grade : IP65
Lock Status Sensors : NO
Rated Operating Voltage : 12/24VDC
Current consumption : 12V/480mA
Optional Functions : Relock Delay Timer,Buzzer
Surface finish for magnet : Stainless steel
Surface finish for armature plate : Stainless steel
Ambient temperature in °C : -10~+55ºC(14-131F)
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) : 222L*47.2W*26H(mm)
Armature Plate Dimensions(L x W x D) : 180L*38W*13H(mm)
Weight in kg : 1.95kg
CE-mark for building : Yes
Rohs-mark for building : Yes
