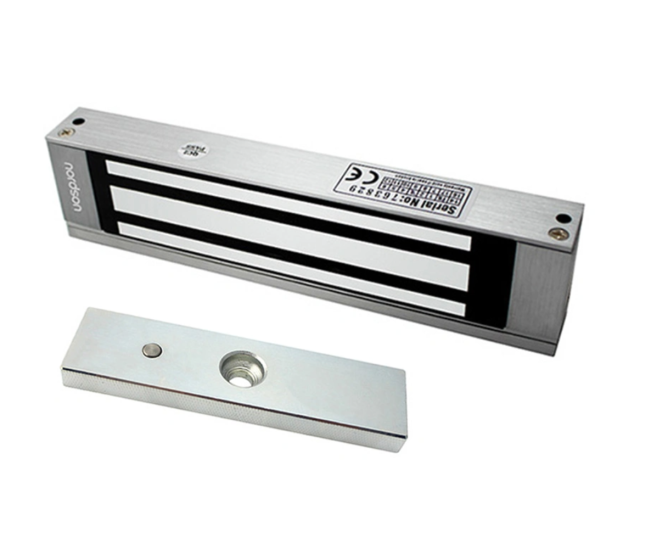

Five-Year Warranty Pure Copper Coil 180kg/350lbs Single Door Fail-Safe Sliding Door Lock for Access Control

350lbs DC12V/24V Magnetic Door Lock  Electric Lock with CE ROHS
Without Signal Output
Voltage:DC12V or DC24V
LED&Waterproof IP65 Customization Available
Holding Force: 180kg(350Lbs)
Lock Size: 170L*35W*21H(mm)
Armature Plate:130L*33W*9.3H(mm)
Current Draw: 12V/500mA 24V/250mA
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
Weight: 1.1kg
Packaging & Shipping
Packaging: Neutral Package.
Shipping:    Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work days after receipt of remittance.
Our Services
For the non-human factors of product quality issues, NORDSON offer three-year warranty services for electromagnetic lock; 3-year warranty for access control panel, electric bolt and electric strike; 1 year warranty for exit button, bracket, and power supply. The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
Model NO. : NE-180 sliding door lock
Current Draw : 12V/500mA 24V/250mA
Lock Status Sensors : No/Nc/COM
Optional Functions : LED,Relock Delay Timer,Buzzer
Rated Operating Voltage : 12/24VDC
Surface Finish for Magnet : Zinc Plated
Surface Finish for Armature Plate : Zinc Plated
Ce/RoHS-Mark for Building : Yes
Transport Package : Neutral Packing
Specification : CE, ROSH
Trademark : Nordson
Origin : Shenzhen, China
HS Code : 123456
Production Capacity : 1.1kg
