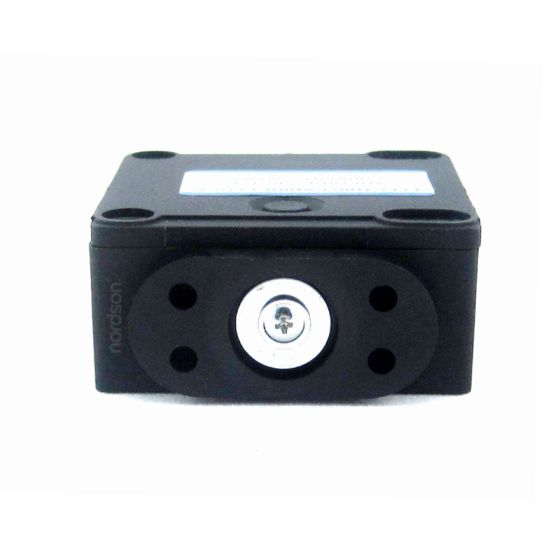

Professional Design Fail-Secure DC12V Cabinet Door Lock for File and Document Cabinets

Professional design Fail-Secure DC12V cabinet door lock for file and document cabinets
Overview:
NI-16 Hidden Cabinet Lock suitable for all kinds of boxes, cabinets and other occasions where it should be open frequently. Combine with safe box. cabinet storage etc in demand shopping malls.
Specification :
Version
Fail locked(the bolt is locked when the current is off)
Diameter dead bolt
ø7mm,18mm
Shear strength
100Lbs/50KG
Rated Operating Voltage
DC 12V or 24V (Customization Available)
Standby Current
320mA
Optional Functions
Door Status Sensors
Face place material
ABS,
Stainless steel
Surface Temp
Low Temperature
Ambient temperature in °C
-10°C - +55°C
Suitable for
Secure lcoking of furniture (Wooden & Aluminum& Metal Furniture frame)
Dimensions(L x W x H)
55mmL×55mmW×25mmH
Weight in kg
0.12kg
CE-mark for building
YES
Rohs-mark for building
YES
Packaging & Shipping
Packaging:  Neutral Package.
Shipping:     Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work                           days after receipt of    remittance.
Our Services
For the non-human factors of product quality issues, NORDSON offer three-year warranty services for electromagnetic lock;
3-year warranty for access control panel, electric bolt and electric strike;
1 year warranty for exit button, bracket, and power supply.
The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
Model NO. : NI-16-2 cabinet door lock
Customized : Customized
Condition : Used
Mode : Fail Locked(The Bolt Is Locked When The Current Is
Input Voltage : 12VCD
Operating Current : 0.25A
Dimensions : 41*35*19mm
Weight : 0.11kg
Diameter Dead Bolt : Diameter 7mm,18mm
Shear Strength : 100lbs/50kg
Rated Operating Voltage : 12V or 24V (Customization Available)
Optional Functions : Door Status Sensors
Face Place Material : ABS,Stainless Steel
Transport Package : Standard Package
Specification : 27*6.5*6
Trademark : Nordson
Origin : Shenzhen
HS Code : 1
Production Capacity : 1000PCS/Week
Version : Fail locked(the bolt is locked when the current is off)
Diameter dead bolt : ø7mm,18mm
Shear strength : 100Lbs/50KG
Rated Operating Voltage : DC 12V or 24V (Customization Available)
Standby Current : 320mA
Optional Functions : Door Status Sensors
Face place material : ABS,Stainless steel
Surface Temp : Low Temperature
Ambient temperature in °C : -10°C - +55°C
Suitable for : Secure lcoking of furniture (Wooden & Aluminum& Metal Furniture frame)
Dimensions(L x W x H) : 55mmL×55mmW×25mmH
Weight in kg : 0.12kg
CE-mark for building : YES
Rohs-mark for building : YES
