2n Relay Outputs Metal Keyboard 4-Operation Mode Metal Metal Single Door RFID Elevator Access Control

2n relay outputs Metal keyboard 4-Operation Mode Metal metal single door rfid elevator access control
Overview

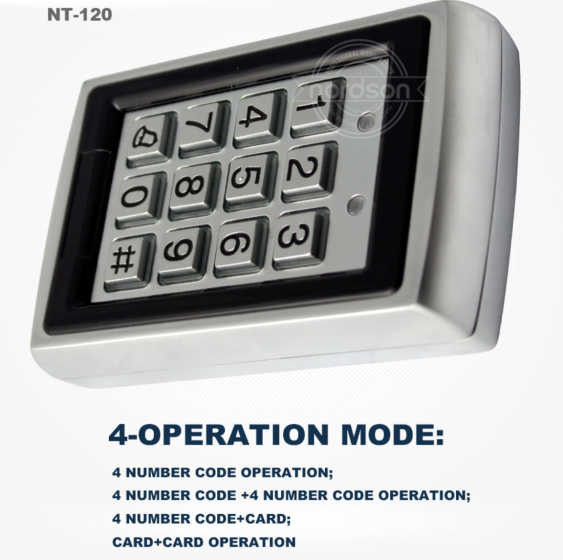

NT-120 Waterproof Metal Access Control, for single door entrance, with card reader and keyboard input in one function, easy to install, easy to use, stable performance, built-in data storage, quickly identify proximity readers with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system applications
Function
1.completely independent access control, can directly implement user passwords, card management and other functions 2.keyboard input, support card, password, card plus password, password + password to open the door in four3.supports two modes of operation, normal mode and safe mode4.supports three user levels 1. Ordinary users 2. Security User 3. Advanced users5.reader sensor with high sensitivity, less than 0.1 seconds6.supports a password to open the door, stand-alone card capacity up to 5007.high-quality nickel alloy metal material, having a tamper alarm and door sensor alarm functions8.exit button and doorbell input function9.the surge absorption protection
Specification
Verification Method
4-Operation Mode:
4 number code Operation(Support 500 users),4 number code +4 number code Operation,4 number code+Card , Card+Card Operation
keyboard
Metal buttons with luminous
Capacity Of Cards
500 Users
Door Open Time
0-99 seconds
Proximity Range
3-15CM
Frequency
EM-ID 125KHz or 13.56MHz
Voltage
DC 12V
Current Drain
<90mA
Access Control Interface
Electric lock, Door sensor, Exit button, alarm, DoorBell
Relay output
2n relay outputs
Operating Temperature
0°C - 45°C
Operating Humidity
20%-80%
Dimensions
120Lx76Dx27W(mm)
Gross Weight
0.41kg
Model NO. : NT-120 rfid elevator access control
RFID Reader : Access Control System
Current Drain : <90mA
Type of Card : Em Card,125kHz
Card Reading Distance : Max Distance 6.5c
Operating Temperature : -20c-60c
Operating Humidity : 10%-90%
Easy Operation : Simple Programming
Relay : 2n Relay Outputs
4-Operation Mode : Card, Code, Card Code, Card Card
Dimensions : 120lx76dx27W(mm)
Transport Package : Neutral Packing
Specification : CE
Trademark : Nordson
Origin : Guangdong
HS Code : 123456
Production Capacity : 10000PCS/Per Month
Verification Method : 4-Operation Mode:4 number code Operation(Support 500 users),4 number code +4 number code Operation,4 number code+Card , Card+Card Operation
keyboard : Metal buttons with luminous
Capacity Of Cards : 500 Users
Door Open Time : 0-99 seconds
Proximity Range : 3-15CM
Frequency : EM-ID 125KHz or 13.56MHz
Voltage : DC 12V
Current Drain : <90mA
Access Control Interface : Electric lock, Door sensor, Exit button, alarm, DoorBell
Relay output : 2n relay outputs
Operating Temperature : 0°C - 45°C
Operating Humidity : 20%-80%
Dimensions : 120Lx76Dx27W(mm)
Gross Weight : 0.41kg
