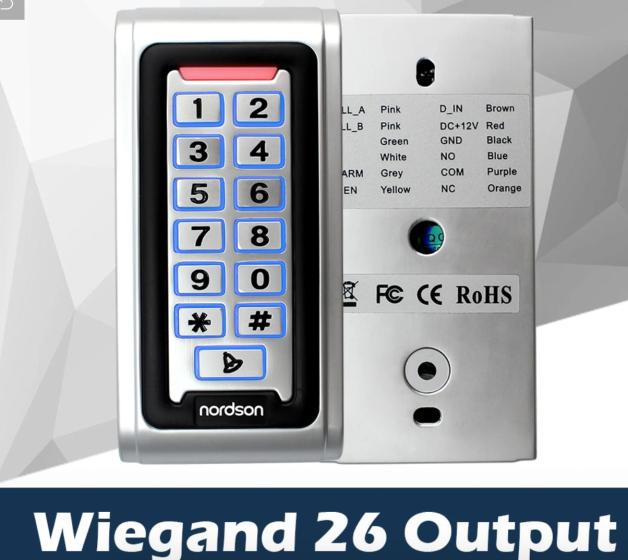

Waterproof IP68 Wiegand Ouput Metal Single Door RFID Access Control with Luminous Keypad

Waterproof IP68 Wiegand ouput Metal single door rfid access control with luminous keypad
Specification:
Verification Method
Card,
Password,Card+
password
keyboard
Metal buttons with luminous
Capacity Of Cards
2000 Users
Door Open Time
0-99
seconds
Proximity Range
3-15CM
Frequency
EM-ID 125KHz or 13.56MHz
Wiegand Signal
Output&In
tput (Support external wg26 card reader and
can be used as a card reader
)
Voltage
DC 12V
Access Control Interface
Electric lock, Door sensor, Exit button, alarm, DoorBell
Relay output
2n relay outputs
Operating Temperature
0°C - 45°C
Operating Humidity
20%-80%
Dimensions
120x56x18(mm) (L*W*D)
Gross Weight
0.52k
Overview:
NT-109
Waterproof metal Standalone Access Controller, for single door entrance, with card reader and keyboard input in one function, easy to install, easy to use, stable performance. Support Wiegand output&input, can be used as a card reader. Built-in data memory, quickly identify proximity readers, with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system application demand.
Function:
1.completely independent access control, directly through the keyboard to achieve password, card management and other functions.
2.supports Wiegand 26 output&input, can be used as a card reader.
3.support card, password, card with password three seed certification management.
4.reader sensor with high sensitivity, less than 0.1 seconds.
5.supports a password to open the door, stand-alone card capacity up to 2000.
6.high-quality stainless steel materials, with tamper alarm and door sensor alarm functions.
7.exit button and doorbell input function.
8.the surge absorption protection.
Model NO. : NT-109 rfid access control
Verification Method : Card,Password,Card+Password
Keyboard : Metal Buttons with Luminous
Capacity of Cards : 2000 Users
Door Open Time : 0-99 Seconds
Proximity Range : 3~15cm
Frequency : Em-ID 125kHz or 13.56MHz
Wiegand Signal : Output&Intput
Voltage : DC12V
Access Control Interface : Electric Lock, Door Sensor, Exit Button, Alarm, Do
Dimensions : 120*56*18(mm) (L*W*D)
Transport Package : Neutral Packing
Specification : CE
Trademark : Nordson
Origin : Guangdong
HS Code : 123456
Production Capacity : 10000PCS/Per Month
Verification Method : Card,Password,Card+password
keyboard : Metal buttons with luminous
Capacity Of Cards : 2000 Users
Door Open Time : 0-99 seconds
Proximity Range : 3-15CM
Frequency : EM-ID 125KHz or 13.56MHz
Wiegand Signal : Output&Intput (Support external wg26 card reader and can be used as a card reader)
Voltage : DC 12V
Access Control Interface : Electric lock, Door sensor, Exit button, alarm, DoorBell
Relay output : 2n relay outputs
Operating Temperature : 0°C - 45°C
Operating Humidity : 20%-80%
Dimensions : 120x56x18(mm) (L*W*D)
Gross Weight : 0.52k
