ANSI/ISO Standard ATM Magnetic Card Access Control
SKU
NORDS10092222
Overview

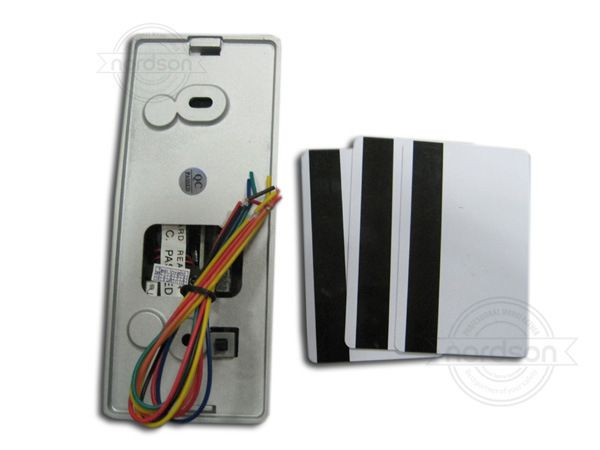

ANSI/ISO Standard ATM Magnetic Card Access Control
ANSI/ISO standard ATM Magnetic Card Access Control
Main Characteristic:
Magnetic head meets the ANSi/ISO standard.
There is no card capacity limitation
The metal outer cover of alloy of zinc is sturdy and duable, position fixed with stable screws.
unique anti-interference design to fit a variety of environment installation.
Adopt import the alloy magnetic head, wear-resisting,high sensitivity, support different card feeding speed.
Characterized with large capacity of lock output module, it can link with various electric locks directly.
Dry contact signal output, can be linked with various autodoor,access controller and electric lock simultaneously.
With time difference setting to ensure the autodoor runs smoothly.
Power supply:DC12V
Output current of electric lock: 3A( 12v)
Static current:22MA
Operation current:40MA
Maintain open time: 1- 10S adjustable
Time difference for unlocking and open door: 0.5S
Magnetic card standard: ISO7811-7815
Card feeding speed:10-120cm/s
Operation temperature: -42-45degree
Environment humidity:10~90%RH
Dimension:138mm(L)x56mm(W)x32mm(H)
Weight:400g
Model NO. : NT-M2000 Magnetic Card Access Control
Maintain Open Time : 1- 10s Adjustable
Magnetic Card Standard : ISO7811-7815
Time for Unlocking and Open Door : 0.5s
Card Feeding Speed : 10-120cm/S
Operation Temperature : -42-45degree
Environment Humidity : 10~90%Rh
Transport Package : Neutral Packing
Specification : CE
Trademark : Nordson
Origin : Guangdong
HS Code : 123456
Production Capacity : 10000PCS/Per Month
Main Characteristic:
Magnetic head meets the ANSi/ISO standard.
There is no card capacity limitation
The metal outer cover of alloy of zinc is sturdy and duable, position fixed with stable screws.
unique anti-interference design to fit a variety of environment installation.
Adopt import the alloy magnetic head, wear-resisting,high sensitivity, support different card feeding speed.
Characterized with large capacity of lock output module, it can link with various electric locks directly.
Dry contact signal output, can be linked with various autodoor,access controller and electric lock simultaneously.
With time difference setting to ensure the autodoor runs smoothly.
Power supply:DC12V
Output current of electric lock: 3A( 12v)
Static current:22MA
Operation current:40MA
Maintain open time: 1- 10S adjustable
Time difference for unlocking and open door: 0.5S
Magnetic card standard: ISO7811-7815
Card feeding speed:10-120cm/s
Operation temperature: -42-45degree
Environment humidity:10~90%RH
Dimension:138mm(L)x56mm(W)x32mm(H)
Weight:400g
Model NO. : NT-M2000 Magnetic Card Access Control
Maintain Open Time : 1- 10s Adjustable
Magnetic Card Standard : ISO7811-7815
Time for Unlocking and Open Door : 0.5s
Card Feeding Speed : 10-120cm/S
Operation Temperature : -42-45degree
Environment Humidity : 10~90%Rh
Transport Package : Neutral Packing
Specification : CE
Trademark : Nordson
Origin : Guangdong
HS Code : 123456
Production Capacity : 10000PCS/Per Month
| Description | ANSI/ISO standard ATM Magnetic Card Access Control Main Characteristic: Magnetic head meets the ANSi/ISO standard. There is no card capacity limitation The metal outer cover of alloy of zinc is sturdy and duable, position fixed with stable screws. unique anti-interference design to fit a variety of environment installation. Adopt import the alloy magnetic head, wear-resisting,high sensitivity, support different card feeding speed. Characterized with large capacity of lock output module, it can link with various electric locks directly. Dry contact signal output, can be linked with various autodoor,access controller and electric lock simultaneously. With time difference setting to ensure the autodoor runs smoothly. Power supply:DC12V Output current of electric lock: 3A( 12v) Static current:22MA Operation current:40MA Maintain open time: 1- 10S adjustable Time difference for unlocking and open door: 0.5S Magnetic card standard: ISO7811-7815 Card feeding speed:10-120cm/s Operation temperature: -42-45degree Environment humidity:10~90%RH Dimension:138mm(L)x56mm(W)x32mm(H) Weight:400g Model NO. : NT-M2000 Magnetic Card Access Control Maintain Open Time : 1- 10s Adjustable Magnetic Card Standard : ISO7811-7815 Time for Unlocking and Open Door : 0.5s Card Feeding Speed : 10-120cm/S Operation Temperature : -42-45degree Environment Humidity : 10~90%Rh Transport Package : Neutral Packing Specification : CE Trademark : Nordson Origin : Guangdong HS Code : 123456 Production Capacity : 10000PCS/Per Month |
|---|---|
| SKU | NORDS10092222 |
| Weight | 1.000000 |
| selling_potential | 3 |
| With Built-in Battery | No |
| Condition | New |
