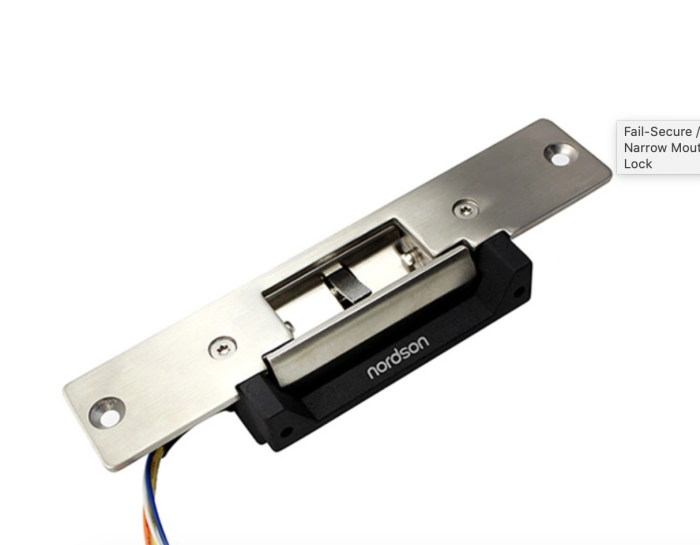

Fail-Secure / Fail-Safe 12VDC Stainless Steel Narrow Mouth ANSI Stainless Steel Door Lock

SKU

NORDS10092225

Be the first to review this product

Special Price US$22.68 Regular Price US$25.20

In stock

Overview

Fail-Secure / Fail-Safe 12VDC Stainless Steel Narrow Mouth ANSI Stainless Steel Door Lock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Fail-Secure / Fail-Safe 12VDC Stainless Steel Narrow Mouth ANSI stainless steel door lock
Overview:
NJ-320A is heavy-duty-type ANSI standard electric strike for US market.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
Specification:
Version
NJ-320A:Fail-locked(the strike is locked when the current is off)
NJ-320B:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength
1600Lbs(800kg)
Lock Status Sensors
NO
Rated Operating Voltage
DC 12V
Standby Current
220mA
Optional Functions
Lock Status Sensors
Face place material
Stainless Steel
Surface Temp
Low Temperature
Ambient temperature in °C
-10°C - +55°C
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal door
Strike Plate Dimensions(L x W x D)
124Lx32Wx36H(mm)
Weight in kg
0.38kg
CE-mark for building
YES
Rohs-mark for building
YES
Model NO. : NJ-320B-L stainless steel door lock
Weight : 0.6kg
Current Nj-320A-L : 220m
Transport Package : Neutral Packing
Specification : CE, ROHS GSG, GMP
Trademark : Nordson
Origin : Guangdong China
HS Code : 123456
Production Capacity : 20000
Version : NJ-320A:Fail-locked(the strike is locked when the current is off)NJ-320B:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength : 1600Lbs(800kg)
Lock Status Sensors : NO
Rated Operating Voltage : DC 12V
Standby Current : 220mA
Optional Functions : Lock Status Sensors
Face place material : Stainless Steel
Surface Temp : Low Temperature
Ambient temperature in °C : -10°C - +55°C
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal door
Strike Plate Dimensions(L x W x D) : 124Lx32Wx36H(mm)
Weight in kg : 0.38kg
CE-mark for building : YES
Rohs-mark for building : YES

More Information

More Information
Product Name	Fail-Secure / Fail-Safe 12VDC Stainless Steel Narrow Mouth ANSI Stainless Steel Door Lock
Description	Fail-Secure / Fail-Safe 12VDC Stainless Steel Narrow Mouth ANSI stainless steel door lock Overview: NJ-320A is heavy-duty-type ANSI standard electric strike for US market.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc. Specification: Version NJ-320A:Fail-locked(the strike is locked when the current is off) NJ-320B:Fail-unlocked(the strike is unlocked when the current is off) Shear strength 1600Lbs(800kg) Lock Status Sensors NO Rated Operating Voltage DC 12V Standby Current 220mA Optional Functions Lock Status Sensors Face place material Stainless Steel Surface Temp Low Temperature Ambient temperature in °C -10°C - +55°C Suitable for Wooden & Aluminum & Glass & Fireproof &Metal door Strike Plate Dimensions(L x W x D) 124Lx32Wx36H(mm) Weight in kg 0.38kg CE-mark for building YES Rohs-mark for building YES Model NO. : NJ-320B-L stainless steel door lock Weight : 0.6kg Current Nj-320A-L : 220m Transport Package : Neutral Packing Specification : CE, ROHS GSG, GMP Trademark : Nordson Origin : Guangdong China HS Code : 123456 Production Capacity : 20000 Version : NJ-320A:Fail-locked(the strike is locked when the current is off)NJ-320B:Fail-unlocked(the strike is unlocked when the current is off) Shear strength : 1600Lbs(800kg) Lock Status Sensors : NO Rated Operating Voltage : DC 12V Standby Current : 220mA Optional Functions : Lock Status Sensors Face place material : Stainless Steel Surface Temp : Low Temperature Ambient temperature in °C : -10°C - +55°C Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal door Strike Plate Dimensions(L x W x D) : 124Lx32Wx36H(mm) Weight in kg : 0.38kg CE-mark for building : YES Rohs-mark for building : YES
SKU	NORDS10092225
Weight	1.000000
selling_potential	3
With Built-in Battery	No
Condition	New
