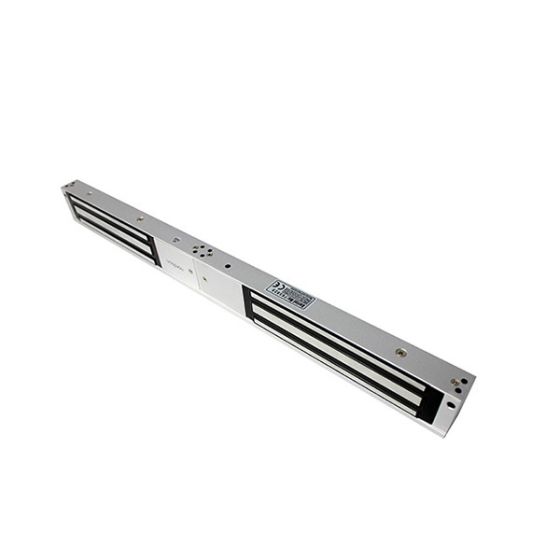

High Quality DC12V 24V Fail-Safe Power to Lock Double Magnetic Lock with Signal Output

High Quality DC12V 24V fail-safe power to lock Double Magnetic Lock with Signal output
product overview:
NE-180D,double door magnetic lock,specially used to normal glass door,wodden door,metal door,fire doors, small doors.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
product function:
H
olding Force
2x180kg (350lbs)
Optional Functions
LED,
Lock Status Sensors,
Relock Delay Timer,Buzzer
Lock Status Sensors
NO
Rated Operating Voltage
12/24VDC
Current consumption
500mA / 12V or 250mA / 24V
Surface finish for magnet
Zinc plated
Surface finish for armature plate
Zinc plated
Ambient temperature in °C
-10~+55ºC(14-131F)
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)
340Lx35Wx21H(mm)
Armature Plate Dimensions(L x W x D)
130Lx27Wx9.3H(mm)
Weight in kg
2.2kg
CE-mark for building
Yes
Rohs-mark for building
Yes
Packaging & Shipping
Packaging: Neutral Package.
Shipping:    Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work days after receipt of remittance
Our Services
For the non-human factors of product quality issues, NORDSON offer three-year warranty services for electromagnetic lock; 3-year warranty for access control panel, electric bolt and electric strike; 1 year warranty for exit button, bracket, and power supply. The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
Nordson History
2006 Nordson was founed.
We were agent to sell electric locks andaccess control system products.
2008 Nordson Electronicsopened a factory.
We supplied electric locks for buildingprojects and customized production for OEM customers.
2010 NordsonElectronics Co., Limited was founded in HongKong.
We fully entered theHongKong market.
2012 InternationalTrade Department of Nordson Electronics(Shenzhen) is founded.
We were absorbedto oversea maketing and development.
2014 The trademark "Nordson"was registered in China mainland.
We wereconcentrated on product development and branding.
2015 We are opening upa new age of access control.
Model NO. : NE-180DS-1 Double Magnetic Lock
Ne-180d : (Without Signal Output)
Voltage : DC12V or DC24V (Adjustable)
Current Draw : 12V/480max2 24V/240max2
Lock Size : 340L*35W*21h(mm)
Holding Force : 180kg*2
Optional Functions : LED,Lock Status Sensors,Relock Delay Timer,Buzze
Rated Operating Voltage : 12/24VDC
Current Consumption : 500mA / 12V or 250mA / 24V
Surface Finish for Magnet : Zinc Plated
Ambient Temperature in °c : 10 Below Zero - 55 Degreee (14-131f)
Transport Package : Neutral Packing
Specification : CE, ROSH
Trademark : Nordson
Origin : Shenzhen, China
HS Code : 123456
Production Capacity : 2.4kg
Holding Force : 2x180kg (350lbs)
Optional Functions : LED,Lock Status Sensors,Relock Delay Timer,Buzzer
Lock Status Sensors : NO
Rated Operating Voltage : 12/24VDC
Current consumption : 500mA / 12V or 250mA / 24V
Surface finish for magnet : Zinc plated
Surface finish for armature plate : Zinc plated
Ambient temperature in °C : -10~+55ºC(14-131F)
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) : 340Lx35Wx21H(mm)
Armature Plate Dimensions(L x W x D) : 130Lx27Wx9.3H(mm)
Weight in kg : 2.2kg
CE-mark for building : Yes
Rohs-mark for building : Yes
