Metal Network Fingerprint & RFID Access Controller with Wiegand Output to Connect with Control Panel

Metal Network Fingerprint & RFID Access Controller with Wiegand output to connect with control panel
Overview:
FR-SF101 Metal Network Fingerprint Access Control & Time Attendance, for single door entrance, with RFID card reader function, easy to install, easy to use, stable performance. Support Wiegand output to connect with control panel.FR-SF101 with international standard 86 bottom box quick installation,Built-in data memory, quickly identify finger, with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system application demand.
Function:
1.Metallic Casing
2.Elegant fingerprint sensor
3.International standard 86 bottom box,Easy installation, safe and reliable
4.Wiegand out to connect with control panel
5.The cover protect the fingerprint sensor from dust and water
6.Simple and convenient operation method with full audio prompt
7.ID card standard, IC 13.56HZ card optional
8.Full door lock control system
9.Audio prompt guide the user to operate
Specification:
Type
FR-SF101 Metal Network Fingerprint Access Control & Time Attendance
Fingerprint Capacity
200
RFID Card
100 EM(125 KHz)
Record Capacity
30,000
Communication
RS232/485,USB-Host
Full Access Control Features
Access control interface for electric lock, door sensor, exit button, alarm and doorbell
Optional Functions
Mifare(optional)
Wiegand Signal
Output
Authentication
Finger / Card
Power Supply
DC 12V
Verification Speed
≤0.5 sec
Operating Temp.
-10 °C~50 °C (14°F ~ 122°F)
Operating Humidity
20%-80%
Dimension
120mm×120mm×35mm (W×H×D)
Gross Weight
1.25kg

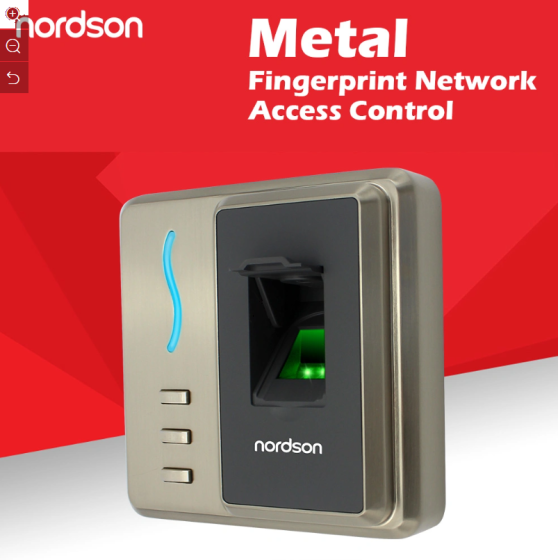

Details of product pictures:
Model NO. : FR-SF101
Item : Fingerprint & RFID Access Controller
Finger Capacity : 200
ID Card Capacity : 100
Communication : USB Flash Disk ,RS232/485
Signal : Support Wiegand 26/34 Output
Verification Method : Fingerprint, ID Card
Dimension : 120X120X35mm
Record Capacity : 30,000
Wiegand Signal : Output
Shell : Zinc Alloy
Transport Package : Standard CTN Box for Biometric Access Control
Specification : CE
Trademark : Nordson
Origin : Shenzhen, China
HS Code : 8543709990
Production Capacity : 10000/ Month
Type : FR-SF101 Metal Network Fingerprint Access Control & Time Attendance
Fingerprint Capacity : 200
RFID Card : 100 EM(125 KHz)
Record Capacity : 30,000
Communication : RS232/485,USB-Host
Full Access Control Features : Access control interface for electric lock, door sensor, exit button, alarm and doorbell
Optional Functions : Mifare(optional)
Wiegand Signal : Output
Authentication : Finger / Card
Power Supply : DC 12V
Verification Speed : ≤0.5 sec
Operating Temp. : -10 °C~50 °C (14°F ~ 122°F)
Operating Humidity : 20%-80%
Dimension : 120mm×120mm×35mm (W×H×D)
Gross Weight : 1.25kg
