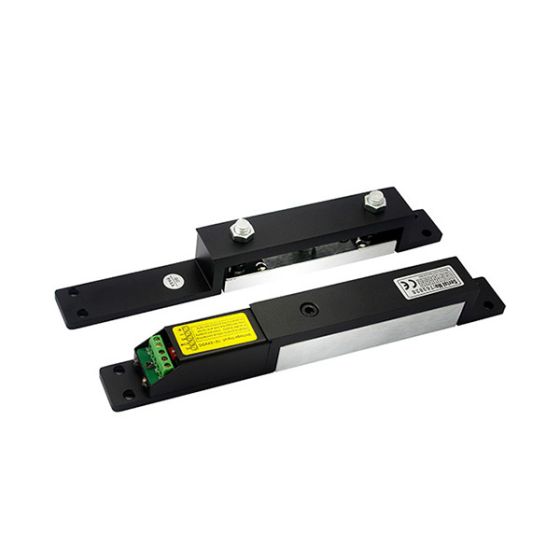

2700lbs (1200kg) High Security Electric Shear Lock with Delay and Signal Output

2700lbs(1200kg) High Security Electric Shear lock With delay and signal output
NE-2000,Embedded mounted,super shear lock,integrated design without external board,exquisite appearance with high safety coefficient,support 2700lbs shear force,suitable all kinds of doors,magnetic lock was embedded into the middle or above of the door frame,use magnetic force to catch up door leaf,elegant appearance.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special residual magnetic design makes automatic access control safer and more convenient.
Specification:
Holding Force
Max 2000lbs(1260kg)
Lock Status Sensors
Dry contact NO,NC,COM
Relock Delay Timer
0,3,6,9 seconds open time delay is adjustable
Rated Operating Voltage
DC 12V or 24V (selectable)
Current consumption
[email protected]
/
[email protected]
Optional Functions
LED,Buzzer
Surface finish for magnet
Zinc plated
Surface finish for armature plate
Zinc plated
Ambient temperature in °C
-10
~
+55
ºC
(14-131F)
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)
267L*30W*34H(mm)
Armature Plate Dimensions(L x W x D)
267L*30W*34H(mm)
Weight in kg
2.3kg
CE-mark for building
Yes
Rohs-mark for building
Yes
Model NO. : NE-2000-1 Shear lock
Shear Holding Force : 2700lbs(1260kg)
Weight : 2.3kg
Transport Package : Neutral Packing
Specification : CE, ROHS, SGS
Trademark : Nordson
Origin : Guangdong China
HS Code : 123456
Production Capacity : 20000PCS/Month
Holding Force : Max 2000lbs(1260kg)
Lock Status Sensors : Dry contact NO,NC,COM
Relock Delay Timer : 0,3,6,9 seconds open time delay is adjustable
Rated Operating Voltage : DC 12V or 24V (selectable)
Current consumption : [email protected] / [email protected]
Optional Functions : LED,Buzzer
Surface finish for magnet : Zinc plated
Surface finish for armature plate : Zinc plated
Ambient temperature in °C : -10~+55ºC(14-131F)
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) : 267L*30W*34H(mm)
Armature Plate Dimensions(L x W x D) : 267L*30W*34H(mm)
Weight in kg : 2.3kg
CE-mark for building : Yes
Rohs-mark for building : Yes
