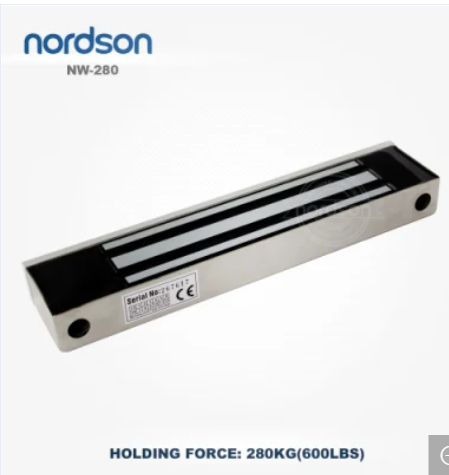

Stainless Steel Waterproof Outdoor 12/24VDC 280kg 600lbs Electric Magnetic Door Lock for Access Control System

Stainless Steel Waterproof IP68 outdoor 12/24VDC 280kg 600lbs door lock for access control system
NW-280 single door embedded magnetic lock,Stainless steel,Waterproof,specially used to out glass door,wodden door,metal door,fire doors,sliding door.Hoisting design,saves time and power when installation,use magnetic force to catch up door leaf,safe and reliable.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Holding Force
280kg (600Lbs)
Waterproof grade
IP65
Lock Status Sensors
NO
Rated Operating Voltage
12/24VDC
Current consumption
12V/480mA
Optional Functions
Relock Delay Timer,Buzzer
Surface finish for magnet
Stainless steel
Surface finish for armature plate
Stainless steel
Ambient temperature in °C
-10~+55ºC(14-131F)
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)
222L*47.2W*26H(mm)
Armature Plate Dimensions(L x W x D)
180L*38W*13H(mm)
Weight in kg
1.95kg
CE-mark for building
Yes
Rohs-mark for building
Yes
Model NO. : NW-280-1 door lock
Weight : 1.95kg
Transport Package : Neutral Packing
Specification : CE, ROHS, SGS
Trademark : Nordson
Origin : Guangdong China
HS Code : 123456
Production Capacity : 20000PCS/Month
Holding Force : 280kg (600Lbs)
Waterproof grade : IP65
Lock Status Sensors : NO
Rated Operating Voltage : 12/24VDC
Current consumption : 12V/480mA
Optional Functions : Relock Delay Timer,Buzzer
Surface finish for magnet : Stainless steel
Surface finish for armature plate : Stainless steel
Ambient temperature in °C : -10~+55ºC(14-131F)
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) : 222L*47.2W*26H(mm)
Armature Plate Dimensions(L x W x D) : 180L*38W*13H(mm)
Weight in kg : 1.95kg
CE-mark for building : Yes
Rohs-mark for building : Yes
