DC12V/24V Wall Mount Glass Door Stopper

SKU
NORDS101023460010
Special Price US$26.21 Regular Price US$29.12
In stock
Overview

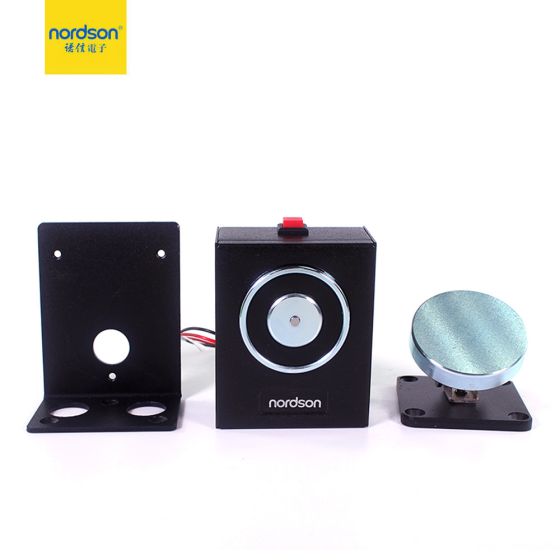

DC12V/24V Wall Mount Glass Door Stopper
Standard Extended wall mount electromagnetic door holder door stopper door catch with ultra low power consumption
Specification:
Version
Fail-unlocked
Holding Force
50kg(100Lbs)
Standard Functions
Manual door release button
Lock Status Sensors
NO
Rated Operating Voltage
DC 12V or 24V (Adjustable)
Current consumption
12V/180mA 24V/85mA
Surface finish
Paint and Zinc plated
Ambient temperature in °C
-10°C - +55°C
Suitable for
All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D)
70L*43W*86H(mm)
Armature Plate Dimensions(L x W x D)
65L*65W*53H(mm)
Weight in kg
0.9kg
CE-mark for building
YES
Rohs-mark for building
YES
Overview:
NP-G140 is standard electromagnetic door holder with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.
Function:
1.Pass 100Lbs super linear static thrust test
2.Double release modes: Power off & Manual button
3.Available for 12VDC /24VDC
4.Energy saving with ultra-low-power design
5.No residual magnetic design with stable performance
6.Passive switch signal output
7.Surface mounting or flush mounting for wall and floor
8.Available for glass door with bracket
Model NO. : NP-G140 glass door stopper
Standard Functions : Manual Door Release Button
Lock Status Sensors : No
Rated Operating Voltage : DC 12V or 24V (Adjustable)
Current Consumption : 12V/180mA 24V/85mA
Surface Finish : Paint and Zinc Plated
Magnets Dimensions(L X W X D) : 70L*43W*86h(mm)
Weight in Kg : 0.9kg
Ce-Mark for Building : Yes
Transport Package : Neutral Packing
Specification : CE, ROHS, SGS
Trademark : Nordson
Origin : Guangdong China
HS Code : 123456
Production Capacity : 20000
Version : Fail-unlocked
Holding Force : 50kg(100Lbs)
Standard Functions : Manual door release button
Lock Status Sensors : NO
Rated Operating Voltage : DC 12V or 24V (Adjustable)
Current consumption : 12V/180mA 24V/85mA
Surface finish : Paint and Zinc plated
Ambient temperature in °C : -10°C - +55°C
Suitable for : All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D) : 70L*43W*86H(mm)
Armature Plate Dimensions(L x W x D) : 65L*65W*53H(mm)
Weight in kg : 0.9kg
CE-mark for building : YES
Rohs-mark for building : YES
More Information
Description Standard Extended wall mount electromagnetic door holder door stopper door catch with ultra low power consumption
Specification:
Version
Fail-unlocked
Holding Force
50kg(100Lbs)
Standard Functions
Manual door release button
Lock Status Sensors
NO
Rated Operating Voltage
DC 12V or 24V (Adjustable)
Current consumption
12V/180mA 24V/85mA
Surface finish
Paint and Zinc plated
Ambient temperature in °C
-10°C - +55°C
Suitable for
All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D)
70L*43W*86H(mm)
Armature Plate Dimensions(L x W x D)
65L*65W*53H(mm)
Weight in kg
0.9kg
CE-mark for building
YES
Rohs-mark for building
YES
Overview:
NP-G140 is standard electromagnetic door holder with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.
Function:
1.Pass 100Lbs super linear static thrust test
2.Double release modes: Power off & Manual button
3.Available for 12VDC /24VDC
4.Energy saving with ultra-low-power design
5.No residual magnetic design with stable performance
6.Passive switch signal output
7.Surface mounting or flush mounting for wall and floor
8.Available for glass door with bracket
Model NO. : NP-G140 glass door stopper
Standard Functions : Manual Door Release Button
Lock Status Sensors : No
Rated Operating Voltage : DC 12V or 24V (Adjustable)
Current Consumption : 12V/180mA 24V/85mA
Surface Finish : Paint and Zinc Plated
Magnets Dimensions(L X W X D) : 70L*43W*86h(mm)
Weight in Kg : 0.9kg
Ce-Mark for Building : Yes
Transport Package : Neutral Packing
Specification : CE, ROHS, SGS
Trademark : Nordson
Origin : Guangdong China
HS Code : 123456
Production Capacity : 20000
Version : Fail-unlocked
Holding Force : 50kg(100Lbs)
Standard Functions : Manual door release button
Lock Status Sensors : NO
Rated Operating Voltage : DC 12V or 24V (Adjustable)
Current consumption : 12V/180mA 24V/85mA
Surface finish : Paint and Zinc plated
Ambient temperature in °C : -10°C - +55°C
Suitable for : All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D) : 70L*43W*86H(mm)
Armature Plate Dimensions(L x W x D) : 65L*65W*53H(mm)
Weight in kg : 0.9kg
CE-mark for building : YES
Rohs-mark for building : YES
