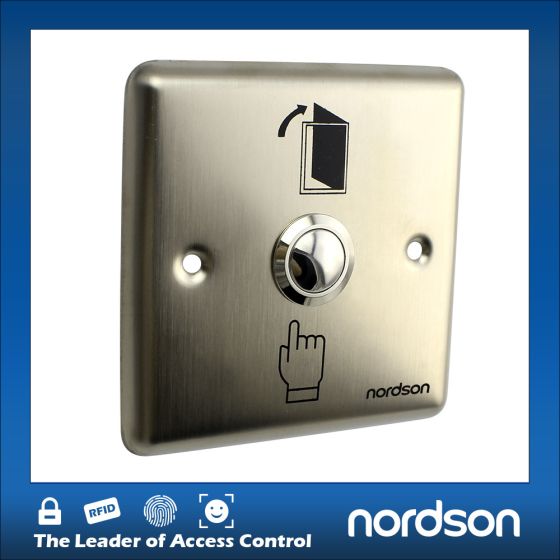

Stainless Steel Exit Button Automatic Door Open Exit Button

Stainless Steel Exit button automatic door open button
NF-80 Push Button Switches is a satin finish stainless steel access switch button, suitable for a variety of door frame, which is marketed after 500,000 successful test . It is with simple & ultra-narrow design, refined and elegant.The Exit Button is the Best Choice for Access Control Systems.
Specification
Model
NF-80 Push Button Switches
NF-80S Push Button Switches (with Night Luminous)
Material
SUS304 Stainless steel Panel, Steel Button
Current Rating
[email protected]
Max
Output Contact
NO,COM Output
Optional Functions
NO/NC/COM Output
LED Nigh
Available option for Blue,Green or Red
Mechanical Life
500000 Successful Test
Suitable for Door
hollow door frame and electrical box use
Operating temp
-10~+55ºC(14-131F)
Operating Humidity
0-95% (Non- condensing)
Dimensions
86Lx86Wx20H(mm)
Weight
0.98kg
Packaging & Shipping
Packaging: Neutral Package.
Shipping: Small quantity within 1-5 work days after receipt of remittance,
Large quantity within 14 work days after receipt of remittance.
Our Services
For the non-human factors of product quality issues, NORDSON offer three-year warranty services for electromagnetic lock;
3-year warranty for access control panel, electric bolt and electric strike;
1 year warranty for exit button, bracket, and power supply.
The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
Model NO. : NF-80 door open button
Number of Switch : Multi Control Switch
Structure : Power Built-in Type
Usage : Control Button
Kind : Single-pole on-off Switch
Contact Type : Type c Contact
Detection Method : Retro-reflective Mode
Brand : Nordson
Certification : ISO9001, CE, CCC
Material : SUS304 Stainless Steel Panel, Steel Button
Current Rating : [email protected] Max
Output Contact : No,COM Output
Optional Functions : No/Nc/COM Output
LED Nigh : Available Option for Blue,Green or Red
Mechanical Life : 500000 Successful Test
Suitable for Door : Hollow Door Frame and Electrical Box Use
Dimensions : 86lx86wx20h(mm)
Weight : 0.98kg
Transport Package : Standard Package
Specification : CE
Trademark : Nordson
Origin : China
HS Code : 1
Production Capacity : 1000PCS/Week
Model : NF-80 Push Button Switches
Material : SUS304 Stainless steel Panel, Steel Button
Current Rating : [email protected] Max
Output Contact : NO,COM Output
Optional Functions : NO/NC/COM Output
LED Nigh : Available option for Blue,Green or Red
Mechanical Life : 500000 Successful Test
Suitable for Door : hollow door frame and electrical box use
Operating temp : -10~+55ºC(14-131F)
Operating Humidity : 0-95% (Non- condensing)
Dimensions : 86Lx86Wx20H(mm)
Weight : 0.98kg
