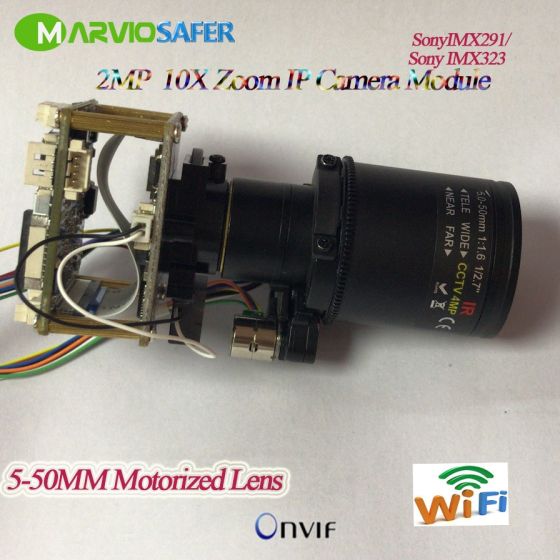

1080P 2MP 10X Optical Zoom 5-50mm IP PTZ Network Camera Module Onvif RTSP Video WIFI Audio Alarm RS4
SKU
32877803080
Overview
1080P 2MP 10X Optical Zoom 5-50mm IP PTZ Network Camera Module Onvif RTSP Video WIFI Audio Alarm RS485 Pelco-D / Pelco-P...
1080P 2MP 10X Optical Zoom FULL HD Outdoor CCTV Bullet POE Weatherproof IP PTZ Network Camera 5.1-51mm IPCam Onvif RTSP Video
Dear friend,
The module can extend wifi by usb interface, if you need wifi please also buy wifi module on bellow link, thanks
https://www.aliexpress.com/store/product/CCTV-IP-Camera-wifi-module-board-the-security-camera-wireless-module-if-buy-with-our-wifi/1758182_32484891904.html?spm=2114.12010608.0.0.59012a43R7jDWJ
Feature:
- 2MP Real-time High Definition resolution image
- Sony IMX323 Sensor: adopts 1/2.9" Sony IMX323 Sensor
- Sony IMX291 Version: adopts starlight 1/2.8" Sony IMX291 Sensor very low illumination(0.00001lux) can output colorful image at low light night
- ICR IR filter auto switch for true day and night surveillance
- 5 - 50mm 10X Zoom lens
- Support dual-stream, Support mobile phone monitoring
- Support for backlight compensation, digital wide dynamic, automatic electronic shutter function, adapt to different control environment
- Support Onvif for third party NVR

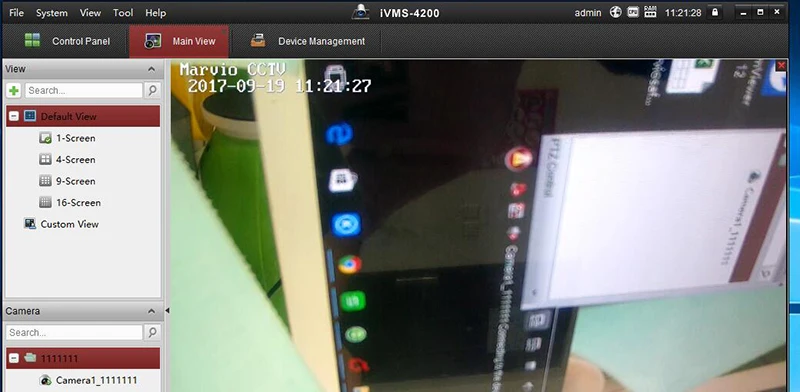

- Hikvision Private Protocol supporting iVMS-4200
- POE(48V 802.3af/802.3at Standard) Optional( need to buy extra poe module add $3)
Specification
| Camera | Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Minimum Illumination: | 0.001 lux @ F2.0, AGC ON | |
| 0 lux with IR | ||
| Shutter Time: | 1/30s ~ 1/100,000s | |
| Lens: | 5-50mm lens F1.6-F2.7 | |
| Angle of view: 89-30 | ||
| Lens Mount: | M12 | |
| Day& Night: | Electronic (-I: IR cut filter with auto switch) | |
| Digital Noise Reduction: | 3D DNR | |
| Wide Dynamic Range: | Digital WDR | |
| Compression Standard | Video Compression: | H.264/M-JPEG |
| H.264 Compression Profile: | Main profile | |
| Bit Rate: | 32 Kbps~16Mbps | |
| Image | Max Image Resolution: | 1920*1080 |
| Frame Rate: |
50Hz: 25fps(1920*1080), 25fps( 1280 × 720) |
|
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser | |
| BLC: | Yes, zone configurable | |
| Network | Network Storage: | NAS |
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect, IP address conflict, storage full, storage error | |
| Protocols: | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS | |
| System Compatibility: |
ONVIF |
|
| General Functionalities (Security): | User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark | |
| Interface | Communication Interface: | 1 RJ45 10 M/100 M Ethernet port |
| General | Power Supply: | 12 V DC ± 10%; |
| Power Consumption: | Max. 12W | |
| Working Temperature (Operating Conditions): | -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing) | |
| Impact Protection: | IEC60068-275Eh, 50J; EN50102, exceeding IK10 | |
| IR Range: | DIY | |
| Dimensions: | 89-30 | |
| weight | 0.3 |
| Product Name | 1080P 2MP 10X Optical Zoom 5-50mm IP PTZ Network Camera Module Onvif RTSP Video WIFI Audio Alarm RS4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description |
1080P 2MP 10X Optical Zoom FULL HD Outdoor CCTV Bullet POE Weatherproof IP PTZ Network Camera 5.1-51mm IPCam Onvif RTSP Video Dear friend, The module can extend wifi by usb interface, if you need wifi please also buy wifi module on bellow link, thanks https://www.aliexpress.com/store/product/CCTV-IP-Camera-wifi-module-board-the-security-camera-wireless-module-if-buy-with-our-wifi/1758182_32484891904.html?spm=2114.12010608.0.0.59012a43R7jDWJ
Feature:
Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | 32877803080 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Condition | New |
