1080P HD Bullet IP Camera PTZ 2MP 4MP 4X 10X ZOOM AUTO FOCUS Varifocal Lens Network Camera ONVIF
1080P HD Bullet IP Camera PTZ 2MP 4MP 4X 10X ZOOM AUTO FOCUS Varifocal Lens Network Camera ONVIF Outdoor P2P CloudLens ...
1080P HD Bullet IP Camera PTZ 2MP 4MP 4X 10X ZOOM AUTO FOCUS Varifocal Lens Network Camera ONVIF Outdoor P2P CloudLens
Overview:

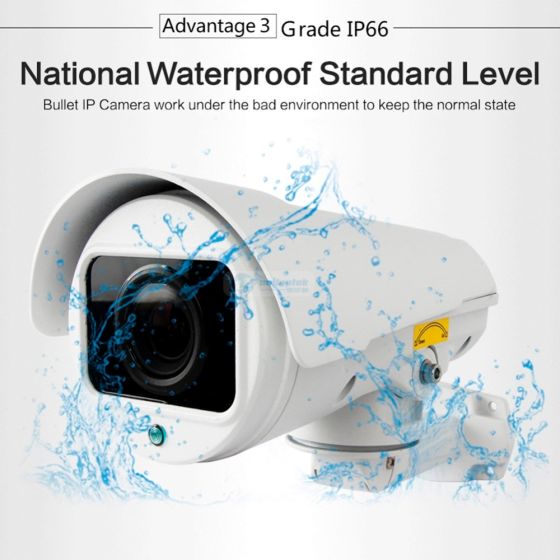

* Total Metal housing, IP66 , IR range reach up to 20 Meters
* A-B scan, tour available
* Auto Pan(left & right) 0-160 degree , Manually Tilt (up & down) -45 to +25 degree (Not Auto Tilt)
* ONVIF2.4; Support P2P function for Android & iPhone & CMS clients
* Support H.264 compression
* Compatible with Milestone and AXXON platform
* Full HD 1080P/4MP(optional) High resolution

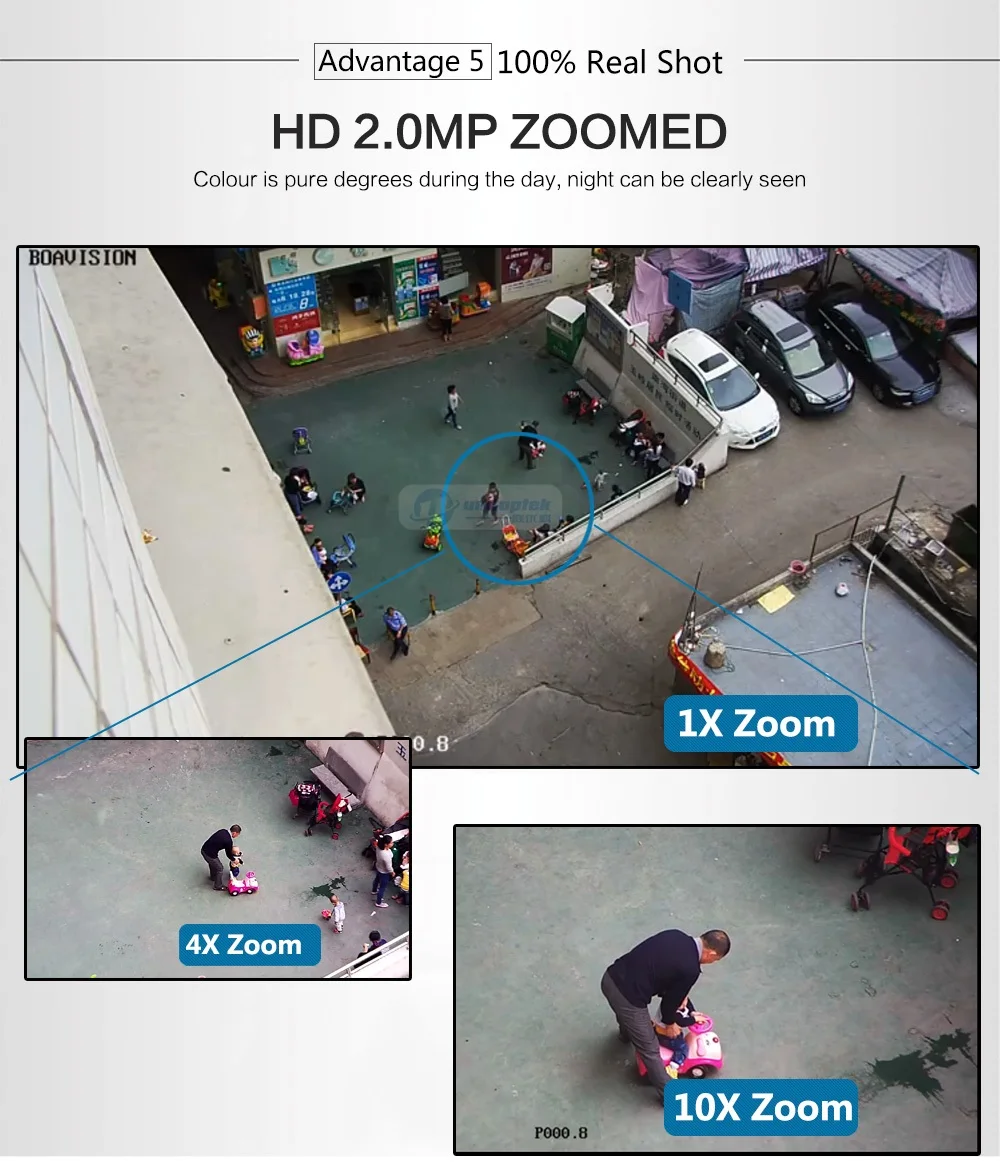

* 4X zoomed Auto Focus lens 2.8-12mm ;/ 10X zoomed Auto Focus lens 5-50mm. (we supply 4X zoom or 10X zoom based on your order bundle)

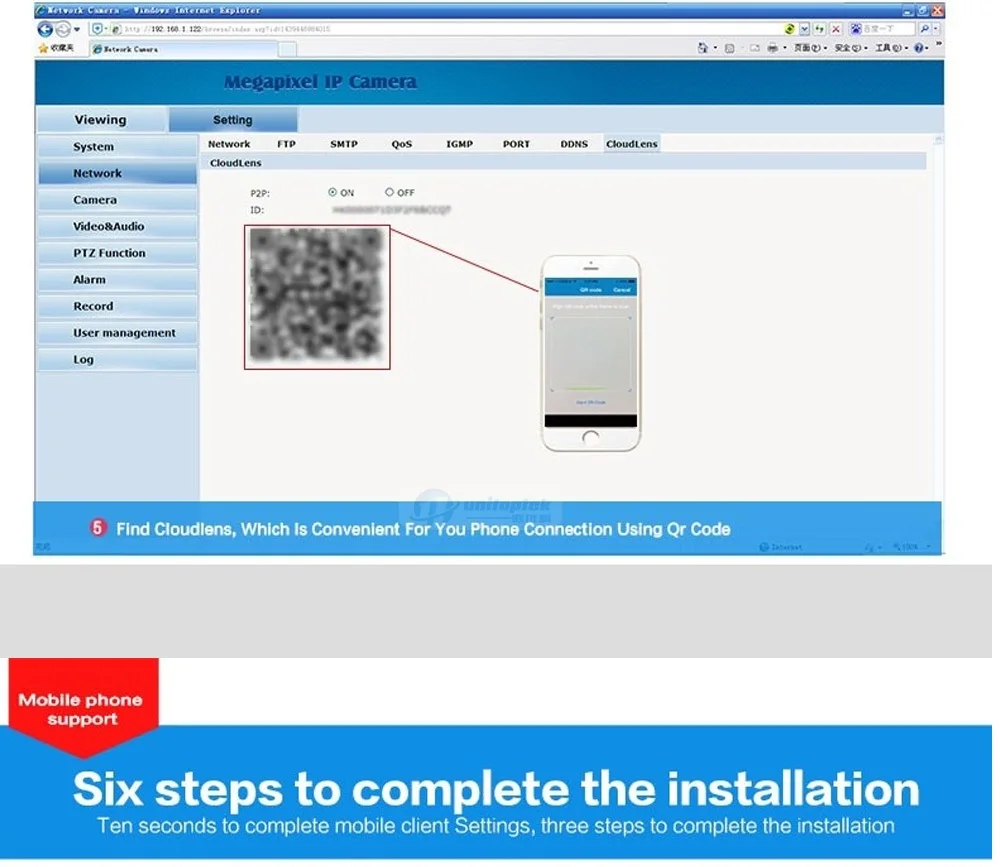

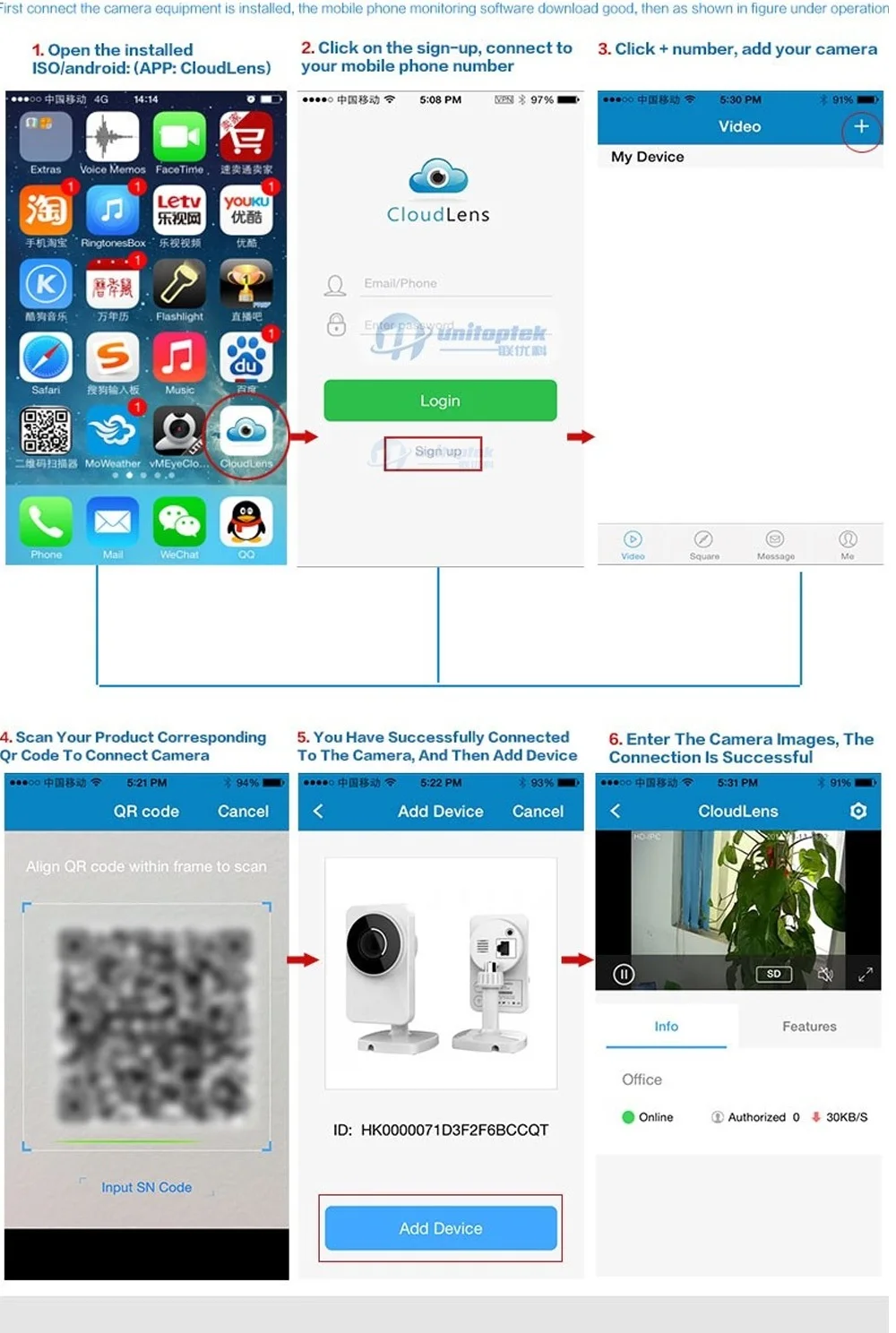

* Mobile Phone View APP: CloudLens
Please read before order :
(1). You can control the camera pan (left & right) from PC software or Phone app remotely.
But you can only adjust the tilt (up & down) manually by hand.
(2). The camera support Zoom by web page and CMS PC clients, but it does not support zoom by phone app.
(3). Camera DC12V Power adapter is NOT Included.
Please know much well about the functions to avoid any unnecessories disputes.
Model No. | HD345 | ||
Module | HD345-2MP-4X | HD345-2MP-10X | HD345-4MP-10X |
Sensor | 1/3” Cmos 2.0M Sony 323 With 4x Zoom Lens |
1/3” Cmos 2.0M SONY323 With 10x Zoom Lens |
1/3” Cmos 4.0M OV4689 With 10x Zoom Lens |
Resolution | HD:1080p/30fps /1080p/25fps | HD: 1080p/30fps,1080p/25fps | HD:2592x1520/30fps,2592x1520/22fps |
Rotation | Pan:355º | ||
Pan speed | 0-25°/s | ||
IR range | 20M | ||
IR control | PWM | ||
AB scan | Support, 0-355 degree | ||
AB speed | 1-9 grade selectable | ||
Preset | 220 | ||
Tour | 3 groups ( each group 16 preset、dwell time and speed selectable) | ||
Calibration | Support | ||
Steam | triple streaming, 2 H.264 & 1 MJPEG or triple streaming | ||
Lens | HD345-2MP-4X With 4X ZOOM Vari focal lens2.8-12MM Auto Focus | ||
HD345-2MP-10X & HD345-4MP-10X With 10X ZOOM Vari focal lens5-50MM Auto Focus | |||
Compression | H.264 | ||
Audio | N/A | ||
Audio | N/A | ||
P2P | Android,Iphone | ||
Protocol | TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,PPPoE,P2P, |
Packing List:
1x IP Camera
1x Tool
1x CD
Product Name | 1080P HD Bullet IP Camera PTZ 2MP 4MP 4X 10X ZOOM AUTO FOCUS Varifocal Lens Network Camera ONVIF | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Description |
1080P HD Bullet IP Camera PTZ 2MP 4MP 4X 10X ZOOM AUTO FOCUS Varifocal Lens Network Camera ONVIF Outdoor P2P CloudLens
HD345 2MP 4X = 1080P Bullet IP Camera IR 20M With 2.8-12mm 4X Zoom Lens
HD345 2MP 10X = 1080P Bullet IP Camera IR 20M With 5-50mm 10X Zoom Lens
HD345 4MP 10X = 4MP Bullet IP Camera IR 20M With 5-50mm 10X Zoom Lens
Overview: * Total Metal housing, IP66 , IR range reach up to 20 Meters * A-B scan, tour available * Auto Pan(left & right) 0-160 degree , Manually Tilt (up & down) -45 to +25 degree (Not Auto Tilt) * ONVIF2.4; Support P2P function for Android & iPhone & CMS clients * Support H.264 compression * Compatible with Milestone and AXXON platform * Full HD 1080P/4MP(optional) High resolution * 4X zoomed Auto Focus lens 2.8-12mm ;/ 10X zoomed Auto Focus lens 5-50mm. (we supply 4X zoom or 10X zoom based on your order bundle) * Mobile Phone View APP: CloudLens
Please read before order : (1). You can control the camera pan (left & right) from PC software or Phone app remotely. But you can only adjust the tilt (up & down) manually by hand. (2). The camera support Zoom by web page and CMS PC clients, but it does not support zoom by phone app. (3). Camera DC12V Power adapter is NOT Included. Please know much well about the functions to avoid any unnecessories disputes.
Packing List: 1x IP Camera 1x Tool 1x CD |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | 32811283338 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 1.000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
selling_potential | 3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
With Built-in Battery | No | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Condition | New |
