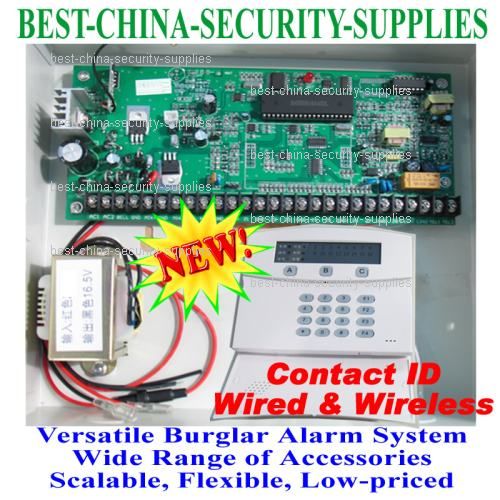

16 Wired 16 Wireless Zones Home Security Burglar Alarm with Keypad GSM PSTN Dual Mode Dialer Ademco CID

Features:

• Use of state-of-art chipset and central processing unit.
• A rich variety of wired and wireless detectors can be supported.
• Wired and wireless supported. 16 wired zone and 16 wireless zones.
• Support multiple keyboards.
• Support keyboard dis-connect alert.
• Event log accessible from keyboard.
• Support Contact ID and Ademco 4+2
• Support 7 modes of arming: Home, Away, Perimeter, Single Zone, Delay, Scheduled, Forced and Remote Controlled.
• Support 5 modes of disarming: Single Zone, Keyboard Password, Remote Control, Dial-in and Central Monitoring Station.
• 5types of alarm zones: Instant, Delay, 24-hours, Perimeter and Buffered Area.
• Support GSM and PSTN dual network auto-dialer
• Support up to 6 groups of telephone number for alert.
• Support up to 3 groups of telephone number to monitor centre.
• Support dial-in remote control.
• Support dial-out reporting to monitoring centre with pre-recorded voice message up to 20 seconds.
• Support dial-in control of siren.
• Siren time length is adjustible.
• 4 groups of phone call and 1 group central station.
• Two levels of security including administrator and operator passwords.
• Tampering alert for telephone cord cut.
• Pre-emptive dialing out for alarming if telephone line is shared used.
• Built-in watchdog for self-system monitoring, self-test interval adjustible from 0 to 99 hours.
• Power outage and low-voltage notification.
• Support noisy and silent alarming.
• Delay arming up to 255 seconds

Application:

• System for professionals, fit for business and bigger scale installation.

Specification:

• Input voltage : 220V AC (110V optional offered)
• Power: < 1.5W
• Siren Output: 12V 400mA or above
• Output voltage : 16.5V DC
• Frequency for wireless accessories: 315 MHz
• Connections for wired accessories: both NC and NO configurable.
• Maximum length of keyboard installation: 150 Meters
• Maximum number of keyboard supported: 4
• Maximum length of siren alarming: 20 minutes
• Operation temperature : -10 ~ 55
• Humidity : 40% ~ 70%
• Weight: 1 Kg
• Dimension of system board: 240 x 130 x 70mm
• Dimension of keyboard: 159 x 138 x 33mm
• Dimension of Housing:255 x 235 x 70mm

Packing:

• 1 x Control Panel
• 1 x Power Adapter 220V AC to 16.5V AC
• 1 x 2.7K Ohms Resistor Pack
• 1 x Keyboard
• 1 x User Guide
• 1 x Mounting Kit including phone cord and antenna
