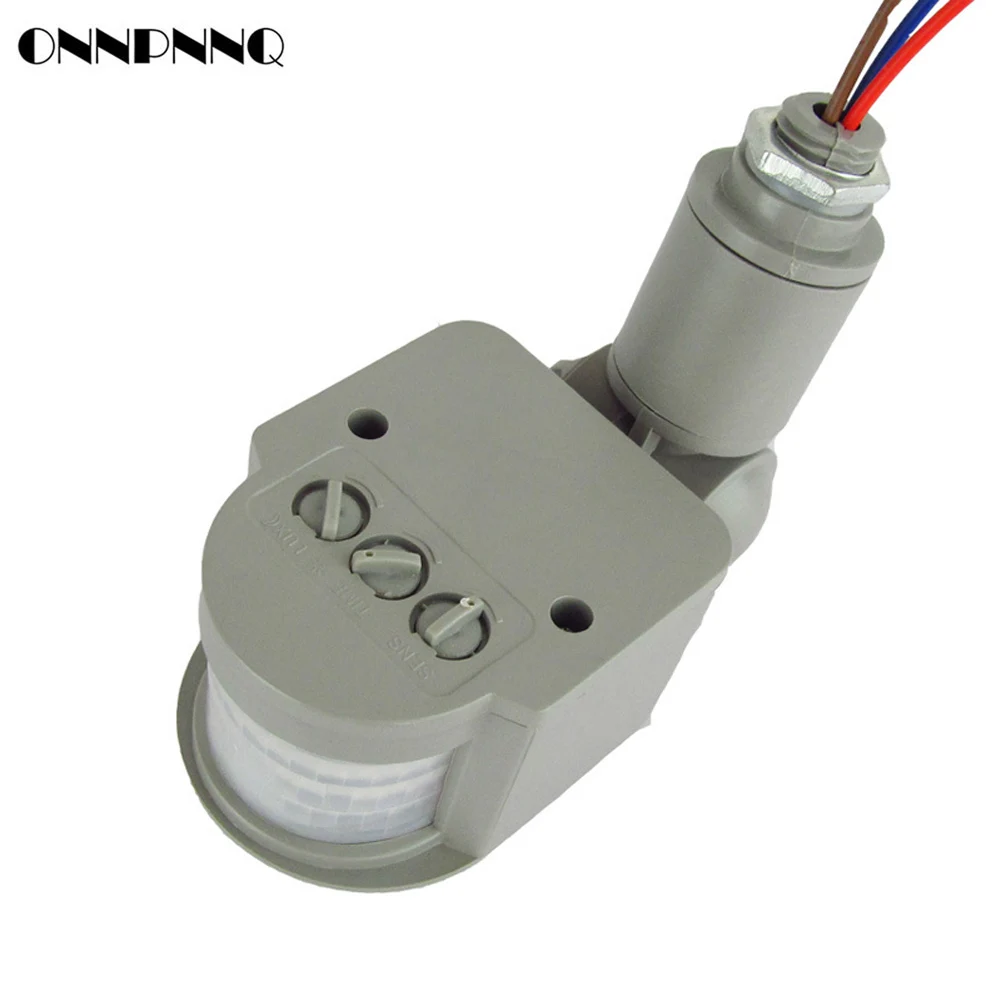

180 LED Outdoor 110-240V Infrared Motion Sensor Detector Wall Light Switch
SKU
32840921390
Overview
180 LED Outdoor 110-240V Infrared Motion Sensor Detector Wall Light Switch...
window.productDescription='
Can automatically identify day and night, and the starting work of the external environment illumination are free to choose, so that work automatically at night, during the day off. Users can adjust themselves;
Adjustable detection range, can be adjusted according to the use of places;
Lamp time adjustable, users can adjust according to local conditions.
【adjust】
1) LUX
Is adjusting day or night work.
A: When transferred to the sun position, the sensor work all day long;
B: When transferred to the moon position, the sensor does not work during the day and automatically enters the working state at night.
2) TIME
Is to adjust the sensor delay time (10 ± 2sec ~ 7 ± 1min)
Delay time refers to the sensor after sensing people, people leave the sensing area, sensor delay off time.
3) SENS
Is to adjust the sensitivity of the sensor. Generally do not need to adjust. Such as the induction of induction is too strong and can cause the sensitivity to the minimum position.
【The main technical parameters】
Detection range: 180 °
Working voltage: AC110V ~ 240V (can be customized a variety of low voltage direct / AC)
Detection range: up to 10m (24 ℃) (adjustable)
Delay time: 15 seconds to 6 minutes (adjustable)
Ambient illumination: 2 ~ 2000LUX (adjustable)
Operating temperature: -10 ℃ ~ +40 ℃
Working humidity: less than 93% RH
Installation height: 1.8m ~ 2.5m
Material: ABS
Dimensions: 60 * 45 * 160mm
Installation: Open, (opening 16 12 10 mm) When installed, the control knob faces downwards
Description:
New One
Human body sensor using pyroelectric infrared technology, built-in human infrared sensor module, light effect sensor module, delay switch module. The use of industrial-grade chip, load capacity, anti-interference ability.
People into the sensing range, can be automatically opened, the people can automatically delay the closure of the departure, to eliminate the regular light of a person open, unmanned people wereted, to extend the service life of lamps and lanterns, energy saving, convenience and environmental protection in one.Can automatically identify day and night, and the starting work of the external environment illumination are free to choose, so that work automatically at night, during the day off. Users can adjust themselves;
Adjustable detection range, can be adjusted according to the use of places;
Lamp time adjustable, users can adjust according to local conditions.
【adjust】
1) LUX
Is adjusting day or night work.
A: When transferred to the sun position, the sensor work all day long;
B: When transferred to the moon position, the sensor does not work during the day and automatically enters the working state at night.
2) TIME
Is to adjust the sensor delay time (10 ± 2sec ~ 7 ± 1min)
Delay time refers to the sensor after sensing people, people leave the sensing area, sensor delay off time.
3) SENS
Is to adjust the sensitivity of the sensor. Generally do not need to adjust. Such as the induction of induction is too strong and can cause the sensitivity to the minimum position.
【The main technical parameters】
Detection range: 180 °
Working voltage: AC110V ~ 240V (can be customized a variety of low voltage direct / AC)
Detection range: up to 10m (24 ℃) (adjustable)
Delay time: 15 seconds to 6 minutes (adjustable)
Ambient illumination: 2 ~ 2000LUX (adjustable)
Operating temperature: -10 ℃ ~ +40 ℃
Working humidity: less than 93% RH
Installation height: 1.8m ~ 2.5m
Material: ABS
Dimensions: 60 * 45 * 160mm
Installation: Open, (opening 16 12 10 mm) When installed, the control knob faces downwards
