1pc USB ACR122U NFC RFID Smart Card Reader Writer For all 4 types of NFC (ISO/IEC18092) Tags + 5pcs

SKU
ACR122U-A9
Overview
1pc USB ACR122U NFC RFID Smart Card Reader Writer For all 4 types of NFC (ISO/IEC18092) Tags + 5pcs M1 Cards...

Description:

The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless
(RFID) Technology.  Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only
for Smart Card Reader? and ISO 14443 A and B cards but also all four types of NFC tags.

ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different
 devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also
 read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type
 of contactless tag in use.

In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U
NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access
 systems and vending machines.

The ACR122U NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions.
Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare
 collection and network authentication.



Features

Identity verification, data exchange & contactless transaction

Supporting different OS

USB 2.0 Full Speed Interface

Operating Frequency: 13.56MHz

CCID Compliance

Smart Card Reader:

Read/write speed up to 424 kbps

Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

Supports ISO 14443 Type A and B cards, for Smart Card Reader, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

Built-in anti-collision feature

Application Programming Interface:

Supports PC/SC

Supports CT-API (through wrapper on top of PC/SC)

User-controllable bi-color LED

User-controllable buzzer

5pcs of for  Smart Card Reader 1K card included

CD-Rom included (Instruction Manual, Driver, Demo, SDK, etc.)


Applications:

1.The bank on the net and online shopping

2.Electronic business e

3.Electronic wallet balance query

4.Network access

5.Customer integral preferential

6.Identity authentication

7.ticketing

8.Online betting

9.Parking charging system

10.Automatic charging system

11.Public transportation

12.Entrance guard system

13.attendance

14.Vending machines

15.Non-contact public telephone

16.Logistics and supply chain management


Technical Specifications :

Shell size:98 mm  x 65 mm  x 12.8 mm

Weight:70g

Interface:USB High Speed

Voltage:Rated Voltage 5V DC

Current:200mA (Working); 50mA (Standby); 100mA (Normal)

Working Temperature:0-50°C

Working Frequency:13.56 MHz

ISO14443 1-4:Standard / Certification:CE, FCC, VCCI, RoHS Compliant, for Microsoft WHQL: 2000, XP, VISTA, 2008, 2008 R2, 7

Operating System:for Windows 98, ME, 2000, 2003, XP, Vista, 2008, 7

for Windows 2003 x64, XP x64, Vista x64, 2008 x64, 2008 R2 x64, 7 x64

for Windows CE 5.0 for Mac Linux

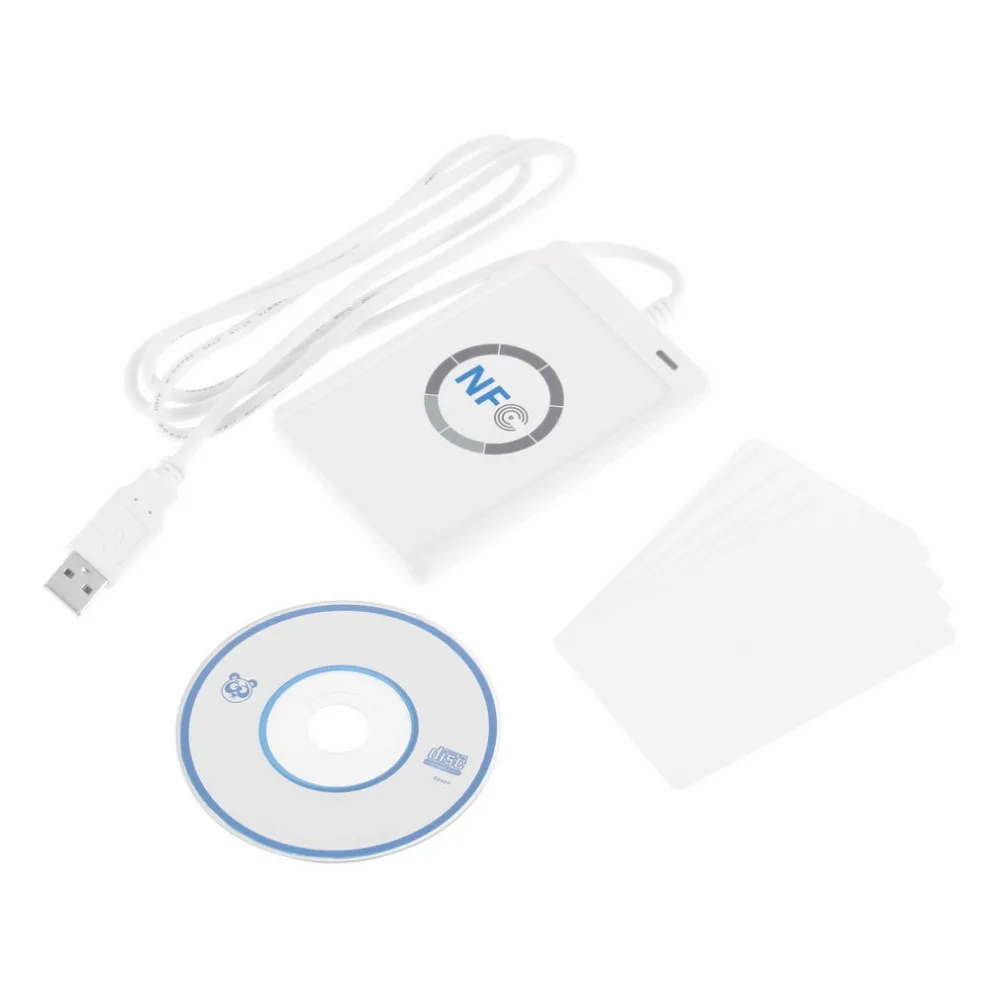

Packing Includes:

1 * ACR122U NFC Contactless Smart Card Reader&writer

5 * for Smart  Cards
