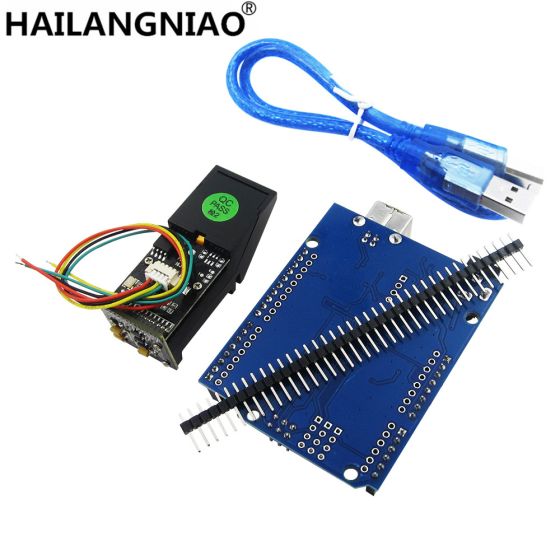

1set FPM10A fingerprint Module for Optical fingerprint sensor + 1pcs UNO R3 MEGA328P with usb cable
1set FPM10A fingerprint Module for Optical fingerprint sensor + 1pcs UNO R3 MEGA328P with usb cable...
Specifications:
Supply voltage : DC 3.6 ~ 6.0V
Supply Current : Current : <120mA
Peak current : <140mA
Fingerprint image time : < 1.0 seconds
Window Size : 14 × 18 mm
Signature File : 256 bytes
Template files : 512 bytes
Storage capacity: 1,000
False Accept Rate (FAR): <0.001% ( security level 3 )
False Reject Rate (FRR): <1.0% ( security level 3 )
Search time: < 1.0 seconds ( 1:500 , the mean )
PC Interface : UART (TTL logic level )
Communication baud rate (UART): (9600 × N) bps where N = 1 ~ 12 ( default value N = 6, ie 57600bps)
Working environment : Temperature : -20 to +50
Relative Humidity : 40% RH to 85% RH ( non-condensing )
Storage environment : Temperature : -40 to +85
Relative humidity : <85% H ( non-condensing )
Dimensions (L × W × H): 56 × 20 × 21.5mm
Product Name | 1set FPM10A fingerprint Module for Optical fingerprint sensor + 1pcs UNO R3 MEGA328P with usb cable |
---|---|
Description | Specifications: |
SKU | 32844031842 |
Weight | 1.000000 |
With Built-in Battery | No |
