2.4G Student electronic tag 0-100 meters active card Read only card High frequency

SKU

YKD-PA08

Be the first to review this product

Special Price US$9.80 Regular Price US$10.89

In stock

Buy 100 for US$4.90 each and save 50%

Overview

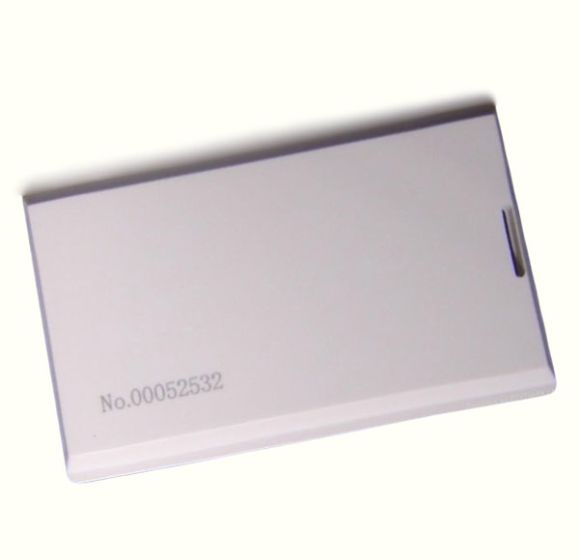

2.4GHz - 2.5 GHz Active RFID standard clamshell card

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical parameter:

Product model: PA08
Operating frequency: 2.4GHz-2.5GHz (factory setting)
Work style: active
Transmit power: less than 1mW (0dBm)
Battery: CR2032 2 (battery can be replaced)
Quiescent current: < 1UA
Working current: 12mA (pulse mode
Launch time: 0.25ms
Read: read only
Read distance: 0-120 meters
Working age: 5 years (theoretical value)
Working voltage: 3V
Query time: 1s
Collision ability: with a strong ability to prevent collision, can read the number of cards at the same time >200 PCS
perating temperature: ~70 -25
Storage temperature: ~85 -40
Working humidity: < 95%
Outline dimension: 86mm * 54mm * 4.5mm
2.4G active card, 2.4G dual band card, 2.4G campus card, 2.4G single frequency card, 2.4G card, 2.4G semi active card......

Professional manufacturers, complete set of card reading equipment! Technology core, reasonable price!

The front-end acquisition machine reader information, via the Internet directly uploaded to the remote server, the realization of BS architecture Jiaxiaotong service platform;

A RS232 interface, used to set the parameters, and can monitor the state of the front end machine;
RJ45 Ethernet port, used to connect to the network, communication with the system platform;
