2MP 5MP Full HD PTZ IP Camera Outdoor Mini Speed Dome Cam IP Onvif 4X Zoom P2P 40m IR Night Vision ip66 Waterproof POE Optio

Details

2MP 5MP Full HD PTZ IP Camera Outdoor Mini Speed Dome Cam IP Onvif 4X Zoom P2P 40m IR Night Vision ip66 Waterproof POE Optional

01 cctv camera 02 security camera 03 ip camera 04 ptz ip camera 05 2mp ptz ip camera 06 5mp ptz ip camera 07 speed dome ip camera 08 ptz camera

09 cctv surveillance camera 10 4x zoom ip camera 11 5mp ip camera 12 2mp ptz camera 13 network ptz camera

Product overview：

* 2.0MP 1/2.8 Sony323 Low illumination CMOS,4X optical zoom；

* 5.0MP 1/2.5 AR0521 Low illumination CMOS,4X optical zoom；

* Resolution: 1080P: 1920*1080,25/30fps; 5MP: 2592*1944,25/30fps

* Support Onvif protocol GB/T28281,work with Hikvision , dahua, XM

* Support lightning protection,anti surge;

* Outdoor speed dome camera protection grade:IP66;

* Support Chinese and English IE interface and have operation tips function, user interface friendly；

Feature：

* Adopt 4pcs infrared light, Effective exposure distance up to 40m

* Horizontal rotation 350 ° continuous rotation, Vertical 0 ° -90 °, support automatic flip, no monitoring blind spot.

* Pan speed max 25°/s,tilt speed max 20°/s

* Pan speed 0°/s～25°/s,tilt speed 0°/s～20°/s,

* Support 16 preset;1 patrols;1 patterns;support AB scan;

* Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples

* Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity

* Support Moblie Phone APP View: Hisee

* 48V POE Function Optional

Specifications:

Model	HD46F-2MP	HD46F-2MP-P	HD46F-5MP	HD46F-5MP-P
Image sensor	HI3516C+SONY323	HI3516C+SONY323	HI3516D+AR0521	HI3516D+AR0521
Resolution	1080P:1920*1080, 25/30fps	1080P:1920*1080, 25/30fps	5MP:2592*1944, 25/30fps	5MP:2592*1944, 25/30fps
Low illumination	color:0.2Lux @ F1.2;black-white 0.01Lux @ F1.2
Signal / scan system	PAL/NTSC;Progressive
Electronic shutter	Auto/manual（1/5-1/50000 ）
Day-night mode	Auto ICR

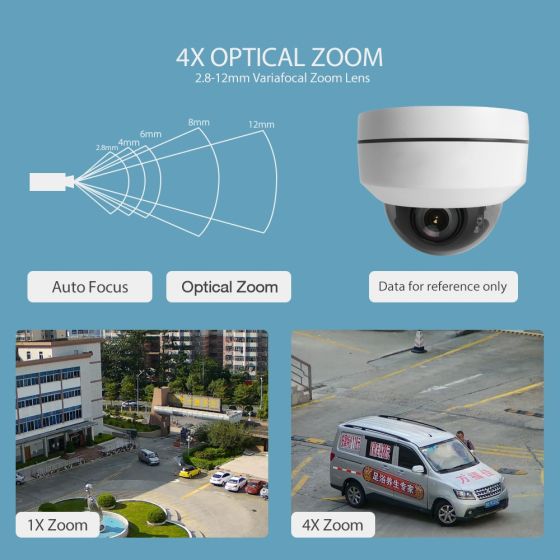

Optical zoom	2.8-12mm;4X Optical Zoom
Pan angel	89.9°-26.2°
IR distance	40M
Pan speed	Horizontal rotation 350 ° continuous rotation，0°～25°/S
Tilt speed	0-20°/S
Tilt range	0°-90°
Proportional zoom	Support, change the speed based on the zoom
Preset	16
Patrol	1
Pattern scan	1
A.B scan	Support
Park function	Support,preset,cruise,pattern scan,two-point line sweep,horizontal automatic
Max image size	1920*1080	1920*1080	2592*1944	2592*1944
Output bit rate	32Kbps-16Mbps
Video compression	H.264/MJPEG	H.264/MJPEG	H.265/H.264/MJPEG	H.265/H.264/MJPEG
Network protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP
Interface protocol	Onvif,hikvision,xm,jovision personal protocol
Network interface	Built-in RJ45 network interface,support 10M/100M IP DATA
Application interface	Provide Linux,NindoNs SDK develop bag and CGI protocol,can be second fast developed
PTZ control protocol	Pelco-d,Pelco-p
Power consumption	DC 12V2A,10W(max) Not Included In The Packing
Support 48V POE Function	NO	YES	NO	YES
Working tem and hum	-30℃～+60℃,≤90%RH(no frostless)
Protection grade	TVS3000V lightning protection,surge protection and voltage
	Transient protection, weather proof (for outdoor): IP66
Package Weight(kg)	0.7
Size(D×H)(mm)	110*95

Packing List:

1 *PTZ Dome IP Camera

1 * Screws Bag

1 *CD

1* User Manual

(The power supply is not included in the packing )

NOTICE:

Our Camera Does NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

More Information

Product Name

2MP 5MP Full HD PTZ IP Camera Outdoor Mini Speed Dome Cam IP Onvif 4X Zoom P2P 40m IR Night Vision

Description
