30X Optical Zoom 4K HD Ultra IP PTZ Camera Onvif 8MP Night vision 100M Security Surveillance with Pelco-D/P RS485 Control

Details

30X Optical Zoom 4K HD Ultra IP PTZ Camera Onvif 8MP Night vision 100M Security Surveillance with Pelco-D/P RS485 Control IP84R-4K30 1360905

Main Features:

Sony 1/2.5"CMOS, 8.51M Pixels,

Optical 30X Zoom, 3840x2160/P30, SSNR

Day/Night 0.004/0.0004Lux, f=6.0-180mm.

Night-vision distance 100-120M,light angle proportionable camera view

Integrated IP Encoder, Hi3516 HD 1080/P30/P60,

H.265, SD storage, RTSP, VLC protocol

Two-way Audio In/Out, CMS.

HD IP version, Basic PT configuration

Aluminum shell; pan 360°tilt -90~40°,

pan speed 0.2-80°/s, tilt speed 0.2-40°/s;

Accuracy ±0.025°. OSD menu

support Pelco-P/D and other kinds of protocols etc.

Support 3 grades lightning-proof, alarm function, internal temperature display and etc.

Technical Parameter:

Model: IP84R-4K30
Camera module
Sensor	Diagonal 7.20 mm ,Sony 1/2.5 CMOS 8.51 Pixel Color CMOS Image Sensor
effective pixels	8.51M pixels
Aspect ratio	16:9 (4K 3840x2160)
Visual lens	HD 30X Zoom Lens
Focal length (mm)	6~180mm
Zoom value	30X
effective pixels	4K
Iris	F1.64~4.6
Wide View of angle (WxH)	59°
Tele View of angle (WxH)	2.4°
Infrared confocal	Yes
Auto-focus	Yes
Back focal length (mm)	1
Minimum object distance (m)	0.1m(Wide) ~ 1m(Tele)
Pan Tilt Parameter
Rotation Range	Pan 360°continuously; Tilt 125°(-85°~+40°)
Pan Speed	0.2°~80°/S
Tilt Speed	0.2°~40°/S
Preset Speed	Pan 80°/S, Tilt 40°/S
3D Location	/
Zoom/Speed Proportion	Auto-speed proportionate to the length of focus
Position Accuracy	±0.025°
Preset	128, titles can be edited
Auto Flip	Tilt down to 85°, camera will auto run auto flip 180°
Auto Scan	355°programmable, 4 scan
Patterned Scan	4, each record time is not less than 180S
Display Zone	8 with titles, (support automatic scanning in zone)
Baud rate(Rs485)	2400/4800/9600/19200bps
ID Range	1~254
Alarm	Support
Decoder	Build-in
Power loss recovery	Support
PTZ position display	ON/OFF
Preset video freeze	Support (need camera module support)
OSD	Support
Temperature display	Survey the temperature inside of the PTZ
Park action	Preset/Pattern/Tour/Auto Scan
Timing task	Preset/Pattern/Tour/Auto Scan
Remote Controlling	RS485/422,Manchester, BI-PHASE,RJ45
IP Parameter
IP Encoder	High Definition-IP
Video Compression	H.264/H.265，Baseline/Main Profile/High Profile；H.265 Main Profile; MJPEG
Main Stream	19201080, 1-60（default 30）frame/S; 1280720, 1-60（default 30）frame/S;
Sub Stream	D1, 1-25 (30)frame/S; 640480, 1-25 (30)frame/S; 320240, 1-25 (30)frame/S
Video Bitrate	30~16384Kb/S continuously adjustable, CBR/VBR support
Information Display	Dome Title, Preset, Pattern, Scan, Zone, Zoom, Alarm, Date/Time
Data Storage	TFCard Support,up to 128GB
Storage Mechanism	Manual，Auto（Loop，Timing，Alarm，Motion Detection）
Alarm In	IO Detection，Motion Detection
Alarm Out	E-mail,FTP,ONVIF,GPIO
Internet Protocol	TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DHCP, FTP, NTP, SMTP
ONVIF support	Standard ONVIF2.4
GB28281	JVT
Private protocol	Hikvision (JVT)
Web browser	IE6.0 or Later,Support 10 users access simultaneously(MAX)
NVR support	HIKVISION, DAHUA, TVT, XM technology and etc.
Platform support	Milestone, NUUO, AXXON, Digifort Avigilon, Aimetis
SDK support	Windows&Linux
P2P support	TUTK,danale,Ichanoo（JVT）
General
IR View Range	100-120M
Electrical Protection grade	Built-in TVS4000V,lightning-proof,surge-proof and wave-proof
Woking temperature	-30℃~+55℃
Woking humidity	0~95°(non-condensation)
Ingress Protection	IP 66
Power consumption	Neutral product consumption≤40W；With extra freezing-proof consumption≤100W
Rate Votage	AC24V
Dimensions	330mmx197mmx436mm
Horizontal Turning redius	245mm
Net Weight	7.2 Kg
Gross Weight	8.7kg
Installation type	Up
Packed Dimension	52x43x26CM

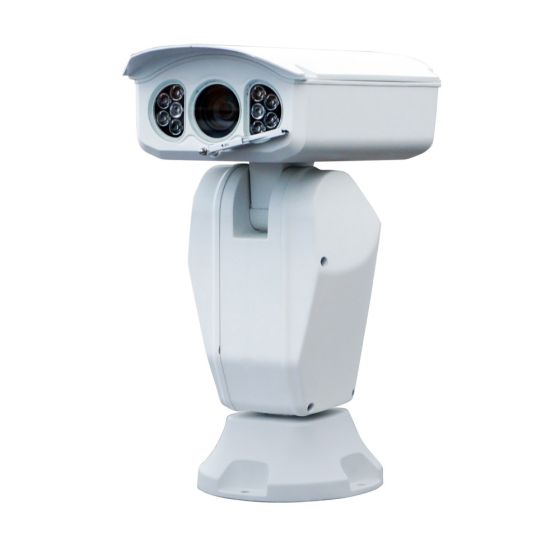

Product Photos:

84 Size Dimension
