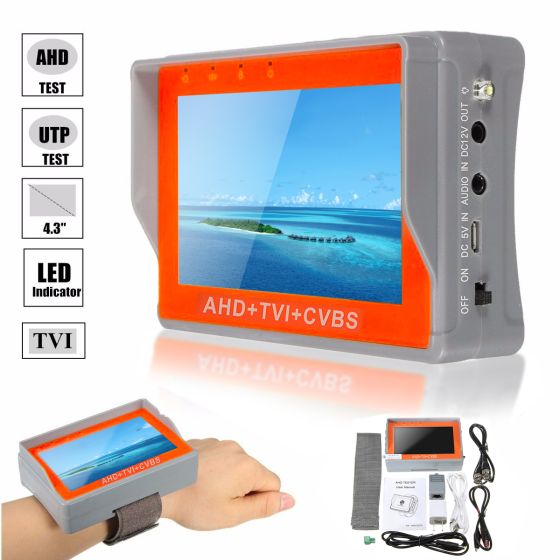

4.3 Inch HD AHD Camera Tester CCTV Tester Monitor AHD 1080P 960P 720P AHD Camera Testing UTP Cable T


4.3 Inch HD AHD Camera Tester CCTV Tester Monitor AHD 1080P 960P 720P AHD Camera Testing UTP Cable Test 5V/2A 12V/1A Output...

3 In 1 AHD TVI CVI CVBS 1080P CDD Camera Detector Tester Monitor Analog PTZ

Package Include:
1x CCTV Tester
1x Power Adapter(Free adapter will be sent according to your country)
1x Micro USB Cable
1x Video cable
2x Data cable
1x Wrist strap
1x UTP Adapter
1x User Manual

1.CCTV installation works best detection system is equipped with built-in lithium battery, video input, audio input, seven kinds of standard color bar output terminal and the DC power supply
2.Only palm-sized, easy to carry operations
3.Through DC power out enables user to inspect; correct camera or confirm installation.
4.4.3 " TFT screen, suitable for all kinds of places
5.With ADSL detection function
6.LED emergency lighting, 5 v1a emergency power output, for power supply, the mobile phone
7.Application:Camera quality inspecting; image of installation correcting; inspect and repair of monitor system circuit etc.

1. Model: IV7M

2. Video Test
Video System: NTSC/PAL Automatically recognize
Video Level: 1VPP
Display Screen: 4.3inch LCD 480*RGB*272(qvga)resolution, 64K color
Screen Adjustment: Brightness, contrast, color saturation adjustable, LCD backlight brigh tness adjustable
Video Input/Output: 1 channel BNC Video IN

3.HD AHD Test
SD Signal Format: NTSC, PAL
HD Video Signal: HD AHD
Resolution: D1,720P, 960P, 1080P
Signal Level: 1Vpp

4. Output:
DC 12V/1A for temporary power

5. Audio Test: Input audio signal, and play on the internal speaker

6. UTP Cable Test:
Cable Test: Test any two or more cables, the screen shows the connection sequence and test head number
LED: 35lm LED light, an emergency light

7. Power:
External Power Supply: DC 5V/2A
Battery-powered: Built-in 3.7V li-polymer battery, cappacity 2600mAh
Charge: Charge 3-4 hours for 8 hours working
Power Saving Features: Low power consumption, automatic power off, real-time display of battery level

8. System Setting:
Operation Setting: Chinese, English user selectable
Auto power off: Disable/5-60minutes

9. Working Environment and Specifications:
Working Temperature: -30 ~ +70°
Working Humidity: 30% ~ 90%


More Information
SKU 32861773521
Weight 1.000000
With Built-in Battery No
