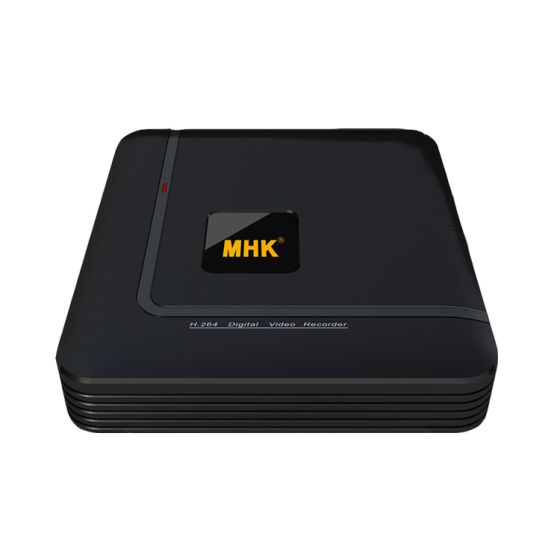

4 HD DVR Surveillance DVR 4-channel D1 mobile remote cloud

Type   No.

MHK-S1004V

System

Host processor

Industrial embedded microcontroller chip Hi3515A Huawei Hass

Operating system

Embedded LINUX operating system

System Resources

Simultaneous multi-channel real-time video, real-time playback of multi-channel, multi-channel operation over the network, USB backup

Interface

User interface

16 -bit true color graphical menu interface, mouse support

Screen display

1/4 screen

Video

Video Standard

PAL (625 lines, 50 fields / s); NTSC (525 lines, 60 fields / s)

Image Coding

H.264(High Profile)

Monitoring quality

Monitor: D1; VGA: HD

Playback quality

D1/Half-D1/CIF/QCIF

Coding ability

4 -channel D1 real time

Decoding capability

Two -way real-time D1 + 2D1 non-real

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set

(Only local channels)

Audio frequency

Audio Compression

G.711A

Talkback

Stand by

Recording and Playback

Recording mode

Manual > Alarm > Motion Detection > Timing

Local Playback

Multi-channel playback ( 1-4 road)

Video Search

Time point search, calendar search, event search, channel retrieval

Storage and Backup

Each occupied
disk space

Video: CIF 4 ~ 5G / day * channel, D1 8 ~ 10G / day * channel;
 Audio: 691.2M / day * Channel

Recordings are saved

The hard drive, network

Backup

Network backup, USB mobile hard disk

Interface

Video Input

4 -way BNC (1.0Vp-p,

75 Z)

Video output

1 Road BNC (1.0Vp-p, 75Ω), 1 channel VGA

Loop-through output

Does not support

Audio Input

One -way RCA (200-2800mV, 30KΩ)

Audio output

One -way RCA (200-3000mV, 5KΩ)

Alarm Input

No

Alarm Output

No

Network Interface

RJ45 10M / 100M adaptive Ethernet port

PTZ control

No

USB interface

2 USB2.0 ports (two front interface reserved)

Hard disk interface

1 SATA interface (maximum support for each 3T)

Other

Power supply

12V / 2A

Power

<5W (without hard drive)

Working temperature

0℃-＋55℃

Humidity

10 % -90 %

Atm

86kpa－106kpa

Size

Weight
