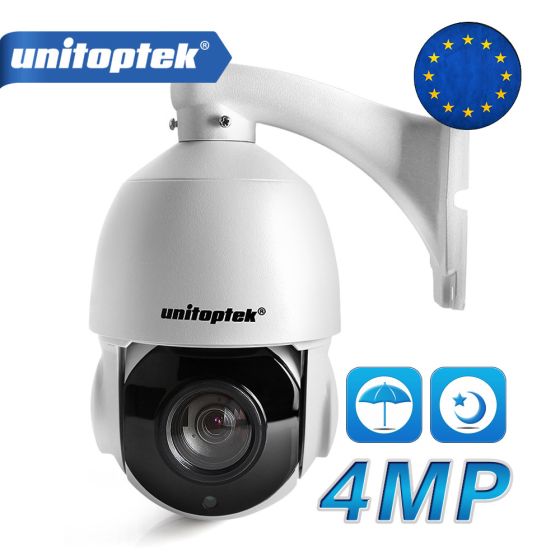

4 Inch HD 4MP Mini PTZ IP Camera Outdoor Network Onvif Speed Dome 30X Zoom PTZ Camera 50m IR Night Vision CCTV Surveillance

Details

4 Inch HD 4MP Mini PTZ IP Camera Outdoor Network Onvif Speed Dome 30X Zoom PTZ Camera 50m IR Night Vision CCTV Surveillance Cam

4MP MINI PTZ IP CAMERA

SUPPORTS 360 DEGREE AUTOMATIC SCANNING;SUPPORT TWO POINTS BETWEEN CRUISE

01 IP Camera

USAGE SCENARIOS

CAN BE USED A VARIETY OF ENVIRONMENTS

02 30X Zoom PTZ IP Camera

4MP 360 DEGREE

SUPPORTS TWO POINTS BETWEEN CRUISE

03 30X Zoom IP Camera

IP66 WATERPROOF

AEROSPACE GRADE METAL SHELL

04 PTZ IP Camera

30X (20X OPTICAL + 10X DIGITAL ZOOM)

ANYTIME,ANYWHERE TO SEE WHERE YOU WANT TO SEE

02 CCTV Surveillance Camera 01 PTZ IP Camera

MINI 4 INCH

MINI SIZE,IT IS SUITABLE FOR A VARIETY OF ENVIRONMENTS

07 CCTV IP Camera

SUPPORT P2P

No matter how far away can see

08 Speed Dome IP Camera

CONNECTION METHODS

09 4MP IP Camera

Quick Connect Complete The Installation

Simple installation computer step 4

10 4MP PTZ IP Camera 11 Security Camera 12 4MP IP Camera 13 PTZ Camera

Six steps to complete the installation

Ten seconds to complete mobile client Settings,three steps to complete the installation

14 Mini PTZ IP Camera

Feature:

*4 inch HD-IP Medium Speed Dome Camera

*4.0 Mega Pixel (2592x1520)

*Varifocal lens:4.7~94mm,30X (20X Optical+ 10X Digital Zoom)

*6pcs Array LED Lights, Effective distance up to 50m

*Rotation Range : Horizontal 0°~360° unlimited rotation; Vertical 0°~90°

*Rotation Speed: Horizontal 60°/S; Vertical 40°/S

*Supports 360 degree automatic scanning ; Support two points between cruise;

*Support preset point; Rotational speed can be adjusted

*Day/Night Mode Auto-Switch

*Metal Casing, Waterproof IP66

*Weight: 3Kg

*Mobile Phone View APP: HiSee

Specification :

Model		UTK-HD55F-4MP-30X
Camera	Image Sensor	1/2.7" 4.0 Megapixels CMOS
	Effective Pixels	2592x1520
	Output Pixel	2592x1520@22fps; 2304x1296@30fps;
	Output Pixel	19201080@30fps; 1280960@30fps; 1280*720@30fps
	Video Compression	H.265/H.264 / MJPEG
	Min. illumination	Color: 0.1 Lux / B/W: 0 Lux (IR ON)
	Day/Night	IR-CUT
	Electronic Shutter	1/1 ~ 1/30000s
	S/N Ratio	>50dB
	Focal Length	4.7~94mm,30X (20X Optical+ 10X Digital Zoom)
	Iris Control	Auto
	Focusing	Auto/Manual/One-time auto-focus
	Zoom Speed	4S
	Angle of View	68.5°(wide)~4.2°(tele)
	Minimum Working Distance	100mm(wide) ~1000mm(tele)
PTZ	Pan range	360° endless
	Tilt range	0°~90° auto flip 180°
	Manual Pan speed	1~60°/s
	Manual Tilt speed	1~40°/s
	Preset Points	220
	Guard Points	Max.16 points, dwell time user selectable
Infrared	LEDs	6 pcs Array
	IR Distance	Up to 50 meters
	Infrared Control	Near IR LED+Far IR LED
Function	Backlight Compensation	Open/Close
	White Balance	Auto
	Exposal Mode	Auto
	WDR	Support
	Gain Setting	Support
	Noise Reduction	Support
	Vision Control	Support
	Privacy Masking	Support
	Power Off Memory	Support
Network	Ethernet	10Base -T, /100Base-TX, RJ45 Connector
	Protocol	HTTP,TCP/IP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE…
	Compatibility	ONVIF
	Transmission	Through clouds
	Browser	IE8+
	Smart Phone	IPhone, iPad, Android, Android Pad
General	Working Humidity	≤95% Non Condensing
	Waterproof	IP66
	Temperature	-40°C ~ +60°C
	P2P	HiSee
	Lightning Protection	Transient voltage 6000V
	Size(W×D×H)(mm)	225245200
	Weight(kg)	3Kg

Packing list:

1 x 4 Inch Mini 4MP PTZ IP Camera

1 x User Manual

1 x CD

1 x Screws

1 x Power adapter

1 x Camera Bracket(Standard Wall)
