433MHz Wireless Remote Control Switch 2CH Relay Receiver Module + Learning Code 1527 Transmitter rem


433MHz Wireless Remote Control Switch 2CH Relay Receiver Module + Learning Code 1527 Transmitter remote control Garage Door Open...


*The transmitter supports Learning Code(1527) Common Chip, such as, PT1527, EV1527, etc. Compatible with the most of 1527 Remote Control Relay Receiver Panel.

*The receiver module supports Multiple Working Mode: Momentary, Toggle and Latching Mode.

*The receiver module support storing the quantity of remote control: 25 Pcs(NOTE: The system can only store 25 pcs of remote controls, if the remote get more than 25 pcs, the initial remote control will be lost).

*Stable circuit, high accurate and high-effective, individuation and humanization design, bringing you much convenient.

*Adopts imported high-frequency triode, owning 10mW Transmitting Power.

*Widely Use: For 433Mhz RF Receiver 1527 Learning Code, Perfect Suitable for controlling Garage Doors, Electronic Gates, Electrical Appliances, Motorcycle Alarm, Car Sunroofs,  Heating Systems, etc.



1.This remote control transmitter only support the learning code (1527) of the receiver

2.This remote control transmitter can not be programmed.

3.We don\'t offer retail package, but we will pack it well before shipped out.



  • Product Type: 2-Channel Remote Control Transmitter + Receiver Module
  • Operating RF Frequency: 433MHz
  • Coded System: 1527 Learning Code
  • RF Working Mode: Superheterodyne Reception
  • Modulation Mode: ASK
  • For Transmitter:
  • Working Voltage: DC 6V
  • Working Current: 12mA
  • Transmitting Power: 10mW
  • Wireless Operating Distance: 50m(Free Space)
  • Transmission Rate: 50 ~ 60KHz
  • Frequency Deviation: ±0.2MHz
  • Color: Black
  • Main Item Size: 6.2 * 2.9 * 1.2cm / 2.44 * 1.14 * 0.47in
  • Main Item Weight: 25g/0.98oz
  • Package Size: 6.5 * 3.2 * 1.5cm / 2.55 * 1.25 * 0.59in
  • Package Weight: 30g/1.05oz
  • For Receiver Module:
  • Model: KR2202-4
  • Working Mode: Momentary, Toggle and Latching Mode.
  • RF Frequency: 433MHz
  • Input Voltage: AC 85V~250V
  • Standby Current:<8.5mA
  • Receiving Sensitivity: >97dbm
  • Remote Control Range: >50m (Free Space)

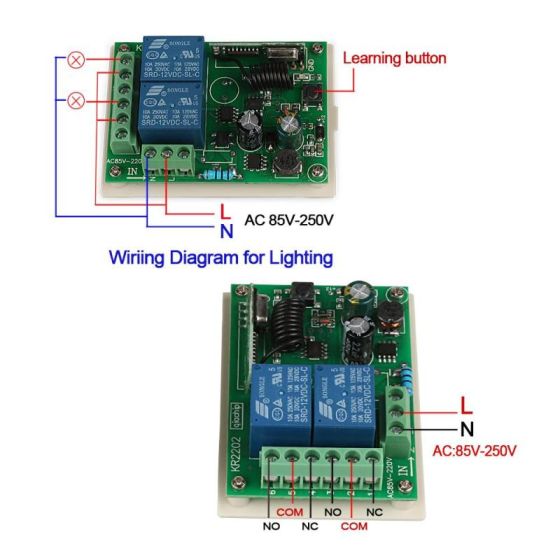

  • Wired Connection Way: Fixed Wiring Pillar
  • Output Terminal: NO, COM, NC
  • On-off Output (Wire Port): NO(Normal Open), COM(Commonality End), NC(Normally Closed End).
  • Color: Green (PCB Board), White (Outside Shell)
  • Circuit Board Size: 7.3 * 5.2 * 2.5cm/ 2.87 * 2.0 * 0.98in
  • Circuit Board Weight:40.6g/1.43oz
  • Package Size:7.5 * 5.5 * 3.0cm / 2.95 * 2.16 * 1.18in
  • Package Weight:57.2g/2.0oz


Package List:

1 * Remote Control Transmitter (Battery is included)

1 * KR2202-4 Dual Channel Remote Control Receiver (Include Outside Shell)
