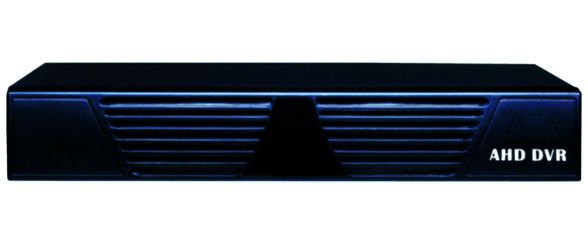

4CH AHD DVR TCP/IP for CCTV Security Surveillance 720P H.264 HDMI+VGA
4CH AHD DVR TCP/IP for CCTV Security Surveillance 720P H.264 HDMI+VGA
4 channel synchronous playback in real time
★ embedded linux operating system
★ H.264 video compression format
★ 720P HD resolution image codec
★ backward compatible with standard definition analog video input
★ 27 language menu, adapt to a wider range of user groups
★ Support 3G, PPPOE dial-up, support for a key Internet connection
★ VGA / HDMI synchronous output
★ graphical user interface, easy to understand
★ IE browser, centralized monitoring and centralized management, monitoring phone
★ U disk, removable hard disk, network backup
★ more user-defined hierarchical management authority
Model | DN9904 |
operating system | Embedded LINUX Operating System |
Operation method | mouse |
System Language | English, Simplified Chinese, Traditional Chinese, Russian, French, Italian, German, Spanish, Portuguese, Turkish, Thai, Greek, Hebrew, Vietnamese, Bulgarian, Czech, Danish, Dutch, Finnish, Hungarian, Indonesian, Lithuanian, Norwegian, Persian, Polish, Swedish, Arabic |
Video format | PAL / NTSC |
Video Input |
4, BNC interface, support for AHD / Mixed ordinary analog video input |
Audio frequency | 1 channel audio input the RAC , 1 audio output |
Video Output | VGA × 1, the HDMI × 1, the BNC × 1, synchronous output |
VGA / HDMI | 1024 × 768 , 1280 × 1024,1280 × 720,1360 × 768,1440 × 900,1920 × 1080 |
Preview control | First, the four-screen display mode, support for electronic enlarged, color, brightness, contrast, color adjustment, the picture block, BNC output margin adjustment screen polling |
Video Compression | H.264 |
Video mode | Manual recording, motion detection triggered recording, schedule recording, continuous recording |
Video resolution / frame rate | The PAL: (720P) 1280 × 720 (960) / 25 frames / sec / channel; the NTSC: (720P) 1280 × 720 (960) / 30 frames / sec / channel |
Stream | Dual-stream, bit rate adjustable |
Playback Control | Electronic enlarged, × 2, × 4, ×. 6 times as fast forward, rewind, single-frame playback, pause / play, supports four simultaneous playback |
Alarm is triggered | Motion detection, video loss, hard disk abnormal |
The internet | RJ45, supports FTP (shots), NTP (Network Time Protocol), 3G (wireless dial-up), PPPOE (broadband dial-up), SMTP (e-mail); IE, client, CMS (centralized management) and on-site monitoring VCR playback and management, own DNS, P2P network penetration, a key Internet |
Grab | Sent to the mailbox and FTP server that supports timed capture, motion detection capture |
PTZ control | RS485, support for multiple protocols, supports presets |
Hard disk interface | SATA×1(4TB) |
USB Interface | USB2.0×2 |
Data Backup | USB mobile device backup video data, AVI / DAT file format |
Phone monitoring | Support phone preview |
Power Adapter | DC:12V |
Practices | Multi-operation |
Ambient temperature | 0℃--55℃ |
size | 258mmX190mmX42mm |
Product Name | 4CH AHD DVR TCP/IP for CCTV Security Surveillance 720P H.264 HDMI+VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Description | 4 channel synchronous playback in real time ★ embedded linux operating system ★ H.264 video compression format ★ 720P HD resolution image codec ★ backward compatible with standard definition analog video input ★ 27 language menu, adapt to a wider range of user groups ★ Support 3G, PPPOE dial-up, support for a key Internet connection ★ VGA / HDMI synchronous output ★ graphical user interface, easy to understand ★ IE browser, centralized monitoring and centralized management, monitoring phone ★ U disk, removable hard disk, network backup ★ more user-defined hierarchical management authority
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | XJ9904 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 2.000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
With Built-in Battery | No |
