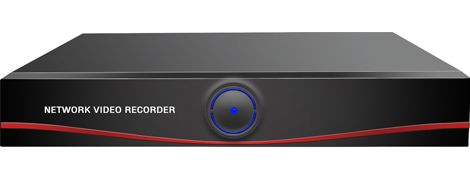

4CH NVR for CCTV Security ONVIF 1080P TCP/IP HDMI Output
graphical user interface and Support VGA, HDMI output synchronization
graphical user interface
● Support VGA, HDMI output synchronization
● Multi-user rights management classification
● supporting CMS, WEB management platform
● system uses an embedded Linux operating system
● support cloud connections penetration, a key Internet connection
● Support mainstream connecting third-party ONVIF protocol IPC
● Support 720P, 1080P IPC video access, video and real-time preview
● Support phone connection
● Multi-language menu, adapt to a wide range of user groups
● simple, adaptive network, the device is automatically added to the search for and connect to the network of IPC
| model | DN7204 |
| The host processor / operating system | VC0736STBA / Embedded LINUX Operating System |
| Operation method | mouse |
| System Language | English, Simplified Chinese, Traditional Chinese, Russian, French, Italian, German, Spanish, Portuguese, Turkish, Thai, Greek, Hebrew, Vietnamese, Bulgarian, Czech, Danish, Dutch, Finnish, Hungarian, Indonesian, Lithuanian, Norwegian, Persian, Polish, Swedish, Arabic |
| Video Input |
4-channel network video input, support 1080P or 1080P video the following resolutions |
| Audio frequency | Network audio output, no hardware audio output |
| Video Output | VGA × 1, the HDMI × 1 synchronous output |
| VGA / HDMI | 1024 × 768 , 1280 × 1024,1280 × 720,1360 × 768,1440 × 900,1920 × 1080 |
| Preview control | First, the four-screen display mode, support for electronic enlarged, color, brightness, contrast, color adjustment, the picture polling |
| Video Compression | H.264 |
| Video mode | Manual recording, continuous recording |
| Video resolution / frame rate |
(720P) 1280 × 720 /25 frames / sec / channel; (720P) 1280 × 720/30 frames / sec / channel (960H) 960 × 576/25 frames / sec / channel; (960H) 960 × 480/30 frames / sec / channel D1 VGA CIF QCIF 25FPS/30FPS |
| Stream Control | Maximum support 4-channel sum 12M |
| Playback Control |
Electronic enlarged, × 2, × 4, ×. 6 times as fast forward, rewind, single-frame playback, pause / play, support 4-way synchronous playback 720P 1080P playback all the way |
| Alarm is triggered |
Video loss, hard disk abnormal |
| The internet | RJ45, NTP (Network Time Protocol), 3G (wireless dial-up), PPPOE (broadband dial-up), IE, client, CMS (centralized management) on-site management and monitoring and playback video recorder, comes with DNS, P2P network through through, a key Internet, support ONVIF protocol network connection |
| PTZ control | Support Hikvision network control protocols |
| Hard disk interface | SATA×1≤4TB |
| USB Interface | USB2.0×2 |
| Data Backup | USB mobile device backup video data, AVI / DAT file format |
| Phone monitoring | Support mobile phone monitoring (iPhone, Android) |
| Power Adapter | DC：12V |
| Practices | Multi-operation |
| Ambient temperature | 0℃--55℃ |
| Dimensions mm | 256x220x43 |
| Description | graphical user interface ● Support VGA, HDMI output synchronization ● Multi-user rights management classification ● supporting CMS, WEB management platform ● system uses an embedded Linux operating system ● support cloud connections penetration, a key Internet connection ● Support mainstream connecting third-party ONVIF protocol IPC ● Support 720P, 1080P IPC video access, video and real-time preview ● Support phone connection ● Multi-language menu, adapt to a wide range of user groups ● simple, adaptive network, the device is automatically added to the search for and connect to the network of IPC
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | XJ7204 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 2.000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No |
