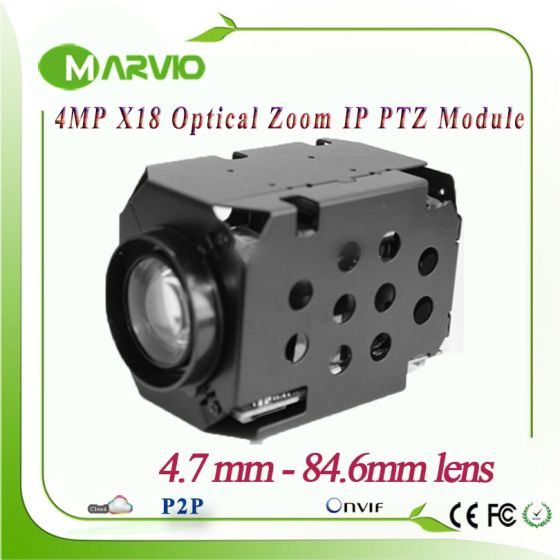

4MP 2592X1520 IP Speed Dome Network PTZ Camera Module X18 Optical Zoom 4.7-84.6mm lens RS485 / RS232 Support PELCO-D/PELCO

Dear Manager,

Please kindly check our own developed network PTZ module, we provide further customized development and ODM Service for global customers. Please feel free to contact us if you have any more comments, thanks

We have 1.3MP/2MP/4MP 4X zoom mini ptz module and 2MP 10X mini ptz dome and 2MP/4MP 18X PTZ and 33X Starlight Sony IMX291 Sensor 33X PTZ Module and 7-300mm long lens ptz module, welcome your consult

Features:

* 4MP Megapixel CMOS

* 18X zoom(4.7-84.6mm optical zoom) Optical Zoom

* Dual stream encoding (H.264/H.265)
* Support multi kinds of network connection methods:ONVIF, TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP etc.
* Support IE browser you can use and control the web cam anywhere in the world
* Online detection, continuously dialing function while the line is broken
* Visit IP camera through domain name no need to IP address
* High image & video quality
* Simple and quick to setup, friendly user interface
* Supported language: English/Chinese/Russian/Japanese etc 28 language

18X live show

Character:

good Compatibility, support ONVIF protocol,is compatible with dozens of NVR; private protocol access Hikvision NVR and 4200 platforms, to support CMS /UC/network monitoring and management software;stability, integrated IP encoding function, small size easy to install and remote maintenance. Dual streaming/4MP/build-in IR-Cut/256 preset positions/18x optical zoom / focus quickly. Cost-effective, can be used for mini Speed dome/Pan Tilt/ conference Machine / unmanned aircraft

Specification:

Model	MV-4MPM03
Application	used for Speed dome/Pan Tilt/ conference Machine / unmanned aircraft
Video parameter	Sensor type	4MP CMOS Sensor
	Max Resolution	2592X1520
	scanning mode	Line by line scan
	Min illumination	Color:0.2Lux F1.2,B/W:0.02Lux F1.2
	electronic shutter	Auto/manual,(1/5-1/50000 second)
	Day and Night	Auto/manual
	S/N Ratio	>50DB
Encoding parameter	Compression standard	H.264/H.265
	Output rate	32Kbps-16Mbps
	frame rate	15FPS(2592X1520) 25fps(2048*1536)
	data rate	Main/sub
	Audio	G.711
Lens	focus length	4.7-84.6mm
	zoom	X18
	zoom Speed	2 second
	FOV(H)	53.2Deg-5.65deg(wide tele)
	The minimum object distance	10mm(W)-1000mm(T)
Function	BLC	Auto/manual
	Mirror image	horizontal/vertical/horizontal+vertical/off
	preset	256
Output ports	Network	RJ45 10/100M Auto adaption Ethernet
	Control protocol	RS485/RS232, Auto adaption PELCO-D,PELCO-P,hikvision,DAHUA
	baud rate	2400/4800/9600/19200
	communication protocol	two Serial ports, compatible with Sony Visca protocol
	Audio	1ch in,1ch out
	Alarm	1ch in,1ch out
Network parameter	Network protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPOE,SMTP,NTP,UPnP,Onvif.S28181
others	Power	DC12V
	environment	-20~60deg
	Dimension	88.56050MM
	Weight	200G
